NSN 5925-00-503-7516 NJL631150, CB5287, J3150

Product Details | CIRCUIT BREAKER

5925-00-503-7516 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.

Part Alternates: NJL631150, CB5287, J3150, JA3150WADAPTER, K2511B, K251-1B, TJ236150WL, 371D957G16WADAPTER, 46A8101G19, 5925-00-503-7516, 00-503-7516, 5925005037516, 005037516

Electrical and Electronic Equipment Components | Circuit Breakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-503-7516	00136 ( CIRCUIT BREAKER )

Drawings & Photos | NSN 5925-00-503-7516

Cross Reference | NSN 5925-00-503-7516

Part Number	Cage Code	Manufacturer
371D957G16WADAPTER	89946	EATON CORPORATION
46A8101G19	79500	WESTINGHOUSE ELECTRIC CORP
46A8101G19	89946	EATON CORPORATION
CB5287	09017	EDO
J3150	79500	WESTINGHOUSE ELECTRIC CORP
J3150	89946	EATON CORPORATION
JA3150WADAPTER	89946	EATON CORPORATION
K251-1B	60969	GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL
NJL631150	21810	CHALLENGER ELECTRICAL EQUIPMENT CORP
TJ236150WL	60969	GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5925-00-503-7516

Compare

Related Products | NSN 5925-00-503-7516

5925-00-503-8180, 5925-00-503-8505, 5925-00-503-9121, 5925-00-503-9531, 5925-00-503-9534

Technical Data | NSN 5925-00-503-7516

Characteristic	Specifications
POLE QUANTITY	3
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE	150.0 AMPERES AC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS	600.0 AC ALL LOCATIONS
FREQUENCY IN HERTZ	60.0 ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS	15000.0 AC ALL LOCATIONS
CIRCUIT PROTECTION TYPE	OVERCURRENT ALL LOCATIONS
TRIP RELEASE METHOD	THERMAL-MAGNETIC ALL LOCATIONS
TRIP RELEASE AMBIENT TEMP RATING	40.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC	INSTANTANEOUS AND TIME DELAY ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT	333.0 ALL LOCATIONS
RESET METHOD	MANUAL
MAIN CONTACT TRIPPING MECHANISM TYPE	TRIP FREE

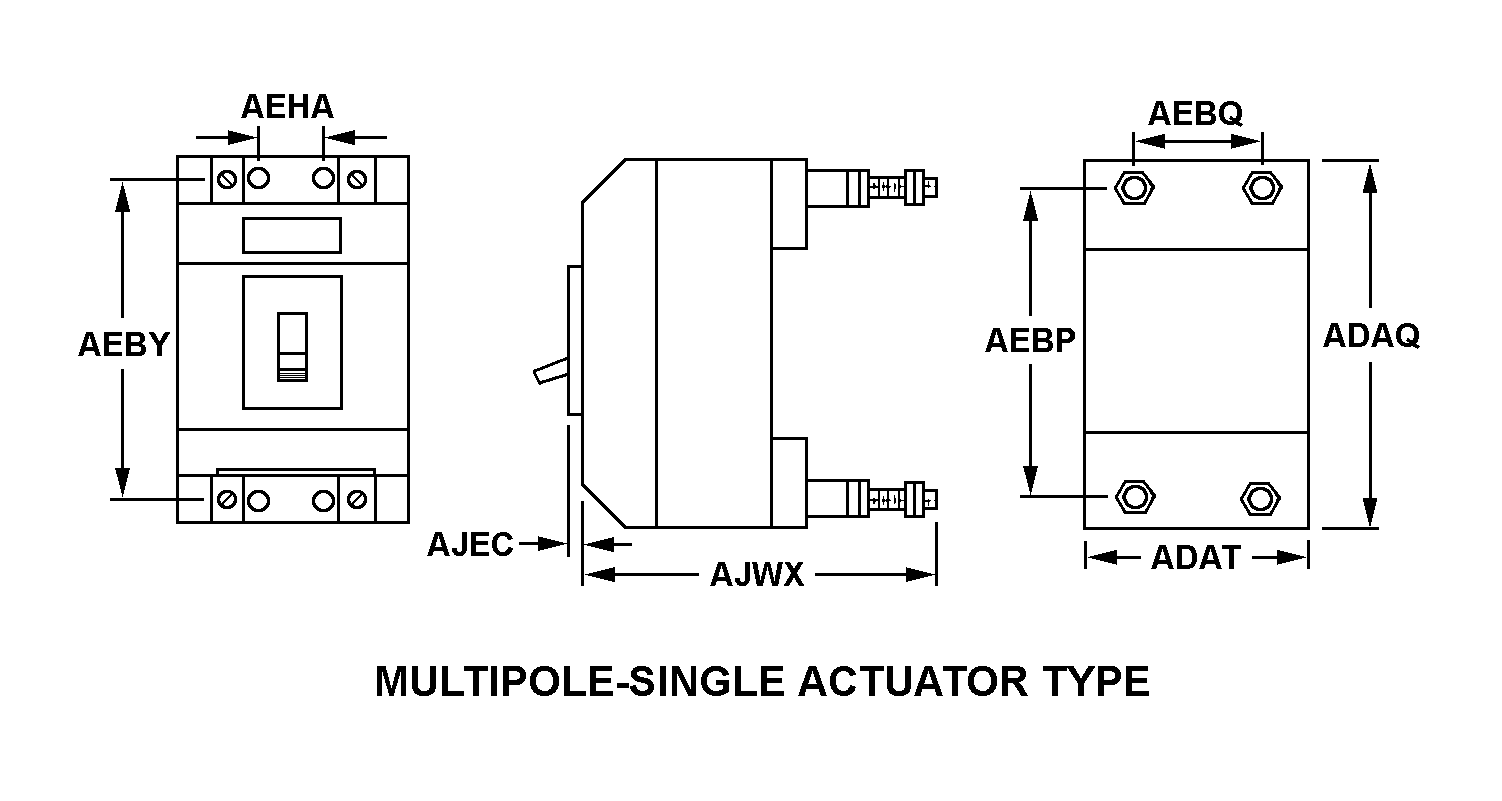

BODY STYLE	10B MULTIPOLE-SINGLE ACTUATOR TYPE
BODY LENGTH	10.125 INCHES NOMINAL
BODY WIDTH	8.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH	9.125 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH	5.500 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH	7.250 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	2.750 INCHES NOMINAL
BOSS HEIGHT	0.219 INCHES NOMINAL
MOUNTING SURFACE TO TERMINAL END DISTANCE	3.812 INCHES NOMINAL
CASE MATERIAL	PLASTIC
MOUNTING FACILITY TYPE AND QUANTITY	4 UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER	0.312 INCHES NOMINAL
MANUAL ACTUATOR TYPE AND QUANTITY	1 TOGGLE
ACTUATOR FUNCTION	TRIP-RESET
ACTUATOR POSITION DESIGNATION	AT POLE TWO
TERMINAL TYPE AND QUANTITY	6 BUS BAR
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED	MOISTURE RESISTANT
III ARC QUENCHING METHOD	AIR
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE
III FRAGILITY FACTOR	MODERATELY RUGGED
