NSN 5925-00-360-3870 TEC36100, TEC36100XL, 18TAMI
Product Details | CIRCUIT BREAKER
5925-00-360-3870 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: TEC36100, TEC36100XL, 18TAMI, 5925-00-360-3870, 00-360-3870, 5925003603870, 003603870
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 FEB 1974 | 00-360-3870 | 00136 ( CIRCUIT BREAKER ) |

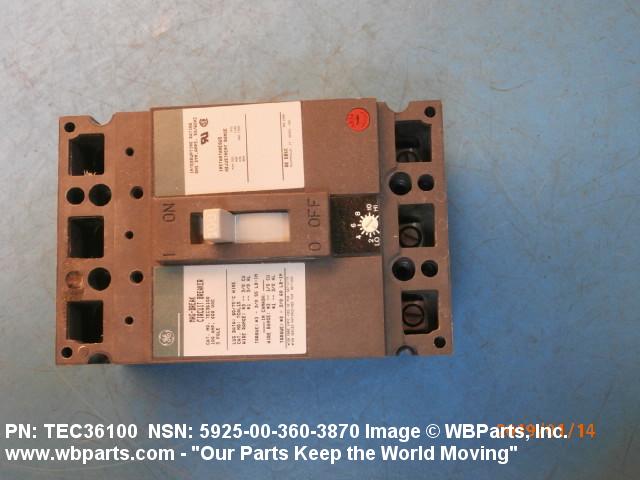

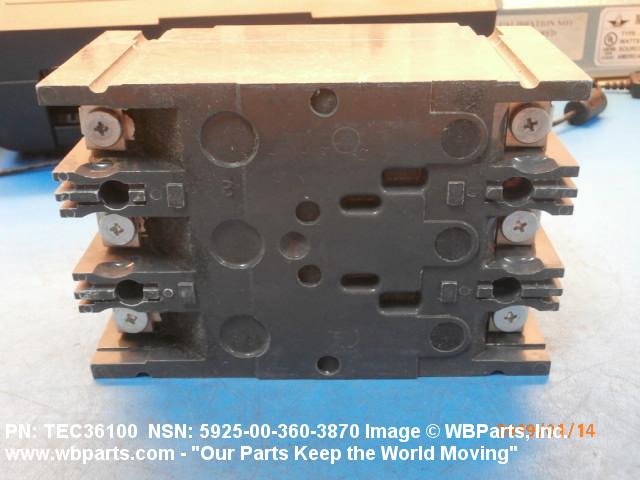

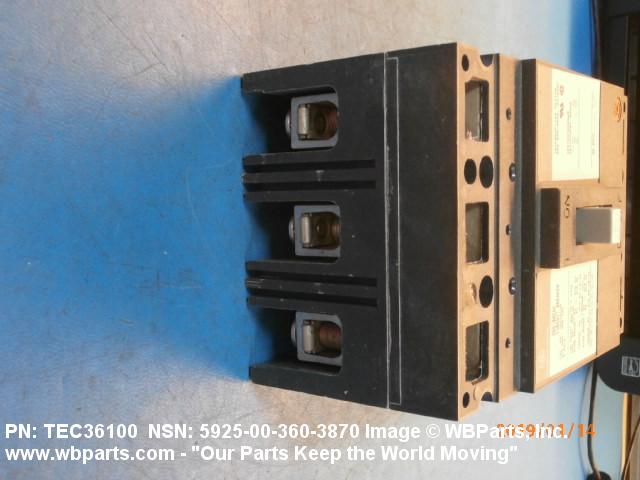

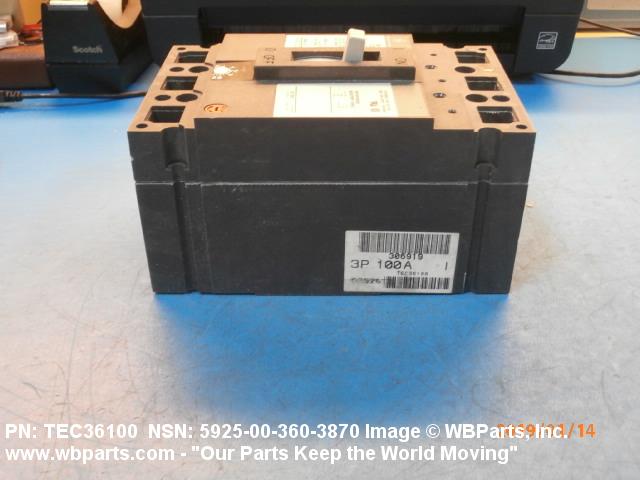

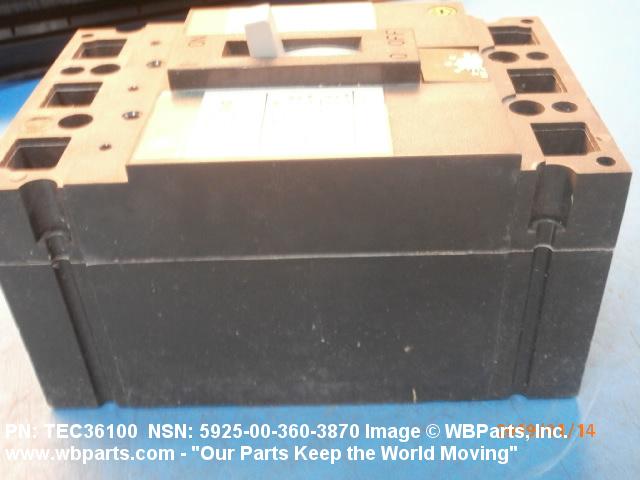

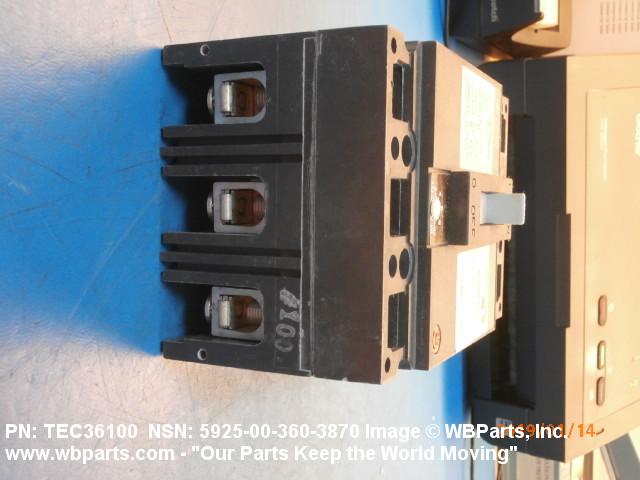

Drawings & Photos | NSN 5925-00-360-3870
Demand History | NSN 5925-00-360-3870
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TEC36100 | 2019-04-98 | 3 | us |
| 5925-00-360-3870 | 2019-01-09 | 1 | United States |
| TEC36100 | 2018-10-283 | 1 | us |
| TEC36100 | 2013-08-226 | 30 | US |
| 5925-00-360-3870 | 2008-03-79 | 70 | DIBBS |
| 5925-00-360-3870 | 2007-09-254 | 157 | DIBBS |
Cross Reference | NSN 5925-00-360-3870
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 18TAMI | 23826 | SIEMENS ENERGY AND AUTOMATION INC SIEMENS FURNAS CONTROLS DIV |
| TEC36100 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| TEC36100 | 60969 | GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL |
| TEC36100XL | 60969 | GENERAL ELECTRIC CO ELECTRICAL DISTRIBUTION AND CONTROL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-360-3870
Related Products | NSN 5925-00-360-3870
Technical Data | NSN 5925-00-360-3870
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 3 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 100.0 AMPERES AC ALL LOCATIONS |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 600.0 AC ALL LOCATIONS |
| FREQUENCY IN HERTZ | 60.0 ALL LOCATIONS |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 15000.0 AC ALL LOCATIONS |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC ALL LOCATIONS |
| TRIP RELEASE AMBIENT TEMP RATING | 40.0 DEG CELSIUS NOMINAL ALL LOCATIONS |
| TRIP RELEASE CHARACTERISTIC | INSTANTANEOUS AND TIME DELAY ALL LOCATIONS |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 120.000 MAXIMUM AT 200 PCT ALL LOCATIONS |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 130.0 ALL LOCATIONS |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |
| BODY STYLE | 11B MULTIPOLE-SINGLE ACTUATOR TYPE |

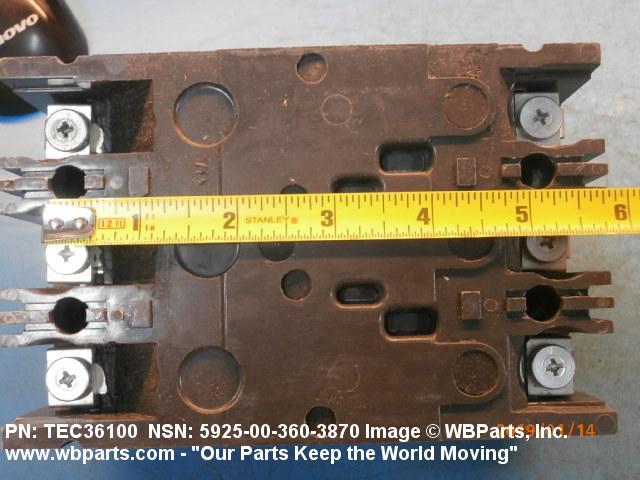

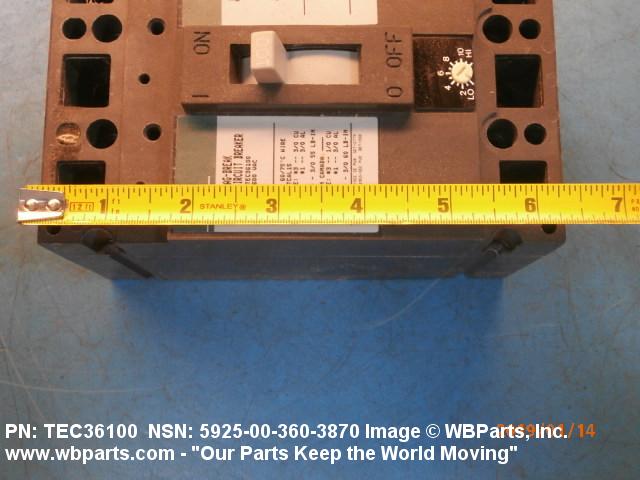

| BODY LENGTH | 6.312 INCHES NOMINAL |

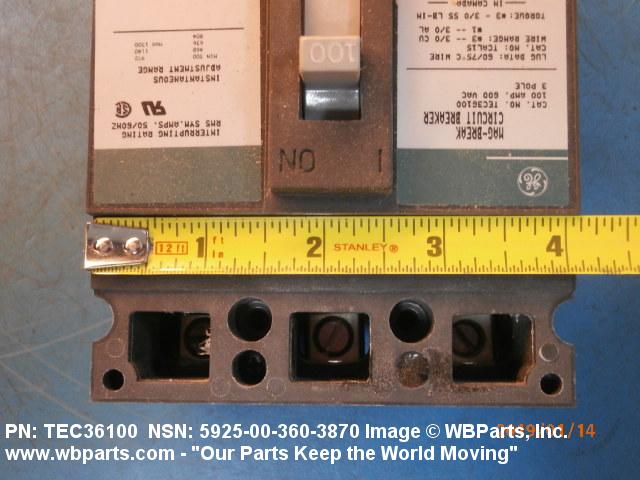

| BODY WIDTH | 4.125 INCHES NOMINAL |

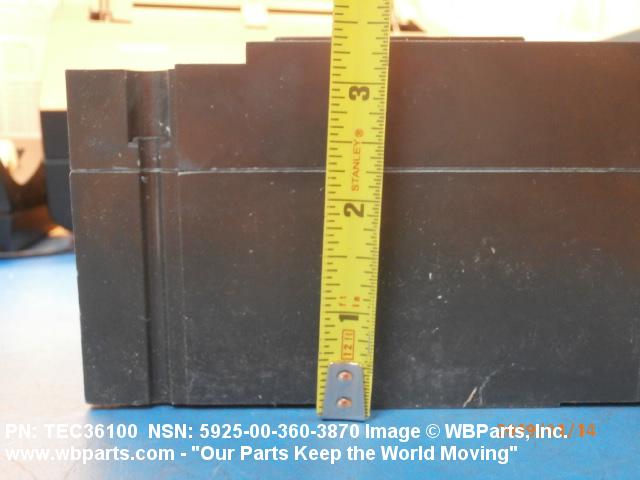

| BODY HEIGHT | 3.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 5.875 INCHES NOMINAL |

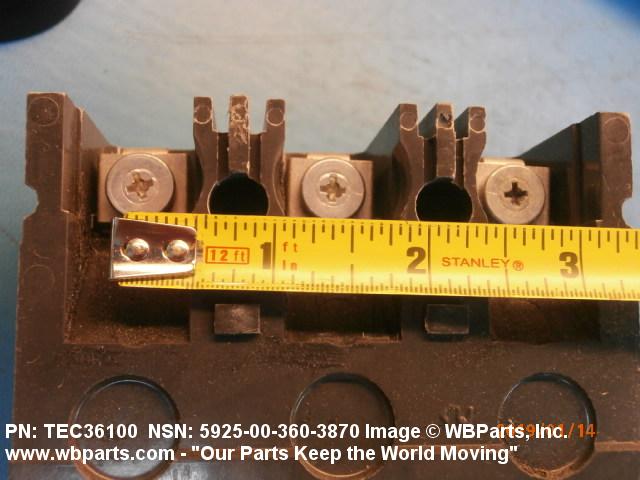

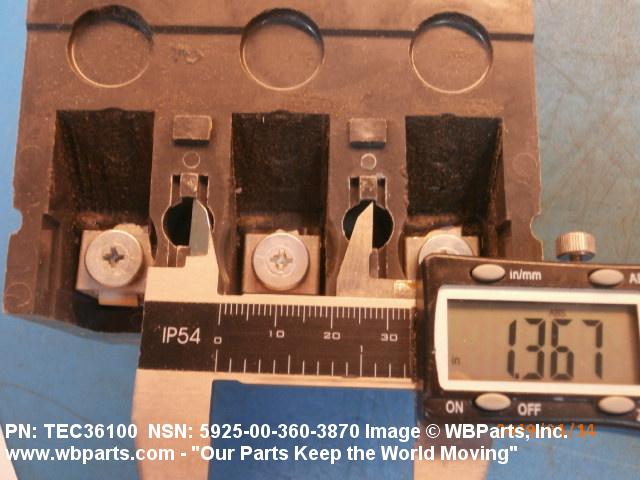

| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.375 INCHES NOMINAL |

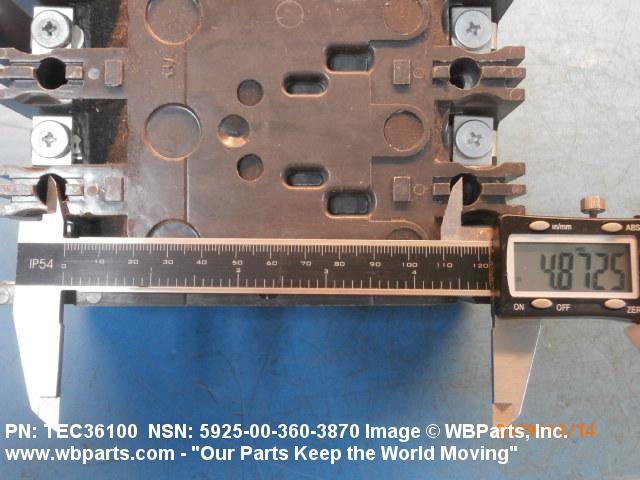

| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 4.875 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.375 INCHES NOMINAL |
| BOSS HEIGHT | 0.250 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |

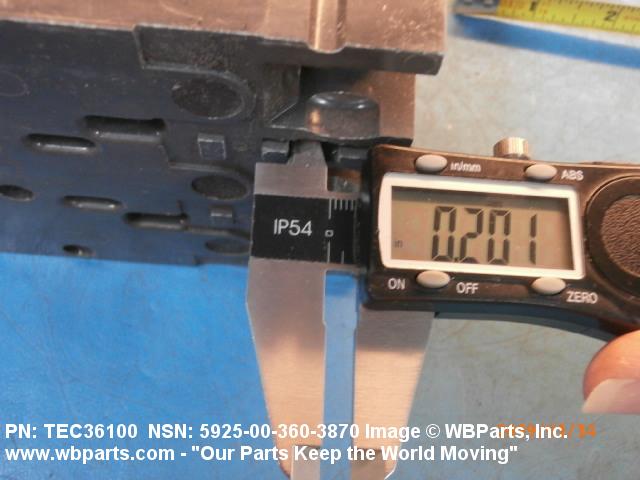

| UNTHREADED MOUNTING HOLE DIAMETER | 0.203 INCHES NOMINAL |

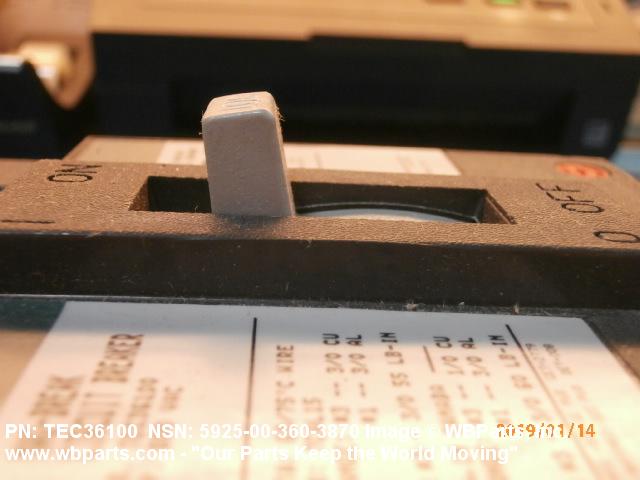

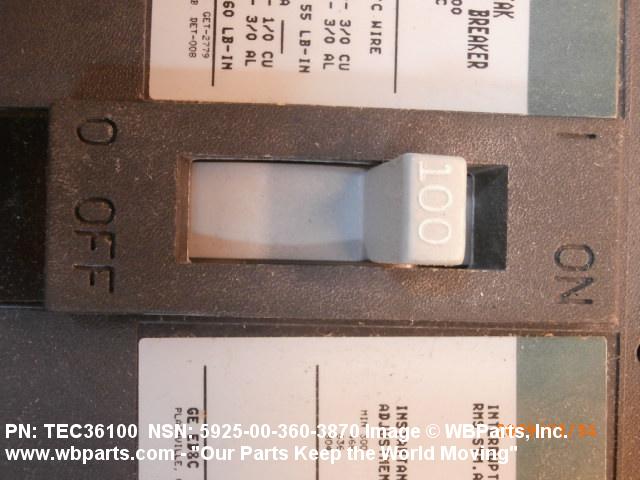

| MANUAL ACTUATOR TYPE AND QUANTITY | 1 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT POLE TWO |
| TERMINAL TYPE AND QUANTITY | 6 COMPRESSION |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | FUNGUS RESISTANT |
| FEATURES PROVIDED | ADJUSTABLE TRIP RELEASE |
| ADJUSTABLE TRIP SETTING CURRENT RANGE PER POLE IN AMPS | 300.0 TO 1308.0 AC ALL LOCATIONS |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
