NSN 5925-00-175-4023 THQB15, THQB2150, 00-175-4023
Product Details | CIRCUIT BREAKER
5925-00-175-4023 A device with means other than fuses for automatically opening the circuit in which it is installed when the current varies from the predetermined value for which the device is set. May include provisions for manual operation. At least one set of contacts must be in series with the actuating element(s). A combination of semiconductor and passive devices may be used in lieu of contacts. For automatically operated items in which the actuating (tripping) element and contacts are not in series, see RELAY (as modified). For items which are operated both manually and automatically but the actuating elements and contact are not in series, see RELAY-SWITCH. Excludes CIRCUIT BREAKER BOX and magneto "breaker" assemblies. See also SWITCH (as modified); and CONTROLLER.
Part Alternates: THQB15, THQB2150, 5925-00-175-4023, 00-175-4023, 5925001754023, 001754023
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1972 | 00-175-4023 | 00136 ( CIRCUIT BREAKER ) |
Drawings & Photos | NSN 5925-00-175-4023
Demand History | NSN 5925-00-175-4023
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-175-4023 | 2016-11-325 | 80 | DIBBS |
| 5925-00-175-4023 | 2016-03-91 | 19 | DIBBS |
| 5925-00-175-4023 | 2015-04-97 | 10 | DIBBS |
| 5925-00-175-4023 | 2014-04-97 | 2 | DIBBS |
| 5925-00-175-4023 | 2013-11-325 | 1 | DIBBS |
| 5925-00-175-4023 | 2012-09-260 | 2 | DIBBS |
| 5925-00-175-4023 | 2012-06-167 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5925-00-175-4023
Related Products | NSN 5925-00-175-4023
Technical Data | NSN 5925-00-175-4023
| Characteristic | Specifications |
|---|---|
| POLE QUANTITY | 2 |
| MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE | 50.0 AMPERES AC ALL LOCATIONS |
| OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS | 240.0 AC ALL LOCATIONS |
| FREQUENCY IN HERTZ | 60.0 ALL LOCATIONS |
| MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS | 10000.0 AC ALL LOCATIONS |
| CIRCUIT PROTECTION TYPE | OVERCURRENT ALL LOCATIONS |
| TRIP RELEASE METHOD | THERMAL-MAGNETIC ALL LOCATIONS |
| TRIP RELEASE AMBIENT TEMP RATING | 50.0 DEG CELSIUS MAXIMUM ALL LOCATIONS |
| TRIP RELEASE CHARACTERISTIC | TIME DELAY ALL LOCATIONS |
| TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT | 18.000 MINIMUM AT 200 PCT AND 125.000 MAXIMUM AT 200 PCT ALL LOCATIONS |
| ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT | 135.0 ALL LOCATIONS |
| RESET METHOD | MANUAL |
| MAIN CONTACT TRIPPING MECHANISM TYPE | TRIP FREE |

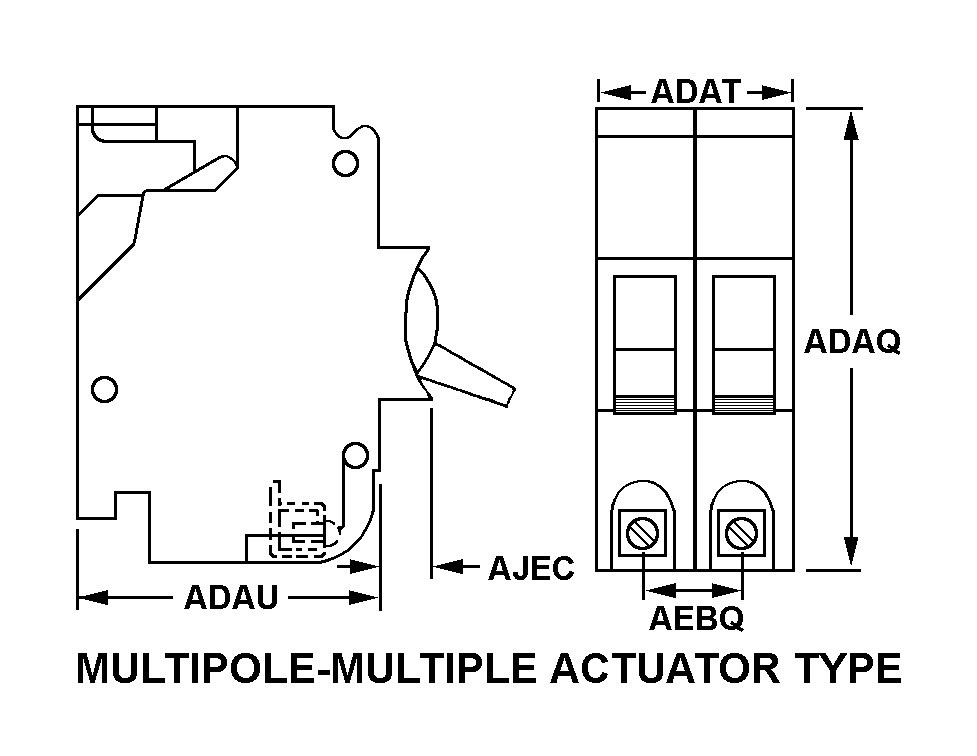

| BODY STYLE | 7C MULTIPOLE-MULTIPLE ACTUATOR TYPE |
| BODY LENGTH | 3.281 INCHES NOMINAL |
| BODY WIDTH | 2.000 INCHES MAXIMUM |
| BODY HEIGHT | 2.359 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.000 INCHES NOMINAL |
| BOSS HEIGHT | 0.187 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 TERMINAL |
| MANUAL ACTUATOR TYPE AND QUANTITY | 2 TOGGLE |
| ACTUATOR FUNCTION | TRIP-RESET |
| ACTUATOR POSITION DESIGNATION | AT EACH POLE |
| EXTERNAL ACTUATOR LINKAGE ARRANGEMENT | ONE AND TWO LINKED |
| TERMINAL TYPE AND QUANTITY | 2 CLIP AND 2 COMPRESSION |
| INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED | GENERAL PURPOSE |
| III STORAGE TYPE | GENERAL PURPOSE WAREHOUSE |
