NSN 5920-00-969-0462 SD185410, SD1854-10, 6RS21SA10D10
Product Details | OVERVOLTAGE ABSORBER
5920-00-969-0462 An item specifically designed to absorb and consume surges of voltage such as that resulting across contacts when breaking a circuit having an inductive load or a burst of static across a telephone receiver. It is connected in parallel with the item it is protecting. It may be made up of metallic rectifier cells or semiconductor devices connected back-to-back which may or may not be shunted by a capacitor. It may also be a single rectifier cell or semiconductor device shunted by a capacitor. Excludes metallic rectifiers which are rated for rectifying capabilities and all single unit semiconductor devices not shunted by a capacitor. For items perfoming this function by use of voltage sensitive resistors, see RESISTOR, VOLTAGE SENSITIVE. See also CUTOUT DISK, PROTECTIVE.
Part Alternates: SD185410, SD1854-10, 6RS21SA10D10, 6RS21SA1DD10, 14-236-349-00-018, 2KVC2610A10ZS, 2KVC26-10A10-ZS, 5920-00-969-0462, 00-969-0462, 1423634900018, 5920009690462, 009690462
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-969-0462 | 21899 ( ABSORBER, OVERVOLTAGE ) |

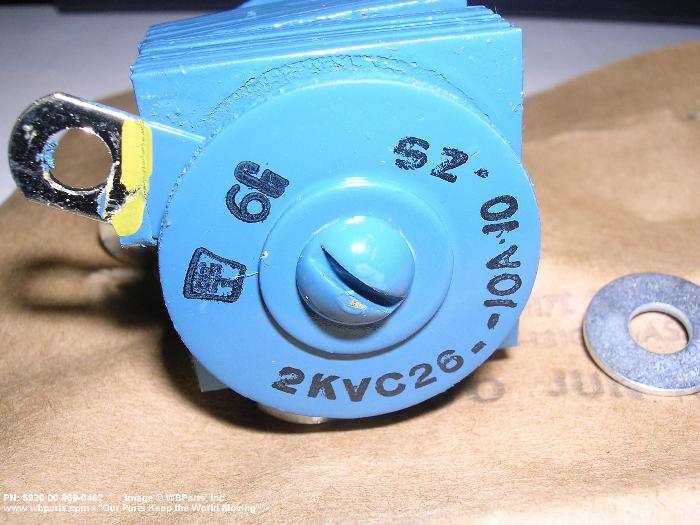

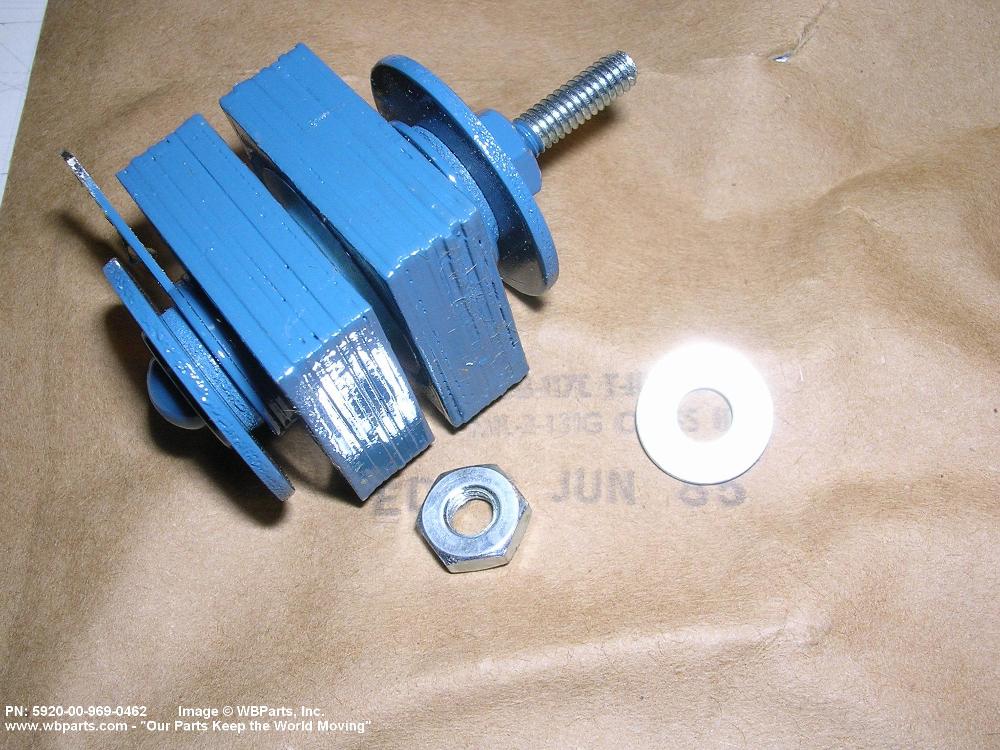

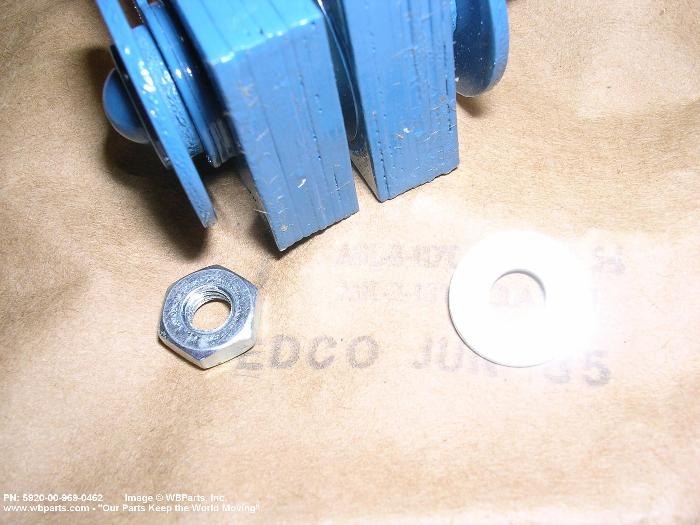

Drawings & Photos | NSN 5920-00-969-0462
Demand History | NSN 5920-00-969-0462
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6RS21SA10D10 | 2008-04-95 | 1 | UM |
| 2KVC2610A10ZS | 2007-10-275 | 2 | United States |
Cross Reference | NSN 5920-00-969-0462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14-236-349-00-018 | 92392 | ALLIS-CHALMERS CORP |
| 2KVC26-10A10-ZS | 51589 | ST-SEMICON INC |
| 6RS21SA10D10 | 09019 | GENERAL ELECTRIC CO POWER ELECTRONICS SYSTEMS DEPT |
| 6RS21SA10D10 | 81483 | INTERNATIONAL RECTIFIER CORPORATION |
| 6RS21SA1DD10 | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| SD1854-10 | 59656 | DEAN TECHNOLOGY INC. DBA CKE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-969-0462
Technical Data | NSN 5920-00-969-0462
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL DIAMETER | 1.688 INCHES NOMINAL |
| MOUNTING METHOD | THROUGH BOLT |
| MOUNTING CONFIGURATION | ONE BOLT 2.250 IN. LONG WITH THREADED STUD ENDS HAVING 0.164-32 THREADS PER IN.-AXIALLY LOCATED |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 250.0 |
| CURRENT RATING IN AMPS | 3.0 |
| CURRENT INTERRUPTING CAPACITY | 12.0 AMPERES MAXIMUM |
| FREQUENCY IN HERTZ | 40.0 |
| PROTECTED ITEM NAME | SILICON RECTIFIER |
| TERMINAL TYPE | SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| POLARIZATION FEATURE | INCLUDED |
| ELEMENT MATERIAL | SILICON CARBIDE |
| SHUNT CAPACITOR | NOT INCLUDED |
| PROTECTIVE COVERING TYPE | FINISH |
| COVERING MATERIAL | ENAMEL |
Restrictions/Controls & Freight Information | NSN 5920-00-969-0462
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062380 | LIGHTNING ARRESTERS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-969-0462
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
