NSN 5920-01-368-5413 G300778S3, 465-600-003 , 01-368-5413
Product Details | OVERVOLTAGE ABSORBER
5920-01-368-5413 An item specifically designed to absorb and consume surges of voltage such as that resulting across contacts when breaking a circuit having an inductive load or a burst of static across a telephone receiver. It is connected in parallel with the item it is protecting. It may be made up of metallic rectifier cells or semiconductor devices connected back-to-back which may or may not be shunted by a capacitor. It may also be a single rectifier cell or semiconductor device shunted by a capacitor. Excludes metallic rectifiers which are rated for rectifying capabilities and all single unit semiconductor devices not shunted by a capacitor. For items perfoming this function by use of voltage sensitive resistors, see RESISTOR, VOLTAGE SENSITIVE. See also CUTOUT DISK, PROTECTIVE.
Part Alternates: G300778S3, 465-600-003 , 5920-01-368-5413, 01-368-5413, 5920013685413, 465600003, 013685413
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 DEC 1992 | 01-368-5413 | 21899 ( ABSORBER, OVERVOLTAGE ) |

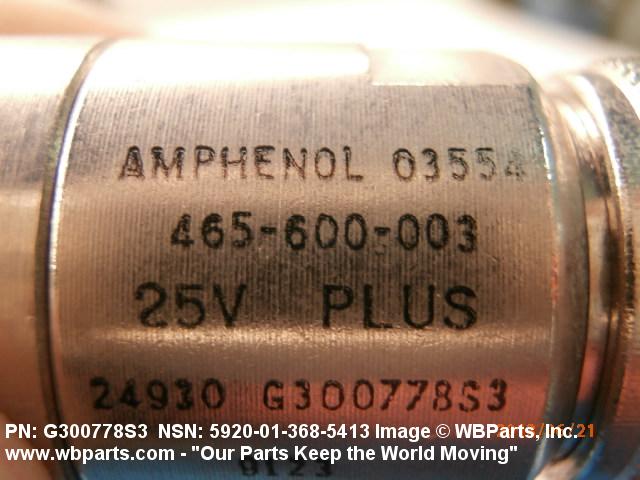

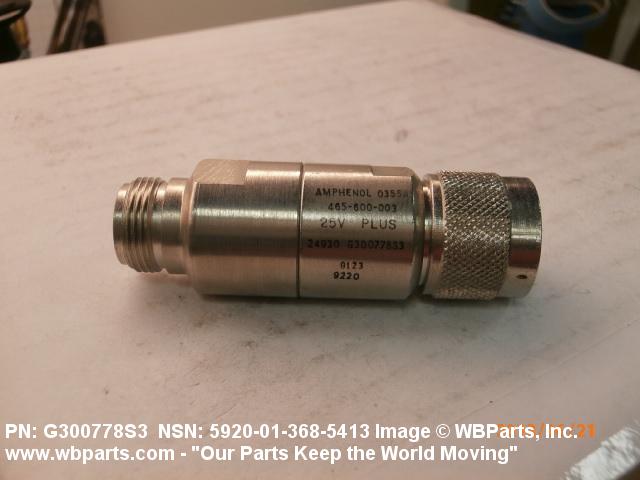

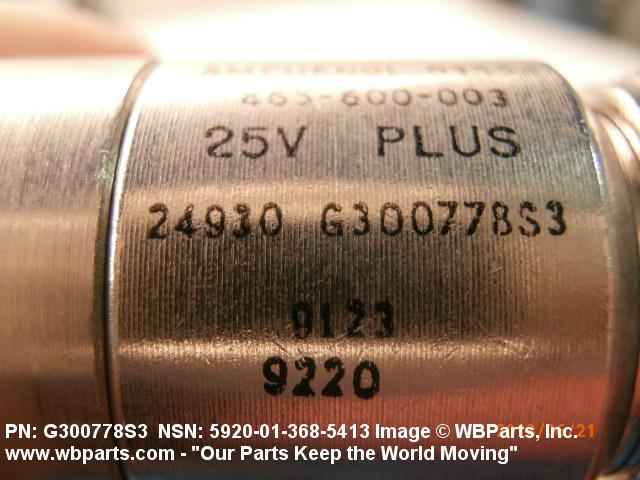

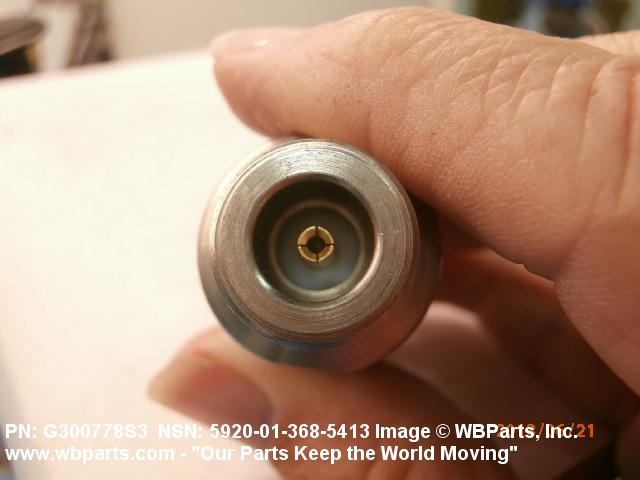

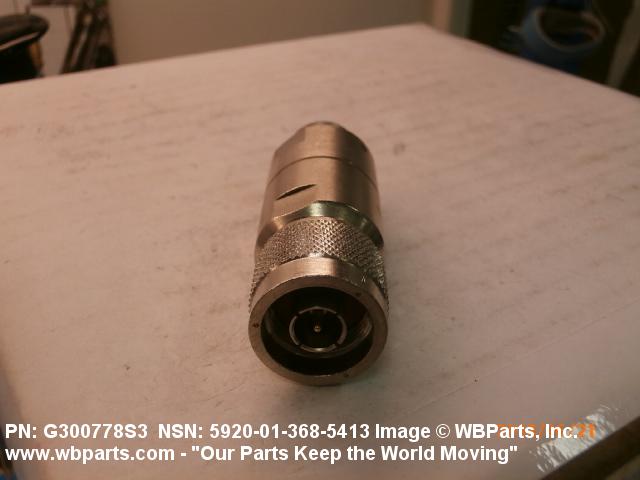

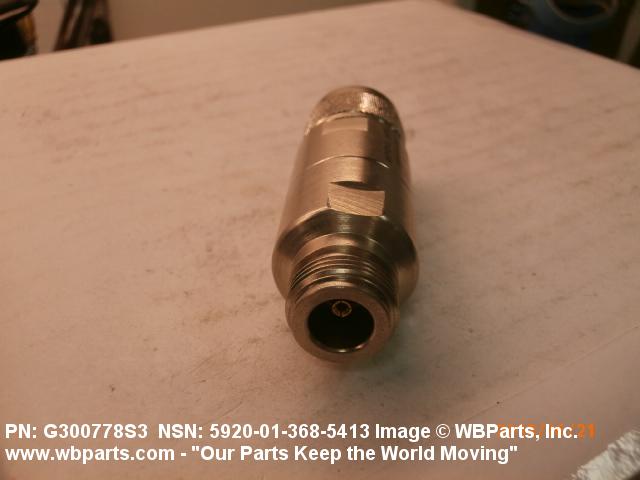

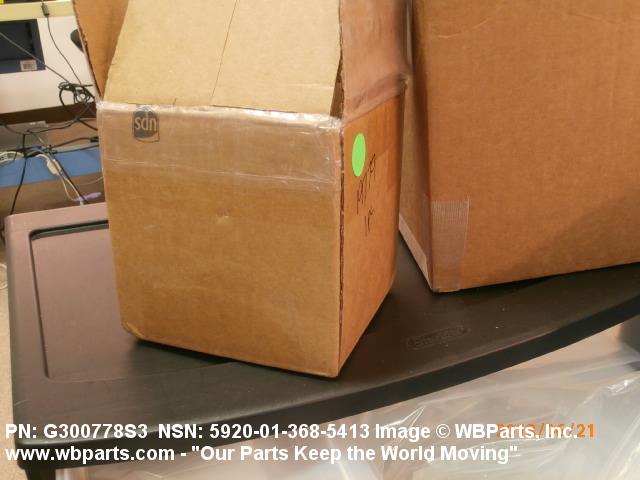

Drawings & Photos | NSN 5920-01-368-5413
Demand History | NSN 5920-01-368-5413
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-368-5413 | 2013-10-304 | 3 | DIBBS |
| 5920-01-368-5413 | 2013-10-282 | 1 | US |
| 5920-01-368-5413 | 2013-07-195 | 1 | DIBBS |
| 5920-01-368-5413 | 2013-06-162 | 3 | United States |
| 5920-01-368-5413 | 2011-08-238 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-368-5413
Technical Data | NSN 5920-01-368-5413
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 3.000 INCHES MAXIMUM |
| MOUNTING CONFIGURATION | INPUT/OUTPUT CONNECTOR SHALL MATE WITH TYPE "N" 50.00 OHM FEMALE/MALE RESPECTIVELY |
| VOLTAGE IN VOLTS | 25.0 |
| FREQUENCY IN HERTZ | 10000000.0 |
| PROTECTED ITEM MAXIMUM CURRENT RATING IN AMPS | 43.000 |
| TERMINAL TYPE | CONNECTOR, RECEPTACLE |
| TERMINAL QUANTITY | 2 |
| POLARIZATION FEATURE | INCLUDED |
| SHUNT CAPACITOR | NOT INCLUDED |
| PROTECTIVE COVERING TYPE | TUBE |
Restrictions/Controls & Freight Information | NSN 5920-01-368-5413
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062380 | LIGHTNING ARRESTERS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-01-368-5413
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
