NSN 5920-00-518-1789 MS9007931, MS90079-3-1, VBE8603A5K

Product Details | CARTRIDGE FUSE

5920-00-518-1789 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.

Part Alternates: MS9007931, MS90079-3-1, VBE8603A5K, VBE860-3A5K, F03A2505AS, F03A250-5AS, F03A250V10AS, F03A250V5A, F03A250V5AS, F03A250VAS, F03G5R00A, FD3A250V5AS, MIL-F-15160/3, MILF151603, MIL-PRF-15160/3, MILPRF151603, 5A, 7473483, 747348-3, 8140450001, 814045-0001, 1080H30H20, 1080H44REVTPC28, 1339AS7771, 1339AS777-1, 14050006, 14050-006, 264-0361-00, 2640361000, 264-0361-000, 314005, 352250005444, 3AB5A, 4133800024, 4133800-024, 4150142PC100, 4150-142PC100, 4413066, 44-1306-6, 4510007004, 451-0007-004, 5433040, 5920-00-518-1789, 00-518-1789, 5920005181789, 329029001, 264036100, 005181789

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-518-1789	00248 ( FUSE, CARTRIDGE )

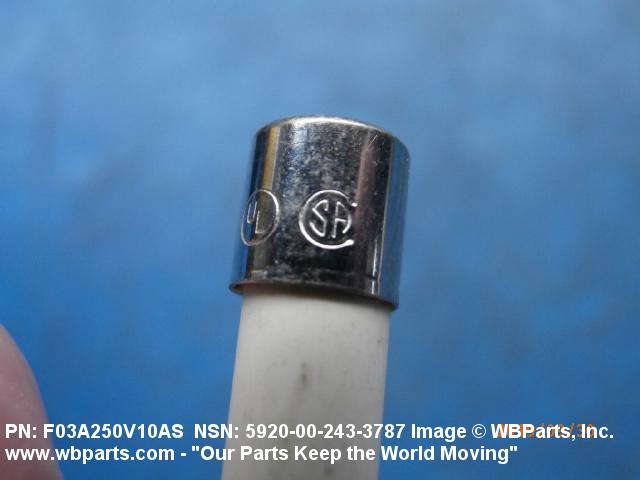

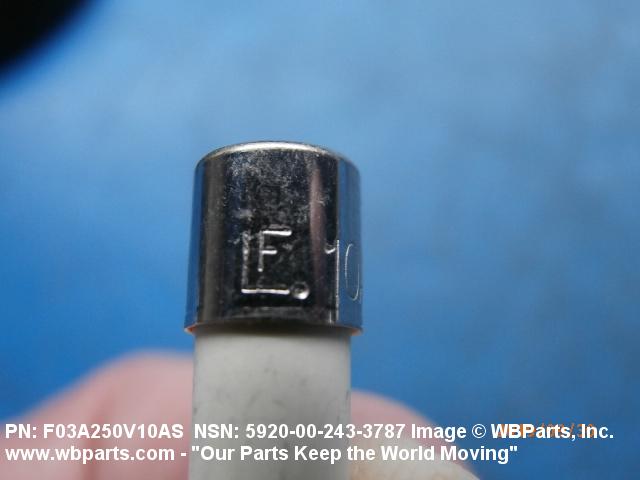

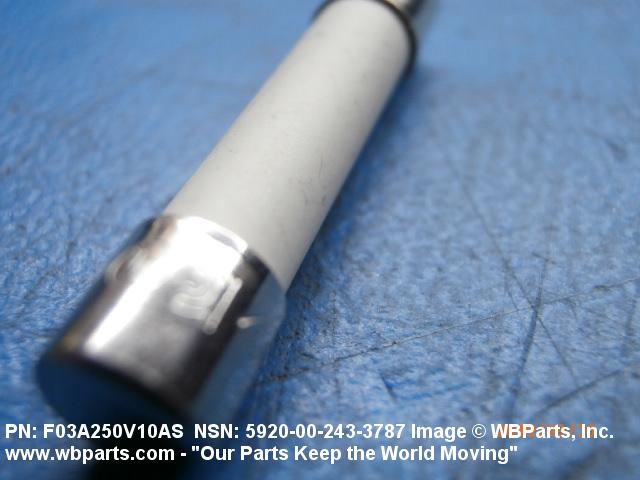

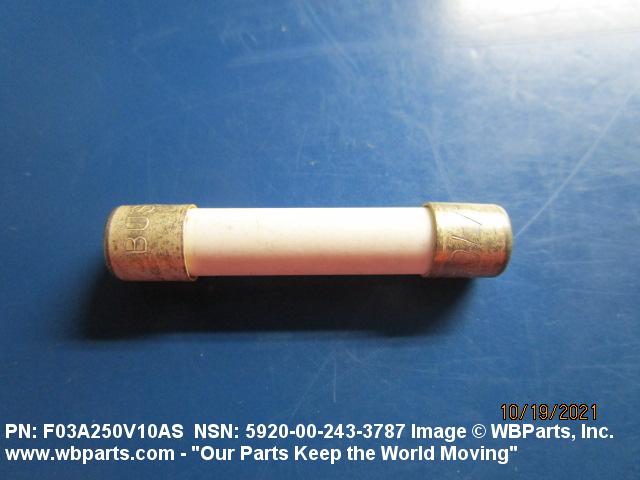

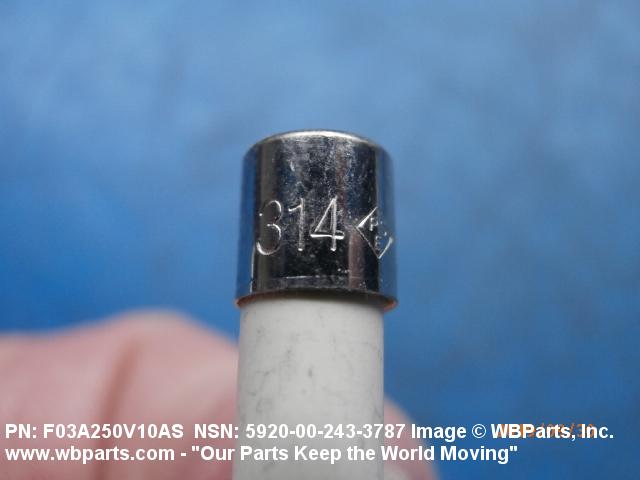

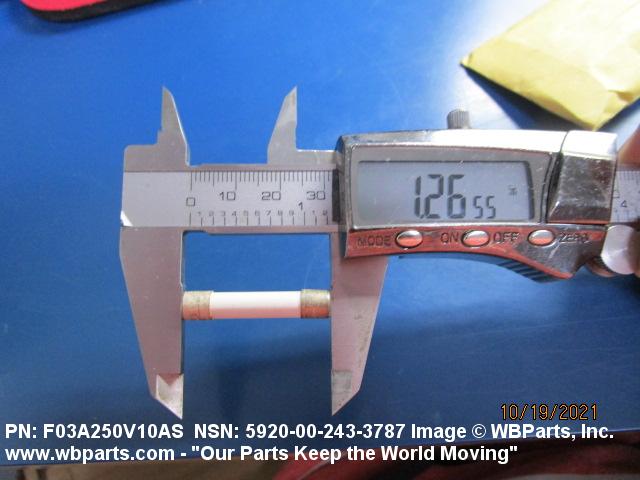

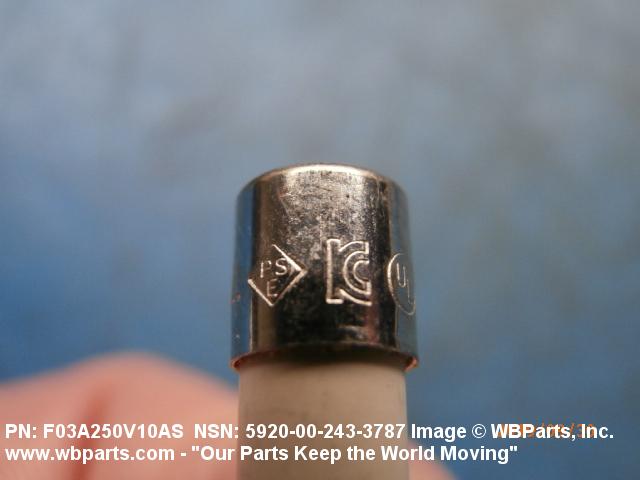

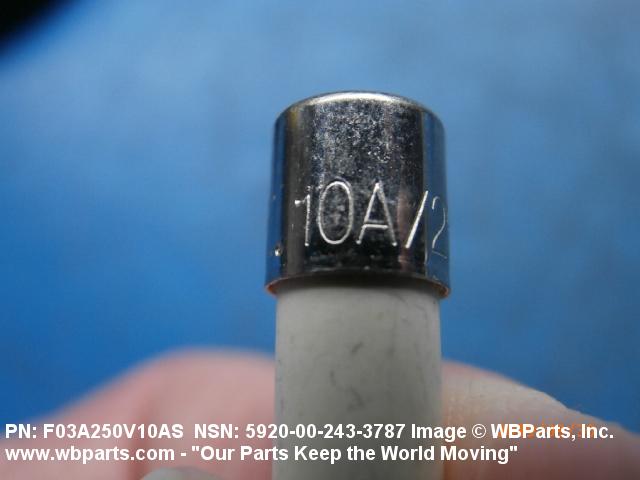

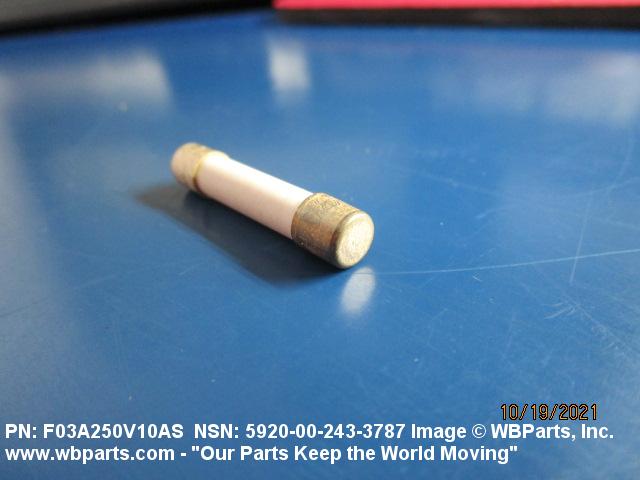

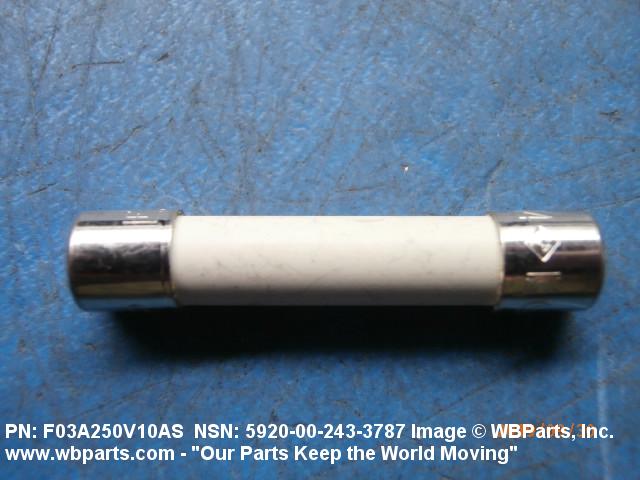

Drawings & Photos | NSN 5920-00-518-1789

Part Number	Request Date	QTY	Origin
F03A250V10AS	2024-10-298	27	United States
5920-00-518-1789	2024-01-12	13260	DIBBS
5920-00-518-1789	2024-01-01	13260	DIBBS
5920-00-518-1789	2023-11-331	3535	DIBBS
5920-00-518-1789	2023-11-319	3535	DIBBS
F03A250V10AS	2021-04-111	35	US
F03A250V10AS	2021-03-84	35	US
F03A250V10AS	2021-03-62	35	US
F03A250V5A	2020-05-149	20	US
F03A250V5A	2019-04-112	60	United States
F03A250V10AS	2019-04-99	62	United States
F03A250V10AS	2018-09-271	45	United States
F03A250V10AS	2018-07-192	15	United States
F03A250V5AS	2018-06-156	600	United States
5920-00-518-1789	2016-10-299	2137	DIBBS
5920-00-518-1789	2016-03-66	6755	DIBBS
F03A250V10AS	2014-01-17	6	United States
5920-00-518-1789	2013-09-248	5685	DIBBS
F03A250V10AS	2012-07-201	213	US
5920-00-518-1789	2007-11-317	6000	DIBBS
5920-00-518-1789	2007-08-240	11000	DIBBS
5920-00-518-1789	2007-05-136	10000	DIBBS
5920-00-518-1789	2007-03-71	7894	DIBBS
5920-00-518-1789	2007-02-54	1081	DIBBS
5920-00-518-1789	2007-02-53	661	DIBBS

Cross Reference | NSN 5920-00-518-1789

Part Number	Cage Code	Manufacturer
1080H30H20	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1080H44REVTPC28	04804	NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS
1339AS777-1	30003	NAVAL AIR SYSTEMS COMMAND
14050-006	12763	DYNALEC CORPORATION
264-0361-00	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
264-0361-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
314005	55572	AERODYNE PRODUCTS CORP
329029001	55901	DARE ELECTRONICS, INC.
352250005444	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
3AB5A	75915	LITTELFUSE, INC.
4133800-024	05869	RAYTHEON COMPANY DBA RAYTHEON
4133800-024	82577	RAYTHEON COMPANY DBA RAYTHEON
4150-142PC100	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
44-1306-6	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
451-0007-004	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
5433040	22096	GOOD-ALL ELECTRIC INC DIV OF VALMONT INDUSTRIES
5A	82522	PUGET SOUND NAVAL SHIPYARD AND INTERMEDIATE MAINTENCE FACILITY
747348-3	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
814045-0001	65597	THALES DEFENSE & SECURITY, INC.
F03A250-5AS	71400	COOPER BUSSMANN INC
F03A250V10AS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03A250V5A	71400	COOPER BUSSMANN INC
F03A250V5A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03A250V5AS	71400	COOPER BUSSMANN INC
F03A250V5AS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03A250VAS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
F03G5R00A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
FD3A250V5AS	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-F-15160/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-15160/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90079-3-1	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
VBE860-3A5K	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5920-00-518-1789

Compare

Related Products | NSN 5920-00-518-1789

5920-00-518-1791, 5920-00-518-1792, 5920-00-518-1793, 5920-00-518-1795, 5920-00-518-1846

Technical Data | NSN 5920-00-518-1789

Characteristic	Specifications
BODY STYLE	2A TUBE TYPE

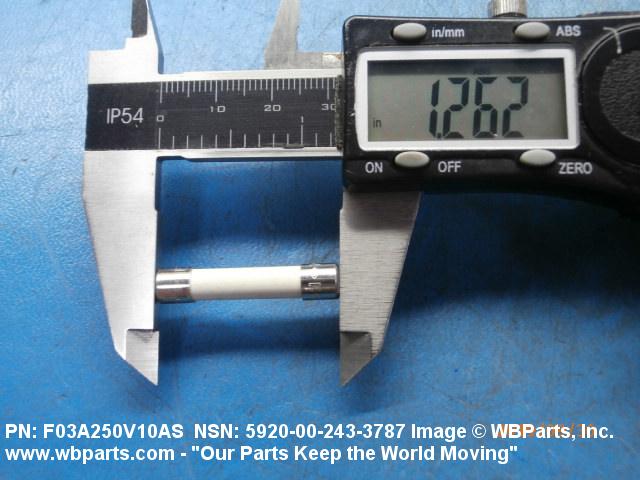

OVERALL LENGTH	1.219 INCHES MINIMUM AND 1.281 INCHES MAXIMUM

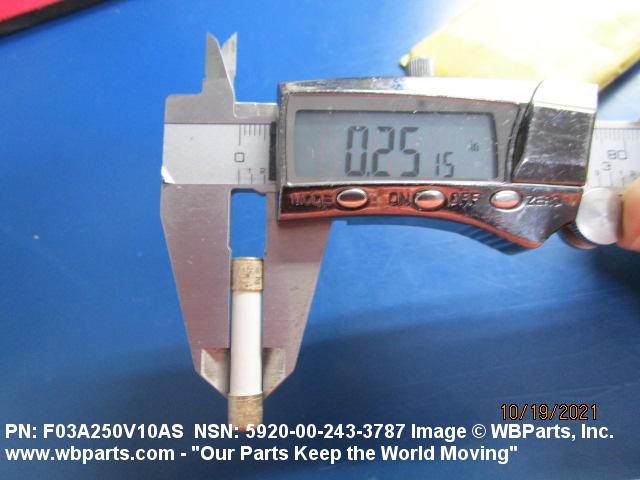

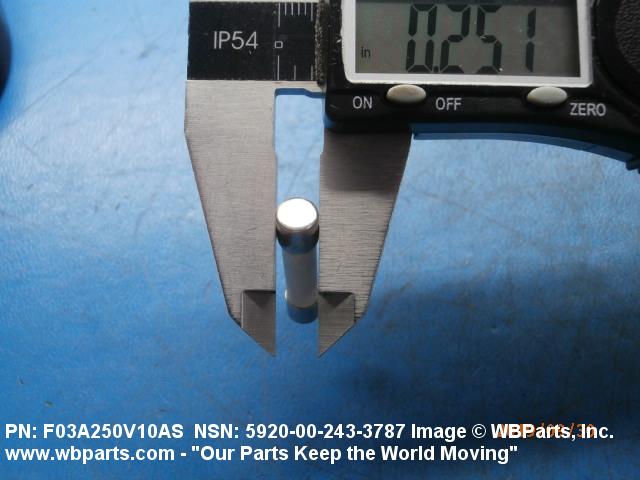

OVERALL DIAMETER	0.246 INCHES MINIMUM AND 0.254 INCHES MAXIMUM
CONTINUOUS CURRENT RATING IN AMPS	5.000

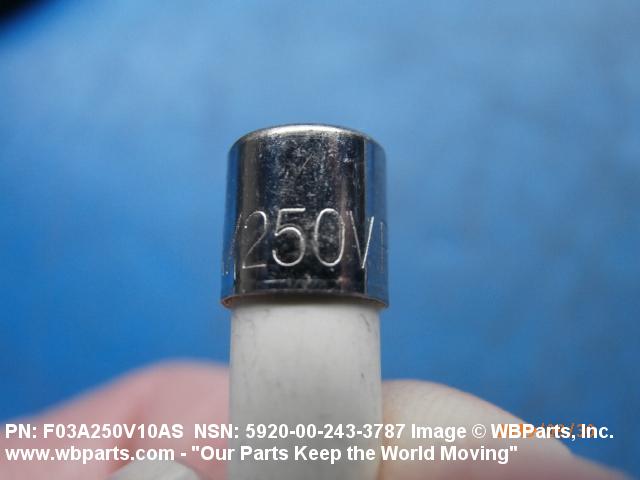

MAXIMUM VOLTAGE RATING IN VOLTS	250.0 AC AND 250.0 DC
CIRCUIT OVER-CURRENT INTERRUPTION TYPE	NORMAL INSTANTANEOUS
INTERRUPTION INDICATOR METHOD	OPAQUE BODY
SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS	10000.0
TERMINAL SURFACE TREATMENT	SILVER PLATED
FEATURES PROVIDED	NONRENEWABLE FUSIBLE ELEMENT
TEST DATA DOCUMENT	81349-MIL-F-15160 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-F-15160/3 GOVERNMENT SPECIFICATION
III CASE MATERIAL	CERAMIC OR PLASTIC
III TERMINAL MATERIAL	BRASS OR COPPER OR COPPER ALLOY
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND LOCATION	TERMINAL SURFACES SILVER
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	F03A250V5AS
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-15160/3

Restrictions/Controls & Freight Information | NSN 5920-00-518-1789

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	S	Item contains silver
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	062060	FUSES NOI IN BOXES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5920-00-518-1789

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	A	Item requires special handling/or condemnation procedures because of specific reasons (i.e., precious metal content, high dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	5 EA : Each
