NSN 5920-00-518-1793 MS9007921, MS90079-2-1, SKRR517 ITEM 34
Product Details | CARTRIDGE FUSE
5920-00-518-1793 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: MS9007921, MS90079-2-1, SKRR517 ITEM 34, SKRR517ITEM34, VBE8603A3K, VBE860-3A3K, PMF3S, PM-F3S, F030A250V3AS, F032503AS, F03-250-3AS, F03A2503AS, F03A250-3AS, F03A250V03A, F03A250V03AS, F03A250V3A, F03A250V3AAS, F03A250V3AS, F03A25V3AS, F03G3R00A, FUE0114, MIL-F-15160/3, MILF151603, MIL-PRF-15160/3, MILPRF151603, 010079-012, 1080H30H24, 11460, 352250005443, 3AG3A, 3AG3ASB, 4133725054, 4133725-054, 4150142PC102, 4150-142PC102, 4413064, 44-1306-4, 511-7610107-011, 6500006, 650-0006, 73110755012, 731-10755012, 81962, 5920-00-518-1793, 00-518-1793, 5920005181793, 5117610107011, 010079012, 005181793
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-518-1793 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-00-518-1793
Demand History | NSN 5920-00-518-1793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-518-1793 | 2023-08-235 | 50 | United States |
| 5920-00-518-1793 | 2023-04-118 | 50 | US |
| F03A250V3AS | 2023-02-41 | 100 | United States |
| 5920-00-518-1793 | 2020-02-49 | 5981 | DIBBS |
| 5920-00-518-1793 | 2020-02-35 | 5981 | DIBBS |
| F03A250V3AS | 2018-10-303 | 50 | United States |
| 5920-00-518-1793 | 2014-06-161 | 8190 | DIBBS |
| 5920-00-518-1793 | 2014-03-71 | 5862 | DIBBS |
| 5920-00-518-1793 | 2013-04-91 | 6018 | DIBBS |
| 5920-00-518-1793 | 2012-03-79 | 2384 | DIBBS |
| 5920-00-518-1793 | 2011-09-245 | 3533 | DIBBS |
| F03A250V3AS | 2011-08-213 | 25 | AE |
| 81962 | 2009-08-232 | 10 | United States |
| 5920-00-518-1793 | 2007-10-297 | 8200 | DIBBS |
| 5920-00-518-1793 | 2007-09-249 | 4119 | DIBBS |
| 5920-00-518-1793 | 2007-08-218 | 5800 | DIBBS |
Cross Reference | NSN 5920-00-518-1793
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 010079-012 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 1080H30H24 | 04804 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS |
| 11460 | 29731 | GARDNER DENVER WATER JETTING SYSTEMS, INC. |
| 352250005443 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 3AG3A | 96169 | ELECTRIC BOAT CORPORATION |
| 3AG3ASB | 71400 | COOPER BUSSMANN INC |
| 4133725-054 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4150-142PC102 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 44-1306-4 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 511-7610107-011 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 650-0006 | 0ERB9 | DRS LAUREL TECHNOLOGIES |
| 731-10755012 | 30646 | ROSEMOUNT ANALYTICAL INC |
| 81962 | 10522 | WASHINGTON SCIENTIFIC INDUSTRIES INC |
| F03-250-3AS | 71400 | COOPER BUSSMANN INC |
| F030A250V3AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A250-3AS | 71400 | COOPER BUSSMANN INC |
| F03A250V03A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A250V03AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A250V3A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A250V3AAS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A250V3AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03A250V3AS | 96169 | ELECTRIC BOAT CORPORATION |
| F03A25V3AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03G3R00A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FUE0114 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-15160/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-15160/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS90079-2-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PM-F3S | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
| SKRR517 ITEM 34 | 24290 | DRS TEST & ENERGY MANAGEMENT, LLC |
| VBE860-3A3K | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-518-1793
Technical Data | NSN 5920-00-518-1793
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

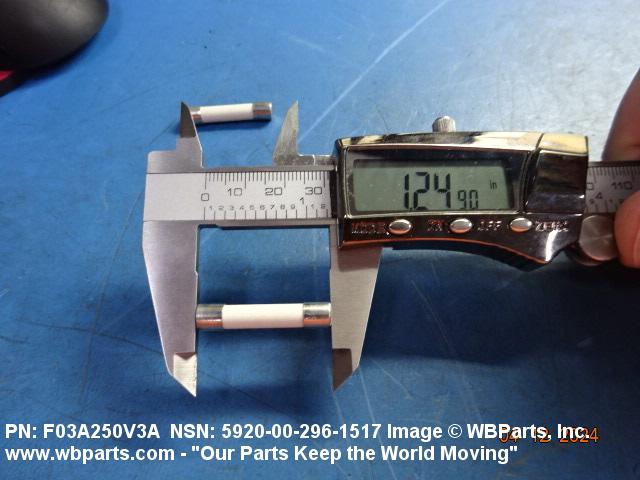

| OVERALL LENGTH | 1.219 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |

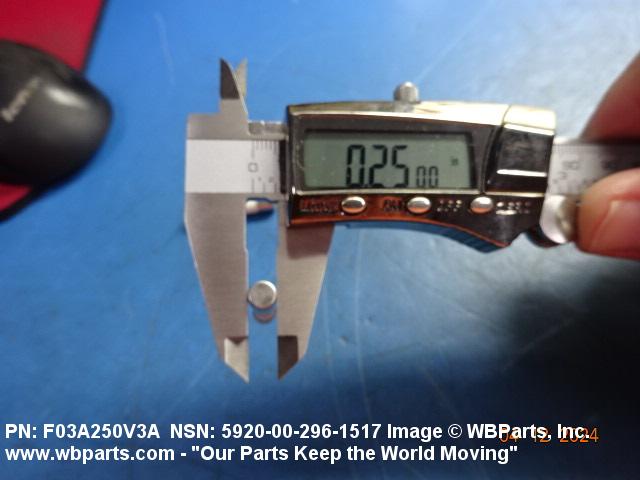

| OVERALL DIAMETER | 0.246 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 3.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | SILVER PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/3 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | CERAMIC OR PLASTIC |
| III TERMINAL MATERIAL | BRASS OR COPPER OR COPPER ALLOY |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F03A250V3AS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-15160/3 |
Restrictions/Controls & Freight Information | NSN 5920-00-518-1793
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
