Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-295-8833 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: B545300, 9111128, 340067, 5920-00-295-8833, 00-295-8833, 5920002958833, 002958833
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-295-8833 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-295-8833
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-295-8833
Technical Data | NSN 5920-00-295-8833
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | TIN PLATED |
| BODY STYLE | D10 BUSHING MOUNTED TYPE |
| OVERALL LENGTH | 1.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.793 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.578 INCHES NOMINAL |
| BUSHING THREAD LENGTH | 0.464 INCHES MINIMUM AND 0.498 INCHES MAXIMUM |
| CAP DIAMETER | 0.630 INCHES NOMINAL |

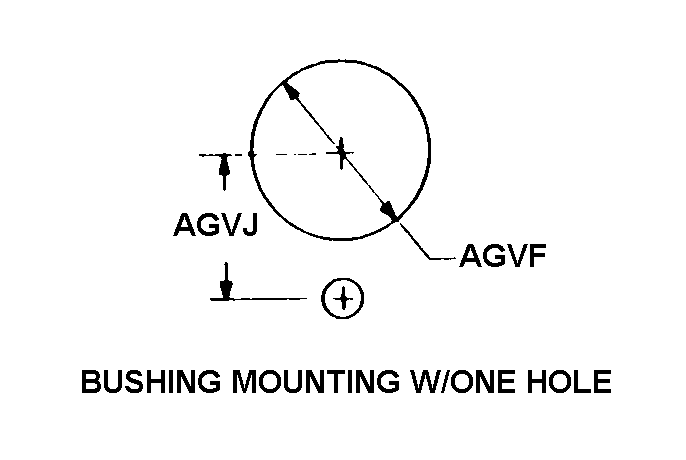

| MOUNTING HOLE STYLE | F21 BUSHING MOUNTING W/ONE HOLE |
| BUSHING HOLE DIAMETER | 0.688 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BUSHING HOLE AND MOUNTING HOLE | 0.460 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 1 |
| BUSHING DIAMETER | 0.500 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| III TERMINAL MATERIAL | BRASS |
| III TERMINAL SURFACE TREATMENT | ELECTROTINNED |
| III BODY MATERIAL | PLASTIC, PHENOLIC, MOULDED |
