NSN 5920-00-295-9063 SV809020 ITEM 31, SV809020ITEM31, F60C500V1AC

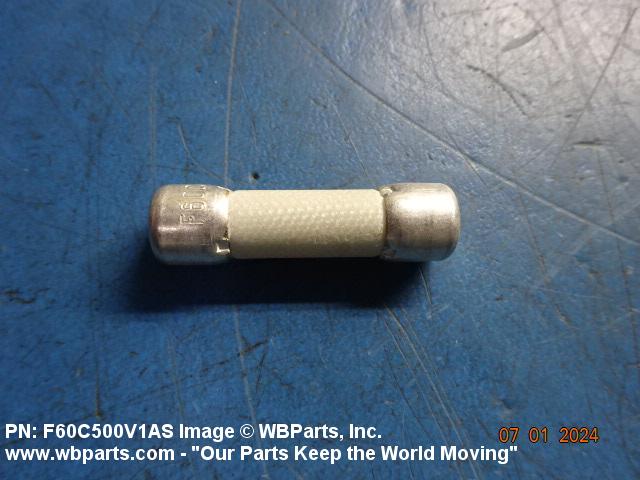

Product Details | CARTRIDGE FUSE
5920-00-295-9063 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: SV809020 ITEM 31, SV809020ITEM31, F60C500V1AC, F60C500V1AS, F60-C-500V-1A-S, MIL-F-15160/60, MILF1516060, MIL-PRF-15160/60, MILPRF1516060, 7381861, 738186-1, A5Y1, 02613008, 02-61-3008, 1080H95H16, 2635-088-22 ITEM 1-378, 263508822ITEM1378, 5253392, 5253-392, 5920-00-295-9063, 00-295-9063, 5920002959063, 002959063
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-295-9063 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-00-295-9063
Demand History | NSN 5920-00-295-9063
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| F60C500V1AS | 2024-02-43 | 25 | United States |
| F60C500V1AS | 2019-01-17 | 1705 | United States |
| F60C500V1AS | 2018-06-156 | 310 | United States |
| 5920-00-295-9063 | 2016-08-222 | 83259 | DIBBS |
| 5920-00-295-9063 | 2015-10-287 | 45458 | DIBBS |
| 5920-00-295-9063 | 2015-10-278 | 44262 | DIBBS |
| 5920-00-295-9063 | 2014-04-92 | 32000 | DIBBS |
| 5920-00-295-9063 | 2014-01-13 | 2725 | DIBBS |
| 5920-00-295-9063 | 2013-07-206 | 2620 | DIBBS |
| 5920-00-295-9063 | 2012-09-262 | 1315 | DIBBS |
| 5920-00-295-9063 | 2011-04-109 | 1400 | DIBBS |
Cross Reference | NSN 5920-00-295-9063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-61-3008 | 96169 | ELECTRIC BOAT CORPORATION |
| 1080H95H16 | 04804 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ES POWER CONTROL SYSTEMS |
| 2635-088-22 ITEM 1-378 | 96169 | ELECTRIC BOAT CORPORATION |
| 5253-392 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 738186-1 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| A5Y1 | 71424 | FERRAZ SHAWMUT INC |
| F60-C-500V-1A-S | 71400 | COOPER BUSSMANN INC |
| F60C500V1AC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C500V1AS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F60C500V1AS | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MIL-F-15160/60 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-15160/60 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SV809020 ITEM 31 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| SV809020 ITEM 31 | 81412 | TREADWELL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-295-9063
Related Products | NSN 5920-00-295-9063
Technical Data | NSN 5920-00-295-9063
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |
| OVERALL LENGTH | 1.469 INCHES MINIMUM AND 1.531 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.402 INCHES MINIMUM AND 0.410 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 1.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 500.0 AC AND 500.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 150000.0 AND 200000.0 |
| TERMINAL SURFACE TREATMENT | SILVER PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/60 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC, MELAMINE, GLASS FILLED |
| III TERMINAL MATERIAL | BRASS OR COPPER OR BRONZE OR COPPER ALLOY |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F60C500V1AS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-15160/60 |
