NSN 5920-00-285-0073 WF803SUPERSEDED, 00-285-0073, 002850073
Product Details | ELECTRICAL FUSE LINK
5920-00-285-0073 An item which forms the replaceable fusible element of an electrical fuse and is prefabricated to a specific size and rating. It may be inclosed. See also FUSE, INCLOSED LINK and FUSE, OPEN LINK.
Part Alternates: WF803SUPERSEDED, 5920-00-285-0073, 00-285-0073, 5920002850073, 002850073
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-285-0073 | 04185 ( FUSE LINK, ELECTRICAL ) |
Drawings & Photos | NSN 5920-00-285-0073
Cross Reference | NSN 5920-00-285-0073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WF803SUPERSEDED | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-285-0073
Technical Data | NSN 5920-00-285-0073
| Characteristic | Specifications |
|---|---|

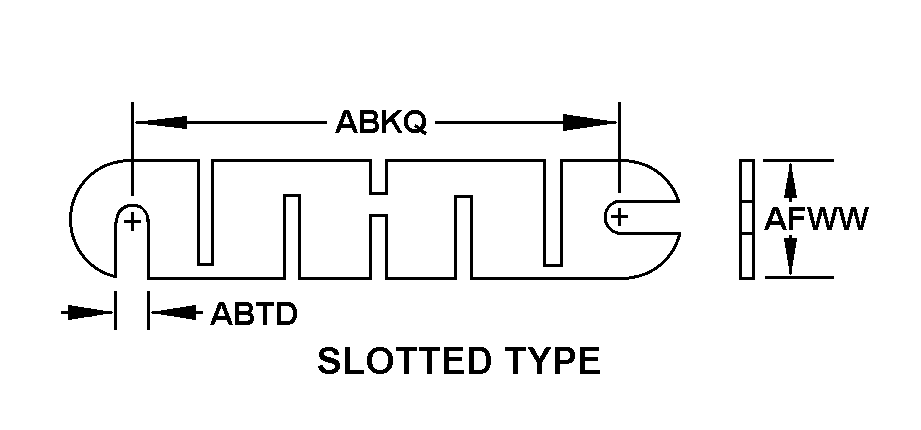

| BODY STYLE | 3F SLOTTED TYPE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.562 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.203 INCHES MINIMUM |
| TERMINAL WIDTH | ANY ACCEPTABLE |
| CONTINUOUS CURRENT RATING IN AMPS | 70.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 250 V CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WF803SUPERSEDED |
Restrictions/Controls & Freight Information | NSN 5920-00-285-0073
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
