NSN 5920-00-224-1634 ELS10, LKS10, WF803TYPE2
Product Details | ELECTRICAL FUSE LINK
5920-00-224-1634 An item which forms the replaceable fusible element of an electrical fuse and is prefabricated to a specific size and rating. It may be inclosed. See also FUSE, INCLOSED LINK and FUSE, OPEN LINK.
Part Alternates: ELS10, LKS10, WF803TYPE2, R610, 1410, 3043, 5920-00-224-1634, 00-224-1634, 5920002241634, 002241634
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-224-1634 | 04185 ( FUSE LINK, ELECTRICAL ) |
Drawings & Photos | NSN 5920-00-224-1634
Demand History | NSN 5920-00-224-1634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LKS10 | 2019-10-296 | 2 | DIBBS |
| LKS10 | 2019-07-197 | 10 | DIBBS |
| LKS10 | 2019-04-108 | 10 | DIBBS |
Cross Reference | NSN 5920-00-224-1634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1410 | 71400 | COOPER BUSSMANN INC |
| 3043 | 71424 | FERRAZ SHAWMUT INC |
| ELS10 | 72076 | FEDERAL PACIFIC ELECTRIC CO ECONOMY FUSE DIV |
| LKS10 | 71400 | COOPER BUSSMANN INC |
| R610 | 72076 | FEDERAL PACIFIC ELECTRIC CO ECONOMY FUSE DIV |
| WF803TYPE2 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-224-1634
Related Products | NSN 5920-00-224-1634
Technical Data | NSN 5920-00-224-1634
| Characteristic | Specifications |
|---|---|

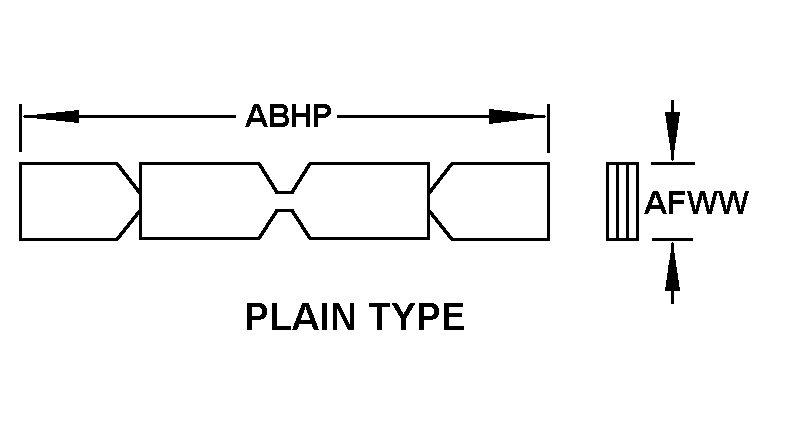

| BODY STYLE | 2F PLAIN TYPE |
