NSN 5915-00-933-2848 C523322, SMC523322, 00-933-2848
Product Details | CAPACITOR-RESISTOR
5915-00-933-2848 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: C523322, SMC523322, 5915-00-933-2848, 00-933-2848, 5915009332848, 009332848
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-933-2848 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-933-2848
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-933-2848
Technical Data | NSN 5915-00-933-2848
| Characteristic | Specifications |
|---|---|

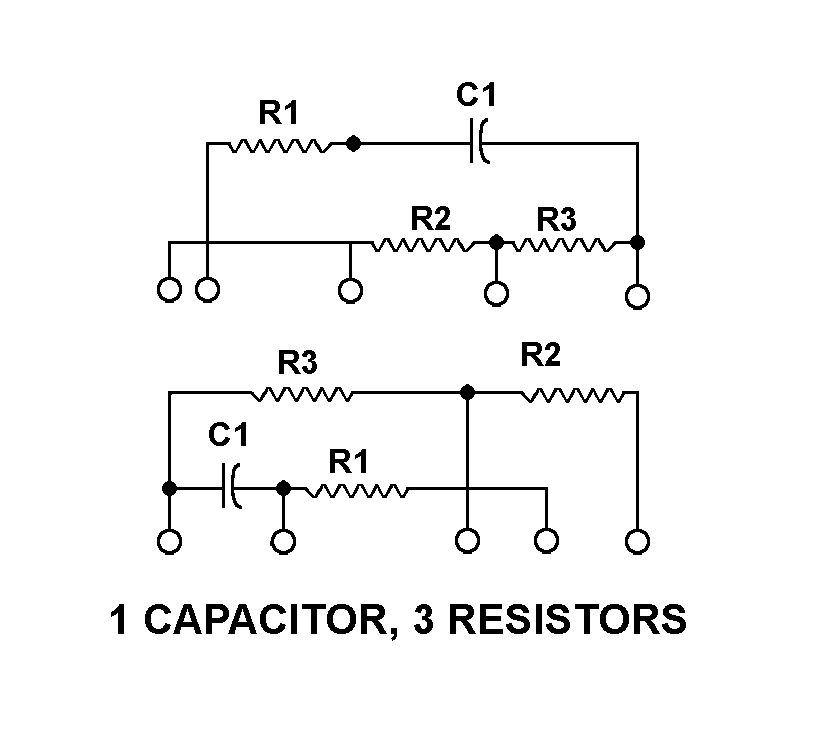

| SCHEMATIC DIAGRAM DESIGNATOR | 14 1 CAPACITOR, 3 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 1000.0 PICOFARADS CAPACITOR C1 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -0.0 TO 250.0 CAPACITOR C1 |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 25.0 CAPACITOR C1 |
| ELECTRICAL RESISTANCE PER FUNCTION | 1.0 KILOHMS RESISTOR R1 4.5 KILOHMS RESISTOR R2 51.0 KILOHMS RESISTOR R3 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 0.100 ALL RESISTORS |
| ASSEMBLY FORM | ENCASED |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| MOUNTING METHOD | TERMINAL |
| MOUNTING FACILITY QUANTITY | 5 |
| OVERALL LENGTH | 0.540 INCHES NOMINAL |
| OVERALL WIDTH | 0.420 INCHES NOMINAL |
| OVERALL HEIGHT | 0.100 INCHES NOMINAL |
| III CASE MATERIAL | PLASTIC |
| III CASE SURFACE TREATMENT | PLASTIC, PHENOLIC |
