NSN 5915-00-933-2852 C523325, SMC523325, 00-933-2852
Product Details | CAPACITOR-RESISTOR
5915-00-933-2852 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Part Alternates: C523325, SMC523325, 5915-00-933-2852, 00-933-2852, 5915009332852, 009332852
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 AUG 1966 | 00-933-2852 | 05090 ( CAPACITOR-RESISTOR ) |
Drawings & Photos | NSN 5915-00-933-2852
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-933-2852
Technical Data | NSN 5915-00-933-2852
| Characteristic | Specifications |
|---|---|

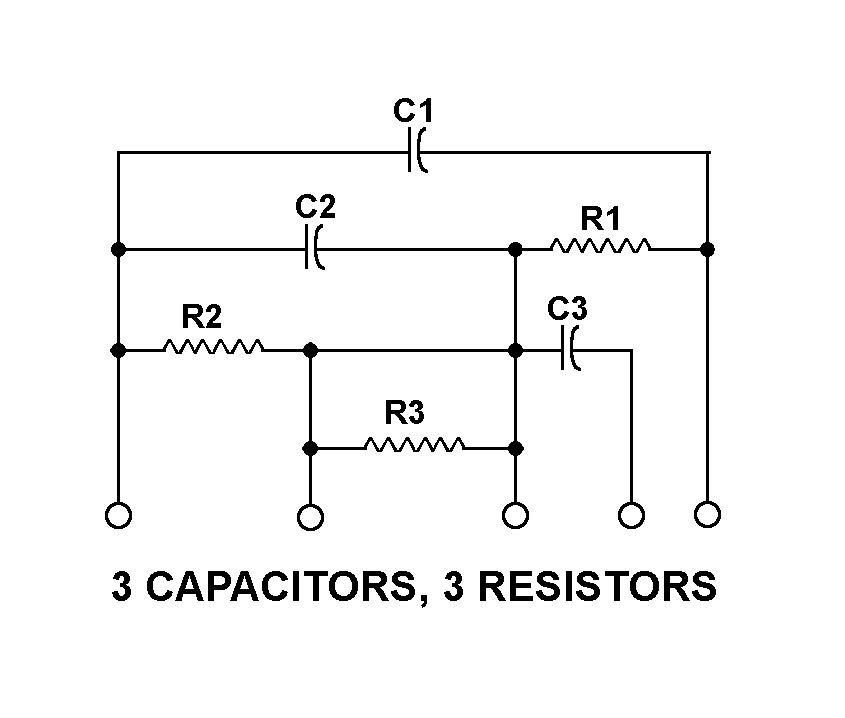

| SCHEMATIC DIAGRAM DESIGNATOR | 95 3 CAPACITORS, 3 RESISTORS |
| CAPACITANCE VALUE PER FUNCTION | 100000.0 PICOFARADS CAPACITOR C1 50000.0 PICOFARADS CAPACITOR C2 1000.0 PICOFARADS CAPACITOR C3 |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -75.0 TO 27.0 CAPACITOR C1 -75.0 TO 27.0 CAPACITOR C2 -0.0 TO 250.0 CAPACITOR C3 |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 16.0 CAPACITOR C1 16.0 CAPACITOR C2 25.0 CAPACITOR C3 |
| ELECTRICAL RESISTANCE PER FUNCTION | 1.0 KILOHMS RESISTOR R1 15.0 KILOHMS RESISTOR R2 3.9 KILOHMS RESISTOR R3 |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO 10.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 0.100 ALL RESISTORS |
| ASSEMBLY FORM | MOLDED TOGETHER |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| MOUNTING METHOD | TERMINAL |
| MOUNTING FACILITY QUANTITY | 5 |
| OVERALL LENGTH | 0.580 INCHES NOMINAL |
| OVERALL WIDTH | 0.450 INCHES NOMINAL |
| OVERALL HEIGHT | 0.240 INCHES NOMINAL |
| III CASE MATERIAL | PLASTIC |
| III CASE SURFACE TREATMENT | PLASTIC, PHENOLIC |
Restrictions/Controls & Freight Information | NSN 5915-00-933-2852
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
