Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-01-146-7842 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: AED00369515, AED003695-15, 5910-01-146-7842, 01-146-7842, 5910011467842, 011467842
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 FEB 1983 | 01-146-7842 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-01-146-7842
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-146-7842
Related Products | NSN 5910-01-146-7842
Technical Data | NSN 5910-01-146-7842
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.220 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 MICROFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 400.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 120.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 21A W/O MTG FACILITIES, TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 51.0 MILLIMETERS NOMINAL |
| BODY HEIGHT | 13.0 MILLIMETERS NOMINAL |

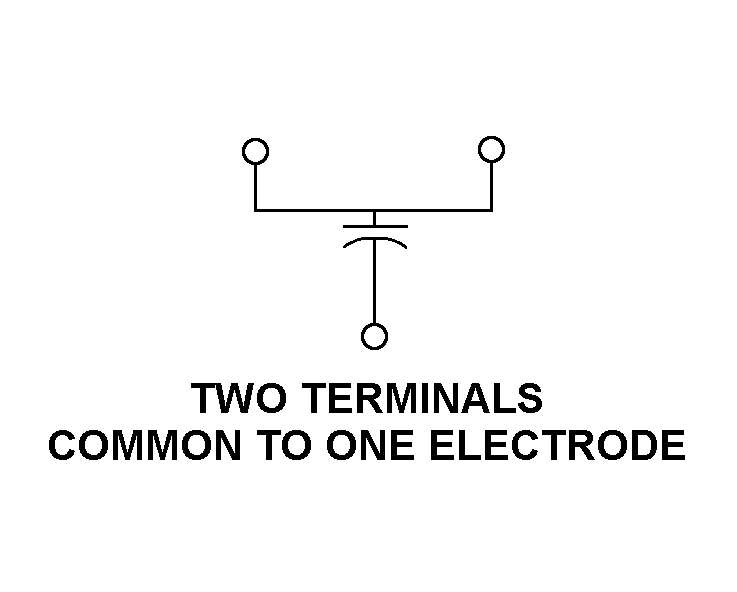

| SCHEMATIC DIAGRAM DESIGNATOR | 4C TWO TERMINALS COMMON TO ONE ELECTRODE |
| TERMINAL TYPE AND QUANTITY | 2 STANDOFF, WIRE LEAD |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| ELECTRICAL POLARIZATION | NONPOLARIZED |
| RELIABILITY INDICATOR | ESTABLISHED |
