NSN 5910-01-146-7745 CP09A1KG224K3, CQR39A1KG224K3M, CQR39A1KG224K3P

Product Details | PLASTIC DIELECTRIC FIXED CAPACITOR

5910-01-146-7745 A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC.

Part Alternates: CP09A1KG224K3, CQR39A1KG224K3M, CQR39A1KG224K3P, MILC1997816, MILC19978-16, 196P224010S2, 196P224910S4, 5910-01-146-7745, 01-146-7745, 5910011467745, 011467745

Electrical and Electronic Equipment Components | Capacitors

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 FEB 1983	01-146-7745	00006 ( CAPACITOR, FIXED, PLASTIC DIELECTRIC )

Drawings & Photos | NSN 5910-01-146-7745

Part Number	Request Date	QTY	Origin

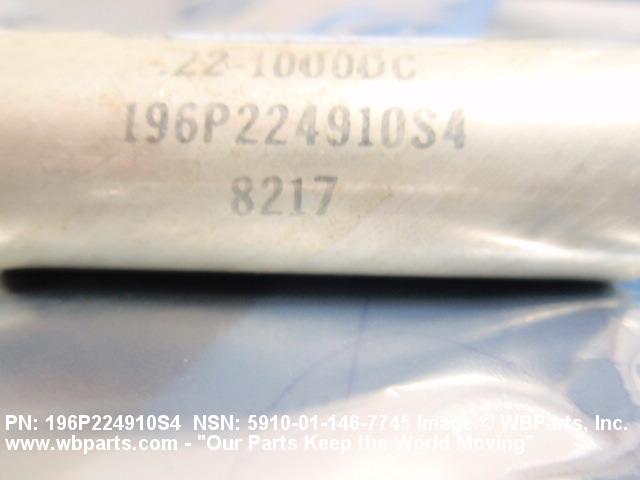

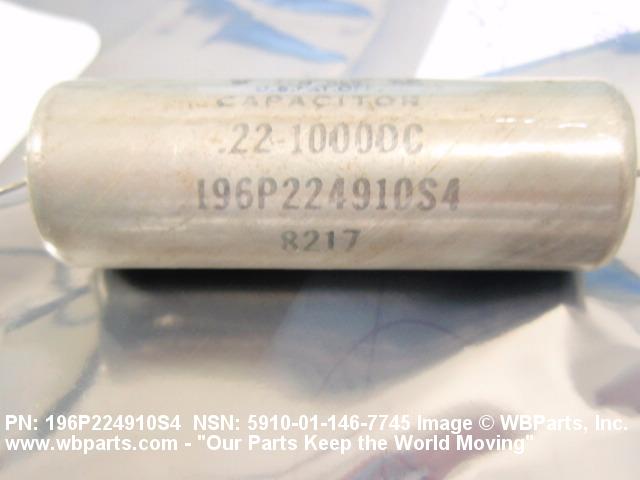

196P224910S4	2020-10-297	1	US
5910-01-146-7745	2018-05-148	10	DIBBS
196P224910S4	2010-10-280	6	US
5910-01-146-7745	2010-10-280	10	US
196P224010S2	2010-04-102	10	Colombia
196P224010S2	2009-12-337	24	Philippines

Cross Reference | NSN 5910-01-146-7745

Part Number	Cage Code	Manufacturer
196P224010S2	56289	SPRAGUE ELECTRIC CO WORLD HQS
196P224910S4	56289	SPRAGUE ELECTRIC CO WORLD HQS
CP09A1KG224K3	80048	VICKERS INC ELECTRIC PRODUCTS DIVISION
CQR39A1KG224K3M	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
CQR39A1KG224K3P	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC19978-16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5910-01-146-7745

Compare

Related Products | NSN 5910-01-146-7745

5910-01-146-7753, 5910-01-146-7758, 5910-01-146-7841, 5910-01-146-7842, 5910-01-146-8162

Technical Data | NSN 5910-01-146-7745

Characteristic	Specifications
CAPACITANCE VALUE PER SECTION	0.220 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION	-10.00 TO 10.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION	1000.0 DC SINGLE SECTION
NONDERATED OPERATING TEMP	-65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
BODY STYLE	26B W/O MTG FACILITIES, AXIAL TERMINALS
BODY DIAMETER	0.812 INCHES NOMINAL
BODY LENGTH	2.188 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR	1C NO COMMON OR GROUNDED ELECTRODE(S)
TERMINAL TYPE AND QUANTITY	2 UNINSULATED WIRE LEAD
TERMINAL LENGTH	1.625 INCHES MINIMUM
TERMINAL DIAMETER	0.032 INCHES NOMINAL
CASE MATERIAL	METAL
CASE INSULATION MATERIAL	PLASTIC
INSULATION RESISTANCE AT REFERENCE TEMP	25000.0 MEGOHMS
DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT	1.0000
RELIABILITY INDICATOR	ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT	0.1000
FEATURES PROVIDED	HERMETICALLY SEALED CASE
TEST DATA DOCUMENT	81349-MIL-C-19978 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-19978/16 GOVERNMENT SPECIFICATION
III TERMINAL SURFACE TREATMENT	SOLDER
III INTERNAL ELECTRICAL CONNECTION TYPE	EXTENDED FOIL
III DIELECTRIC MATERIAL	PAPER AND PLASTIC POLYETHYLENE TEREPHTHALATE
(NON-CORE DATA) OVERALL LENGTH	2.594 INCHES MAXIMUM
III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP	20.0 MEGOHM-MICROFARADS
(NON-CORE DATA) OVERALL HEIGHT	0.812 INCHES NOMINAL
(NON-CORE DATA) OVERALL WIDTH	0.812 INCHES NOMINAL
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	CQR39A1KG224K3P
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILC19978-16
