NSN 5910-01-117-3020 M83500/01-0016, M83500010016, MILC835001
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-01-117-3020 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: M83500/01-0016, M83500010016, MILC835001, MILC83500-1, 402850158011, 402-8-50158-011, 46026617, 460266-17, 5910-01-117-3020, 01-117-3020, 5910011173020, 011173020
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 AUG 1981 | 01-117-3020 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |

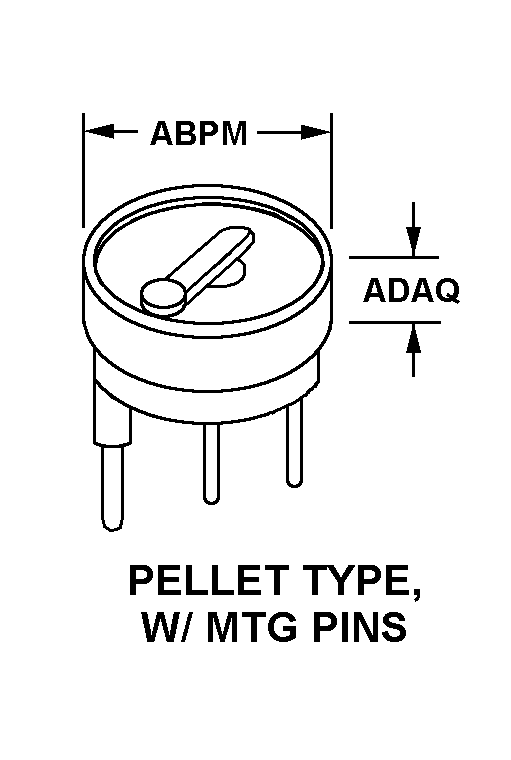

Drawings & Photos | NSN 5910-01-117-3020
Demand History | NSN 5910-01-117-3020
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 402850158011 | 2025-01-23 | 5 | TW |
| 5910-01-117-3020 | 2012-11-311 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-117-3020
Related Products | NSN 5910-01-117-3020
Technical Data | NSN 5910-01-117-3020
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 220.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 58B PELLET TYPE, W/MTG PINS |
| BODY DIAMETER | 0.853 INCHES NOMINAL |
| BODY LENGTH | 0.320 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 2C ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 PIN |
| TERMINAL LENGTH | 0.312 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 33.6000 |
| DC LEAKAGE AT REFERENCE TEMP | 3.000 MICROAMPERES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-C-83500 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-83500/1A GOVERNMENT SPECIFICATION |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| III ANODE TYPE | SOLID |
| III IMPEDANCE AT MINIMUM OPERATING TEMP IN OHMS | 35.0 |
| (NON-CORE DATA) OVERALL LENGTH | 0.365 INCHES MAXIMUM |
| III DC LEAKAGE AT MAXIMUM OPERATING TEMP | 24.0 MICROAMPERES |
| (NON-CORE DATA) OVERALL HEIGHT | 0.853 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.853 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC83500-1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83500/01-0016 |
