NSN 5910-00-880-2633 VJM4302, 2735-0221-1, 00-880-2633
Product Details | PLASTIC DIELECTRIC FIXED CAPACITOR
5910-00-880-2633 A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: VJM4302, 2735-0221-1, 5910-00-880-2633, 00-880-2633, 5910008802633, 273502211, 008802633
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-880-2633 | 00006 ( CAPACITOR, FIXED, PLASTIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-880-2633
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-880-2633
Technical Data | NSN 5910-00-880-2633
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 50000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 15000.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | 0.0 DEG CELSIUS MINIMUM AND 75.0 DEG CELSIUS MAXIMUM |

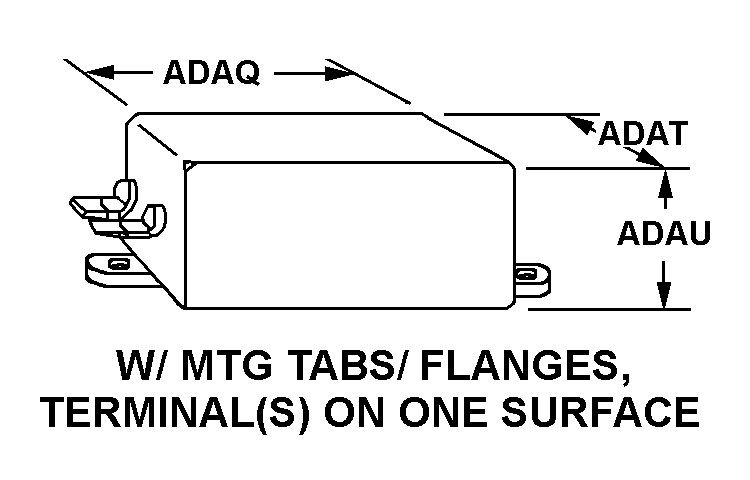

| BODY STYLE | 4A W/MTG TABS/FLANGES, TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 4.562 INCHES NOMINAL |
| BODY WIDTH | 2.500 INCHES NOMINAL |
| BODY HEIGHT | 2.000 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 5.188 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III DIELECTRIC MATERIAL | PLASTIC |
| (NON-CORE DATA) OVERALL LENGTH | 5.688 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 2.500 INCHES NOMINAL |
