NSN 5910-00-880-2596 TWA3S1GS10 , 8837, 181P10303S7
Product Details | PAPER DIELECTRIC FIXED CAPACITOR
5910-00-880-2596 A capacitor whose capacitance value cannot be adjusted or varied, having paper as the dielectric material. It may be a single unit or consist of two or more fixed units which cannot be seperated. For items whose dielectric material consist of plasticized (plastic impregnated) paper or paper-plastic combinations, see CAPACITOR, FIXED, PLASTIC DIELECTRIC. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALIZED, PAPER-PLASTIC DIELECTRIC.
Part Alternates: TWA3S1GS10 , 8837, 181P10303S7, 5910-00-880-2596, 00-880-2596, 5910008802596, 008802596
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-880-2596 | 00003 ( CAPACITOR, FIXED, PAPER DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-880-2596
Demand History | NSN 5910-00-880-2596
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 181P10303S7 | 2020-04-97 | 6 | DIBBS |
| TWA3S1GS10 | 2020-04-97 | 6 | DIBBS |
| 181P10303S7 | 2020-03-84 | 6 | DIBBS |
| TWA3S1GS10 | 2020-03-84 | 6 | DIBBS |
| 181P10303S7 | 2019-09-267 | 6 | DIBBS |
| TWA3S1GS10 | 2019-09-267 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-880-2596
Related Products | NSN 5910-00-880-2596
Technical Data | NSN 5910-00-880-2596
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 10000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 300.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

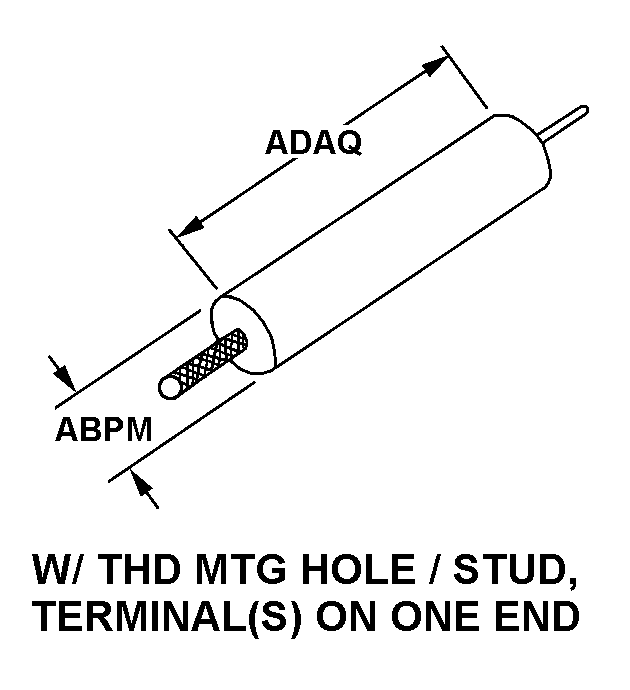

| BODY STYLE | 30B W/THD MTG HOLE/STUD, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.312 INCHES NOMINAL |
| BODY LENGTH | 0.812 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 2C ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.625 INCHES MINIMUM |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| INSULATION RESISTANCE AT REFERENCE TEMP | 20000.0 MEGOHM-MICROFARADS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 1.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| III INTERNAL ELECTRICAL CONNECTION TYPE | EXTENDED FOIL |
| (NON-CORE DATA) OVERALL LENGTH | 0.812 INCHES NOMINAL |
| III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 200.0 MEGOHM-MICROFARADS |
| (NON-CORE DATA) OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.312 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-880-2596
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
