NSN 5910-00-824-9592 CET3A302504K, 579R060H01, 00-824-9592
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-824-9592 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: CET3A302504K, 579R060H01, 5910-00-824-9592, 00-824-9592, 5910008249592, 008249592
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1967 | 00-824-9592 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-824-9592
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-824-9592
Related Products | NSN 5910-00-824-9592
Technical Data | NSN 5910-00-824-9592
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.500 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 3000.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -3.0 TO 5.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |

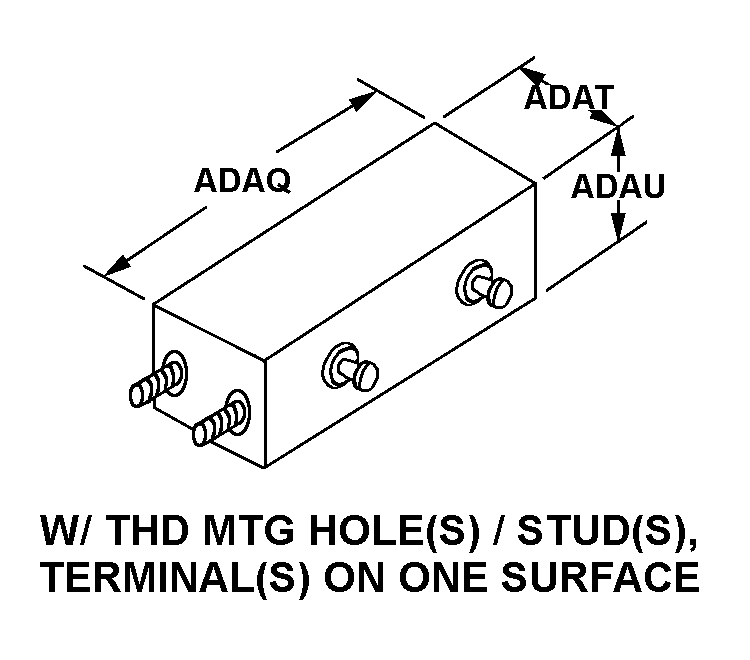

| BODY STYLE | 30A W/THD HOLE(S)/STUD(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 3.000 INCHES NOMINAL |
| BODY WIDTH | 2.380 INCHES NOMINAL |
| BODY HEIGHT | 0.940 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.310 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.094 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.880 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING HOLES |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.312 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 12000.0 MEGOHMS |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 200.0 MEGOHMS |
| (NON-CORE DATA) OVERALL WIDTH | 1.250 INCHES NOMINAL |
