NSN 5910-00-815-4117 ASEL1001 , CB21PE102J, CR21100
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-815-4117 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: ASEL1001 , CB21PE102J, CR21100 , MILC10950, T1162, T11-62 , 66200311A4102J, 662-00311A4-102J, 74907822 , 80369155665, 803-6915566-5 , 106296, 450867S61 , 50867S, 00044 , 5910-00-815-4117, 00-815-4117, 5330008154041 , 5910008154117, 008154117
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-815-4117 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-815-4117
Demand History | NSN 5910-00-815-4117
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 00044 | 2011-04-102 | 30 | US |
| MILC10950 | 2007-04-93 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-815-4117
Related Products | NSN 5910-00-815-4117
Technical Data | NSN 5910-00-815-4117
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -5.00 TO 5.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO 100.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

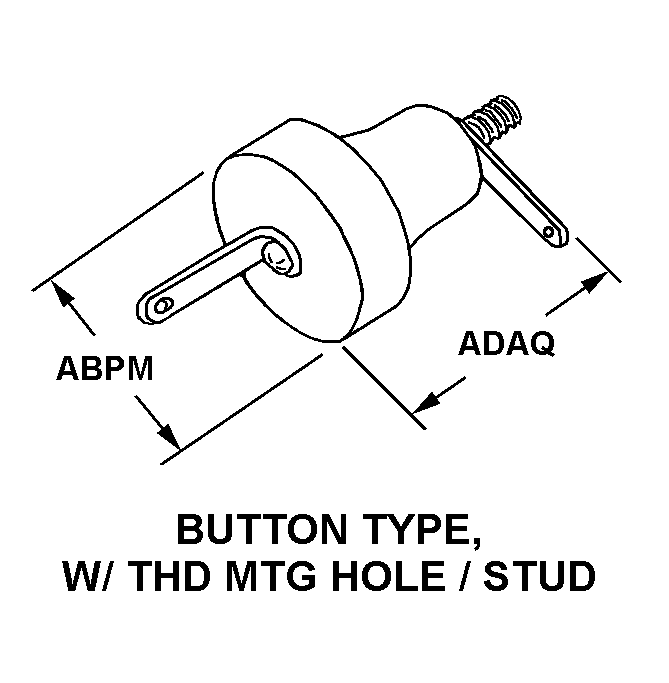

| BODY STYLE | 46B BUTTON TYPE, W/THD MTG HOLE/STUD |
| BODY DIAMETER | 0.450 INCHES NOMINAL |
| BODY LENGTH | 0.380 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED MOUNTING HOLES |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.099 INCHES |
| QUALITY FACTOR AT REFERENCE TEMP | 1000.0000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-C-10950 SPECIFICATION |
| III TERMINAL SURFACE TREATMENT | SILVER |
| (NON-CORE DATA) OVERALL LENGTH | 0.655 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.450 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.584 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CB21PE102J |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC10950 |
