NSN 5910-00-815-5745 CM55C113JN3, MILC59, MILC5-9
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-815-5745 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: CM55C113JN3, MILC59, MILC5-9, 5910-00-815-5745, 00-815-5745, 5910008155745, 008155745
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-815-5745 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-815-5745
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-815-5745
Technical Data | NSN 5910-00-815-5745
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 11000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -5.00 TO 5.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 1200.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -200.0 TO 200.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

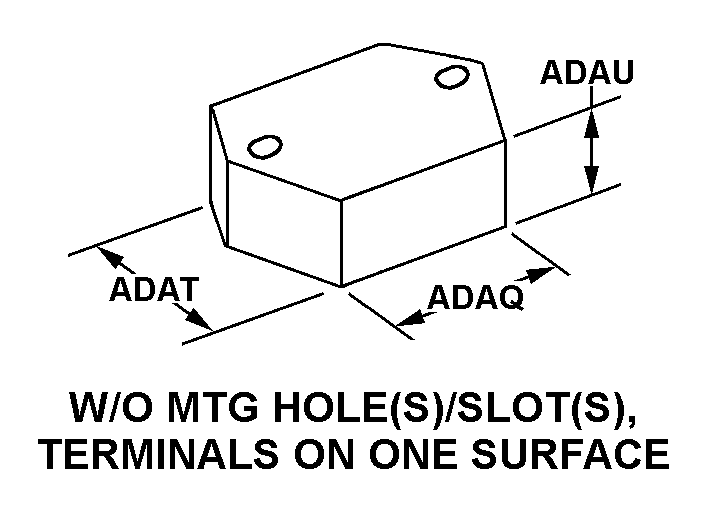

| BODY STYLE | 33A W/O MTG HOLE(S)/SLOT(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 1.750 INCHES NOMINAL |
| BODY WIDTH | 1.312 INCHES NOMINAL |
| BODY HEIGHT | 0.469 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 THREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 1.250 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-C-5 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-5/9E GOVERNMENT SPECIFICATION |
| (NON-CORE DATA) OVERALL LENGTH | 1.750 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 1.313 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | CM55C113JN3 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC5-9 |
