Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-794-9073 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: 1601043, 160-104-3, 5910-00-794-9073, 00-794-9073, 5910007949073, 007949073
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-794-9073 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |

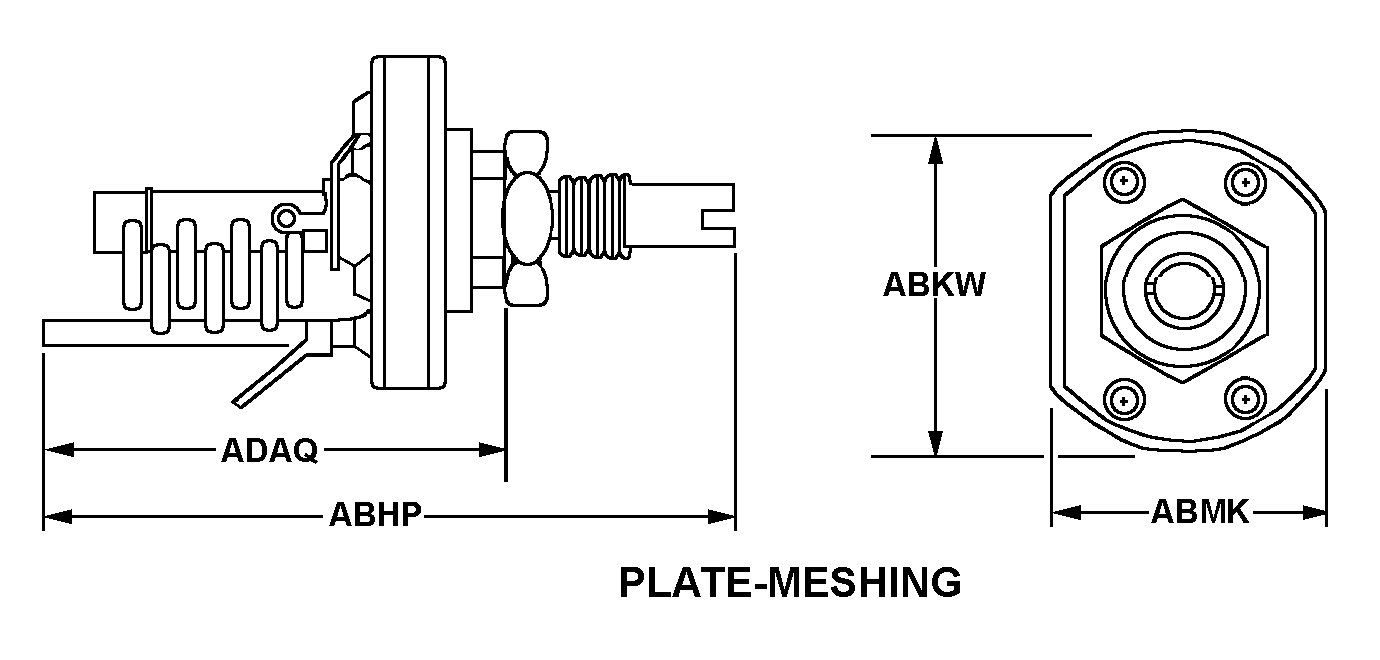

Drawings & Photos | NSN 5910-00-794-9073
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-794-9073
Related Products | NSN 5910-00-794-9073
Technical Data | NSN 5910-00-794-9073
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 1.8 TO 8.7 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 1250.0 AC PEAK SINGLE SECTION |
| TUNING CHARACTERISTIC | STRAIGHT LINE CAPACITY SINGLE SECTION |
| BODY STYLE | 37 PLATE-MESHING |
| OVERALL LENGTH | 1.313 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 0.650 INCHES NOMINAL |
| BODY LENGTH | 0.813 INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.188 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.500 INCHES NOMINAL SINGLE SHAFT |
| ADJUSTMENT DEVICE ROTATION | 180.0 DEGREES NOMINAL CLOCKWISE OR 180.0 DEGREES NOMINAL COUNTERCLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2B |
| III PLATE QUANTITY | 9 |
| III PLATE AIR GAP | 0.017 INCHES |
