NSN 5910-00-567-9116 50, 920-0057-00, 00-567-9116
Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-567-9116 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: 50, 920-0057-00, 5910-00-567-9116, 00-567-9116, 5910005679116, 005679116, 920005700
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-567-9116 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-567-9116
Demand History | NSN 5910-00-567-9116
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50 | 2008-09-255 | 20 | Argentina |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-567-9116
Related Products | NSN 5910-00-567-9116
Technical Data | NSN 5910-00-567-9116
| Characteristic | Specifications |
|---|---|
| INDIVIDUAL SECTION QUANTITY | 4 |
| CAPACITANCE RANGE IN PICOFARADS | 0.0 TO 241.2 ALL SECTIONS |
| NONDERATED VOLTAGE RATING AND TYPE | 600.0 AC PEAK ALL SECTIONS |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| TUNING CHARACTERISTIC | STRAIGHT LINE FREQUENCY ALL SECTIONS |

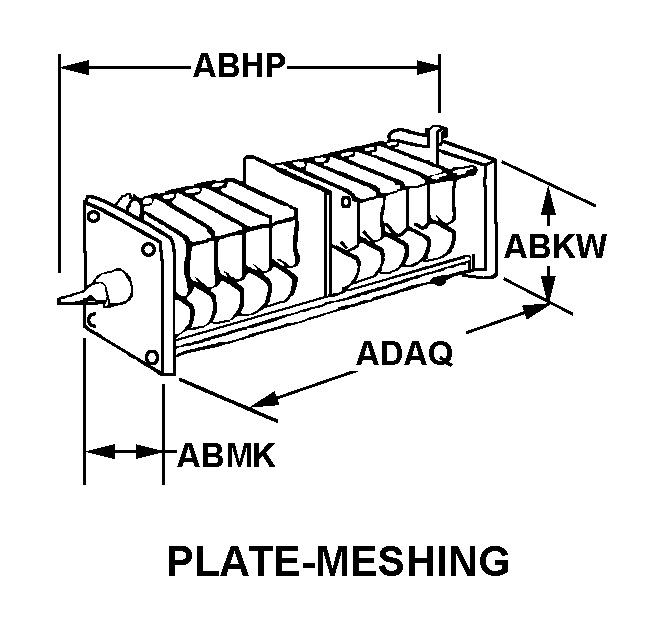

| BODY STYLE | 29 PLATE-MESHING |
| OVERALL LENGTH | 7.218 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| OVERALL WIDTH | 3.188 INCHES NOMINAL |
| BODY LENGTH | 5.000 INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 2.156 INCHES NOMINAL SINGLE SHAFT |
| ADJUSTMENT DEVICE ROTATION | 180.0 DEGREES NOMINAL COUNTERCLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 12 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-567-9116
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-567-9116
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
