Product Details | AIR DIELECTRIC VARIABLE CAPACITOR

5910-00-493-1748 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.

Part Alternates: 1480002001, 148-0002-001, 4032, 403-2, 5011852, 501185-2, 5910-00-493-1748, 00-493-1748, 5910004931748, 004931748

Electrical and Electronic Equipment Components | Capacitors

Supply Group (FSG) NSN Assign. NIIN
59 23 MAR 1972 00-493-1748

Drawings & Photos | NSN 5910-00-493-1748


Demand History | NSN 5910-00-493-1748

Part Number Request Date QTY Origin
5910-00-493-1748 2013-10-297 40 DIBBS
5910-00-493-1748 2013-10-282 40 DIBBS
5910-00-493-1748 2013-04-93 40 DIBBS

Cross Reference | NSN 5910-00-493-1748

Part Number Cage Code Manufacturer
148-0002-001 71313 VIKING TECHNOLOGIES, LTD.
148-0002-001 74970 VIKING TECHNOLOGIES, LTD.
403-2 70779 GENERAL INSTRUMENT CORP COMPUTER PRODUCTS DIV
501185-2 31550 EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5910-00-493-1748

Technical Data | NSN 5910-00-493-1748

Characteristic Specifications
CAPACITANCE RANGE IN PICOFARADS 2.6 TO 25.0 SINGLE SECTION
NONDERATED VOLTAGE RATING AND TYPE 375.0 DC CONTINUOUS SINGLE SECTION
NONDERATED OPERATING TEMP -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS 50.0 SINGLE SECTION
TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS -20.0 TO 20.0 SINGLE SECTION
TUNING CHARACTERISTIC STRAIGHT LINE CAPACITY SINGLE SECTION

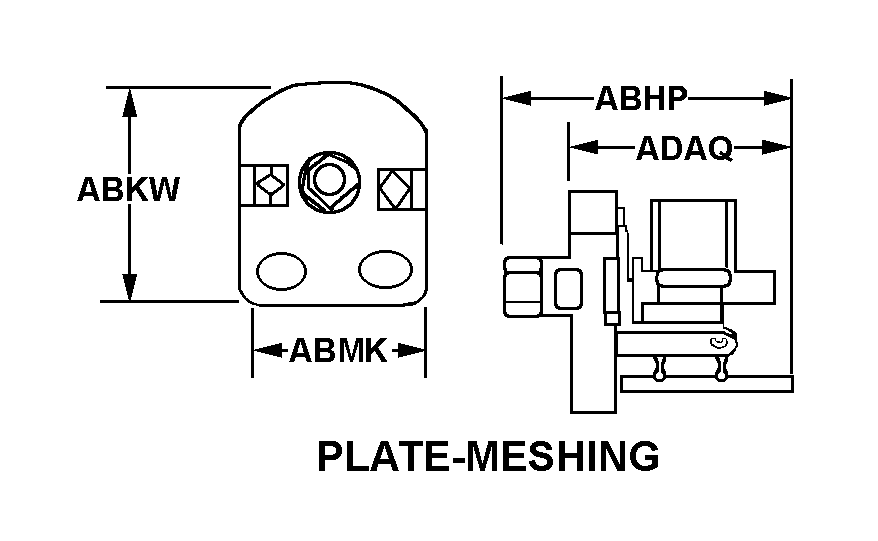

BODY STYLE 38 PLATE-MESHING
OVERALL LENGTH 1.125 INCHES NOMINAL
OVERALL HEIGHT 0.906 INCHES NOMINAL
OVERALL WIDTH 0.781 INCHES NOMINAL
BODY LENGTH 0.938 INCHES NOMINAL
INCLOSURE TYPE UNINCLOSED
ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY 1 SLOTTED SCREW
ADJUSTMENT DEVICE ROTATION 180.0 DEGREES NOMINAL CLOCKWISE
ADJUSTMENT DEVICE TORQUE 2.500 INCH-OUNCES MINIMUM AND 15.000 INCH-OUNCES MAXIMUM
TERMINAL TYPE AND QUANTITY 2 TAB, SOLDER LUG
MOUNTING FACILITY TYPE AND QUANTITY 2 THREADED HOLE
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.112 INCHES
THREAD CLASS ANY ACCEPTABLE
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH 0.531 INCHES NOMINAL
III SPLIT-STATOR ROTARY PLATE TYPE DIFFERENTIAL
III QUALITY FACTOR AT 25 DEG CELSIUS 1500.0
