5910-00-445-6859 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.

Part Alternates: AP-9-B, AP9B10A, 94117260353, 9411-72-60353, AP9B, 43226, 5910-00-445-6859, 00-445-6859, 5910004456859, 004456859

Electrical and Electronic Equipment Components | Capacitors

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-445-6859

Drawings & Photos | NSN 5910-00-445-6859


Cross Reference | NSN 5910-00-445-6859

Part Number Cage Code Manufacturer
43226 15280 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION
43226 24930 EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA
43226 26916 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
43226 55631 SCOMILL INC
9411-72-60353 56394 PAX MFG CORP HAMMARLUND MFG CO DIV
9411-72-60353 71313 VIKING TECHNOLOGIES, LTD.
AP-9-B 78712 TELERADIO ENGINEERING CORP
AP9B10A 53373 MIDLAND-ROSS CORP CAMBION DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5910-00-445-6859

Technical Data | NSN 5910-00-445-6859

Characteristic Specifications
CAPACITANCE RANGE IN PICOFARADS 9.0 TO 150.0 SINGLE SECTION
TUNING CHARACTERISTIC STRAIGHT LINE CAPACITY SINGLE SECTION

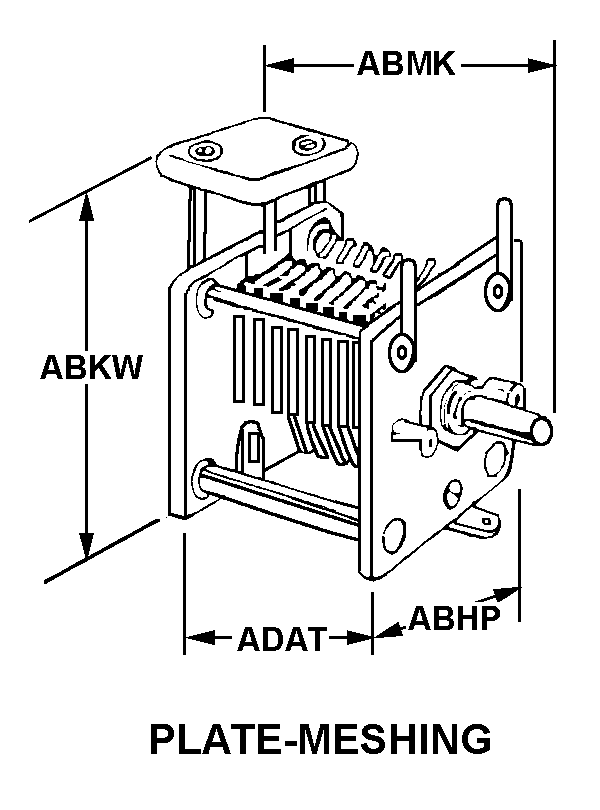

BODY STYLE 30 PLATE-MESHING
OVERALL LENGTH 1.000 INCHES NOMINAL
OVERALL HEIGHT 1.438 INCHES NOMINAL
OVERALL WIDTH 2.813 INCHES NOMINAL
BODY WIDTH 2.313 INCHES NOMINAL
INCLOSURE TYPE UNINCLOSED
ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY 1 KNOB
ADJUSTMENT DEVICE ROTATION 180.0 DEGREES NOMINAL CLOCKWISE
TERMINAL TYPE AND QUANTITY 2 TAB, SOLDER LUG
MOUNTING FACILITY TYPE AND QUANTITY 3 THREADED HOLE
MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD SIZE 0.138 INCHES
THREAD CLASS 2B
