NSN 5910-00-443-9242 M39003/01-3166, M39003012206, M39003-01-2206

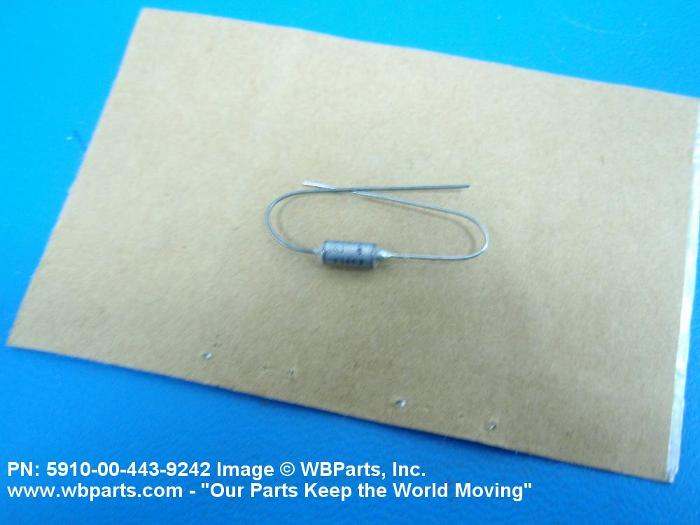

Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-443-9242 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: M39003/01-3166, M39003012206, M39003-01-2206, M39003013166, MILC390031, MILC39003-1, 1849085650, 184-9085-650, 5910-00-443-9242, 00-443-9242, 5910004439242, 004439242
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JUN 1974 | 00-443-9242 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-00-443-9242
Demand History | NSN 5910-00-443-9242
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-00-443-9242 | 2024-10-288 | 31 | DIBBS |
| 5910-00-443-9242 | 2024-08-242 | 18 | DIBBS |
| 5910-00-443-9242 | 2024-07-204 | 1 | DIBBS |
| 5910-00-443-9242 | 2024-07-204 | 2 | DIBBS |
| M39003012206 | 2008-10-295 | 2 | United States |
Cross Reference | NSN 5910-00-443-9242
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-443-9242
Related Products | NSN 5910-00-443-9242
Technical Data | NSN 5910-00-443-9242
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.082 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 100.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 26B W/O MTG FACILITIES, AXIAL TERMINALS |
| BODY DIAMETER | 0.135 INCHES NOMINAL |
| BODY LENGTH | 0.286 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 3C ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.020 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 2.0000 |
| DC LEAKAGE AT REFERENCE TEMP | 0.500 MICROAMPERES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-C-39003 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39003/1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC39003-1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39003/01-3166 |
