NSN 5910-00-257-2875 16769965001, 16769965-001, 00-257-2875
Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-257-2875 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: 16769965001, 16769965-001, 5910-00-257-2875, 00-257-2875, 5910002572875, 002572875
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JAN 1972 | 00-257-2875 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-257-2875
Cross Reference | NSN 5910-00-257-2875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16769965-001 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-257-2875
Technical Data | NSN 5910-00-257-2875
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 10.0 TO 365.0 SINGLE SECTION |

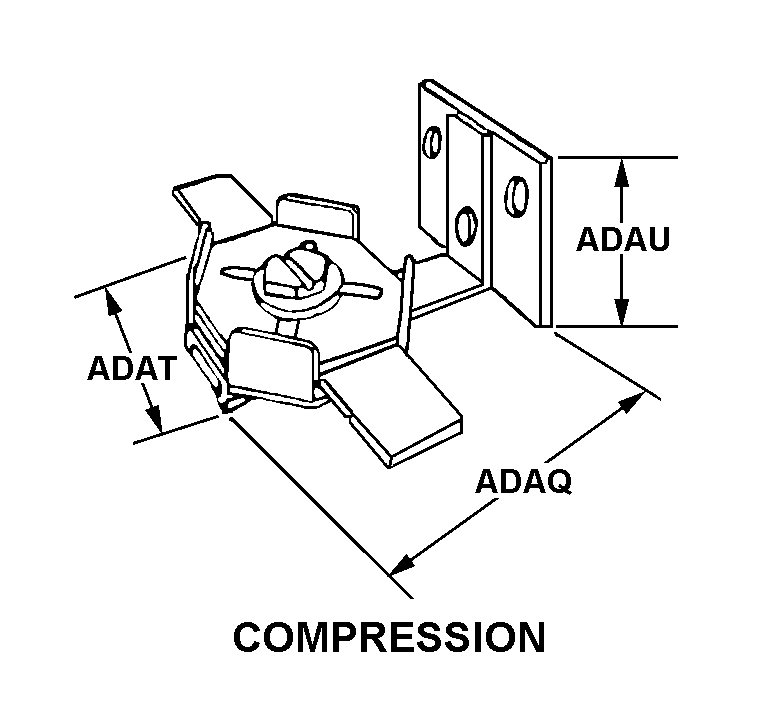

| BODY STYLE | 9 COMPRESSION |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| BODY HEIGHT | 0.500 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 HEX NUT |
| ADJUSTMENT DEVICE ROTATION | 180.0 DEGREES NOMINAL CLOCKWISE |
| TERMINAL LENGTH | 0.375 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-257-2875
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
