NSN 5910-00-192-2315 APC10, 94117250031, 9411-72-50031
Product Details | AIR DIELECTRIC VARIABLE CAPACITOR
5910-00-192-2315 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: APC10, 94117250031, 9411-72-50031, 48757, 5910-00-192-2315, 00-192-2315, 5910001922315, 001922315
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-192-2315 | 00531 ( CAPACITOR, VARIABLE, AIR DIELECTRIC ) |

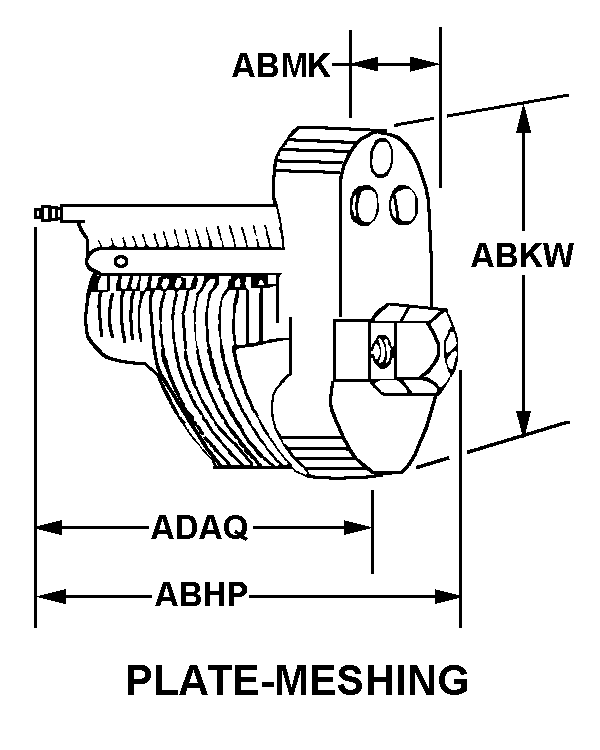

Drawings & Photos | NSN 5910-00-192-2315
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-192-2315
Technical Data | NSN 5910-00-192-2315
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 2.0 TO 10.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 850.0 AC PEAK SINGLE SECTION |
| TUNING CHARACTERISTIC | STRAIGHT LINE CAPACITY SINGLE SECTION |
| BODY STYLE | 32 PLATE-MESHING |
| OVERALL LENGTH | 1.157 INCHES NOMINAL |
| OVERALL HEIGHT | 1.219 INCHES NOMINAL |
| OVERALL WIDTH | 0.938 INCHES NOMINAL |
| BODY LENGTH | 0.797 INCHES NOMINAL |
| INCLOSURE TYPE | UNINCLOSED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE ROTATION | 180.0 DEGREES NOMINAL CLOCKWISE AND 180.0 DEGREES NOMINAL COUNTERCLOCKWISE |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG AND 2 SOLDER STUD |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.112 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.656 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-192-2315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-192-2315
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
