NSN 5910-00-191-9767 GA50491L14, KS9943L98, KS-9943L98
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-191-9767 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: GA50491L14, KS9943L98, KS-9943L98, 65300909A5102M, 653-009-09A5-102M, 7599088, 5910-00-191-9767, 00-191-9767, 5910001919767, 001919767
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-191-9767 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-191-9767
Cross Reference | NSN 5910-00-191-9767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 653-009-09A5-102M | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 7599088 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| GA50491L14 | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| GA50491L14 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| GA50491L14 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| KS-9943L98 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-191-9767
Related Products | NSN 5910-00-191-9767
Technical Data | NSN 5910-00-191-9767
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO 20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -200.0 TO 200.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

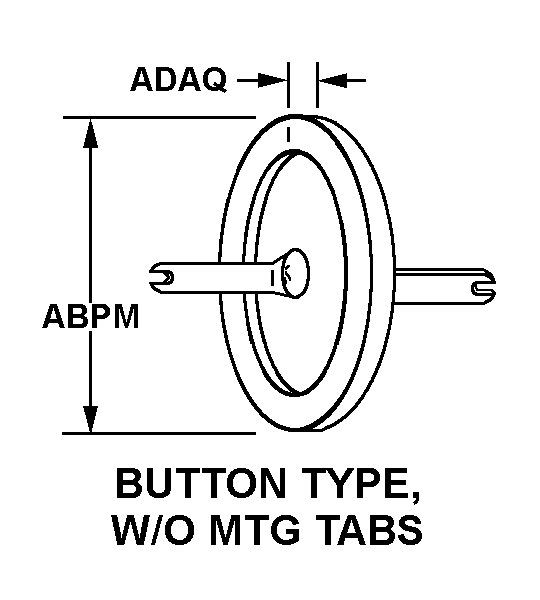

| BODY STYLE | 44B BUTTON TYPE, W/O MTG TABS |
| BODY DIAMETER | 0.463 INCHES MAXIMUM |
| BODY LENGTH | 0.085 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 17C FEEDTHROUGH |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| (NON-CORE DATA) OVERALL LENGTH | 0.085 INCHES MAXIMUM |
