NSN 5910-00-191-8558 B103442 , BR100525B, BR10052-5B
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-191-8558 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: B103442 , BR100525B, BR10052-5B , SK5610, ES692649, 22G7281, 22G728-1, 35019, 3DB57, 3DB5-7, 6350, 63502E, 6350-2E, 5910-00-191-8558, 00-191-8558, 5910001918558, 001918558
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-191-8558 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-00-191-8558
Demand History | NSN 5910-00-191-8558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6350 | 2014-12-353 | 1 | United States |
| 6350 | 2014-11-324 | 3 | United States |
Cross Reference | NSN 5910-00-191-8558
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22G728-1 | 20284 | TARGET CORPORATION DBA TARGET |
| 35019 | 78711 | TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION |
| 3DB5-7 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 6350 | 57712 | TELEMECHANICS INC |
| 6350 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| 6350-2E | 00781 | CESSNA AIRCRAFT CO ARC AVIONICS DIV |
| B103442 | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| B103442 | 14655 | CORNELL-DUBILIER ELECTRONICS |
| B103442 | 20284 | TARGET CORPORATION DBA TARGET |
| B103442 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| B103442 | 78711 | TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION |
| B103442 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| BR10052-5B | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| BR10052-5B | 14655 | CORNELL-DUBILIER ELECTRONICS |
| ES692649 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| ES692649 | 70408 | AT AND T CORP |
| SK5610 | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| SK5610 | 14655 | CORNELL-DUBILIER ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-191-8558
Related Products | NSN 5910-00-191-8558
Technical Data | NSN 5910-00-191-8558
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 5.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 150.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 300.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -40.0 DEG CELSIUS MINIMUM AND 65.0 DEG CELSIUS MAXIMUM |

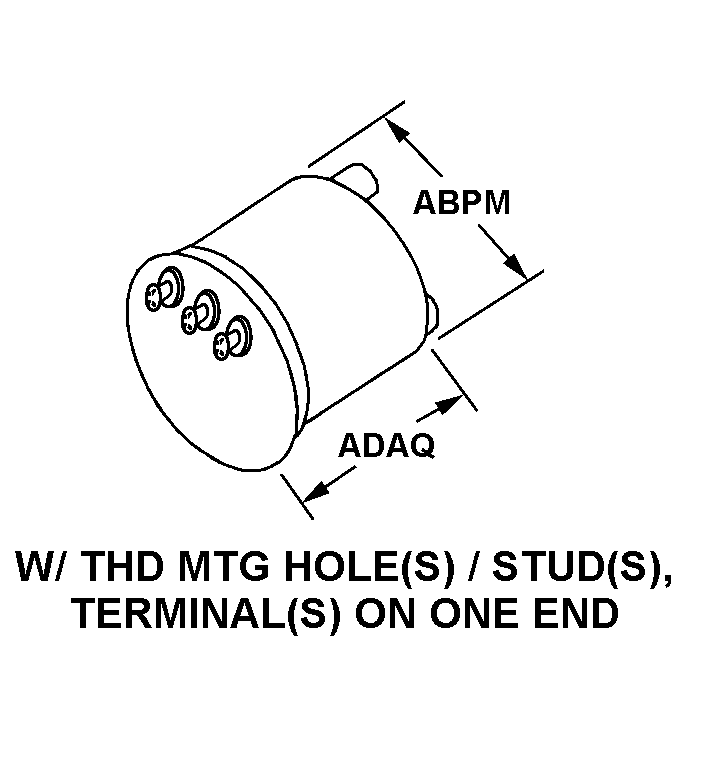

| BODY STYLE | 51B W/THD MTG HOLE(S)/STUD(S) TERMINAL(S) ON ONE END |
| BODY DIAMETER | 1.156 INCHES NOMINAL |
| BODY LENGTH | 0.938 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 2C ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING HOLES |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| III ANODE TYPE | PLAIN FOIL |
| (NON-CORE DATA) OVERALL HEIGHT | 1.156 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-191-8558
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-191-8558
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
