NSN 5910-00-128-2560 NF01UF, NF10000P0M10600VPCW, NF10000P0M10-600VPCW
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-128-2560 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: NF01UF, NF10000P0M10600VPCW, NF10000P0M10-600VPCW, NF10000P0RM10, FARAD0NNF, K3633114REV8, K36331-14REV8, NF, 5910-00-128-2560, 00-128-2560, 5910001282560, 001282560
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-128-2560 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-128-2560
Cross Reference | NSN 5910-00-128-2560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FARAD0NNF | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| K36331-14REV8 | 21921 | RCA CORP DISTRIBUTOR AND SPECIAL PRODUCTS DIV |
| NF | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| NF | 14655 | CORNELL-DUBILIER ELECTRONICS |
| NF01UF | 00853 | CORNELL-DUBILIER MARKETING, INC. |
| NF01UF | 14655 | CORNELL-DUBILIER ELECTRONICS |
| NF10000P0M10-600VPCW | 11447 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST |
| NF10000P0M10-600VPCW | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| NF10000P0RM10 | 11447 | L-3 COMMUNICATIONS CORPORATION DBA COMMUNICATION SYSTEMS - EAST |
| NF10000P0RM10 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-128-2560
Related Products | NSN 5910-00-128-2560
Technical Data | NSN 5910-00-128-2560
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 10000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 1200.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

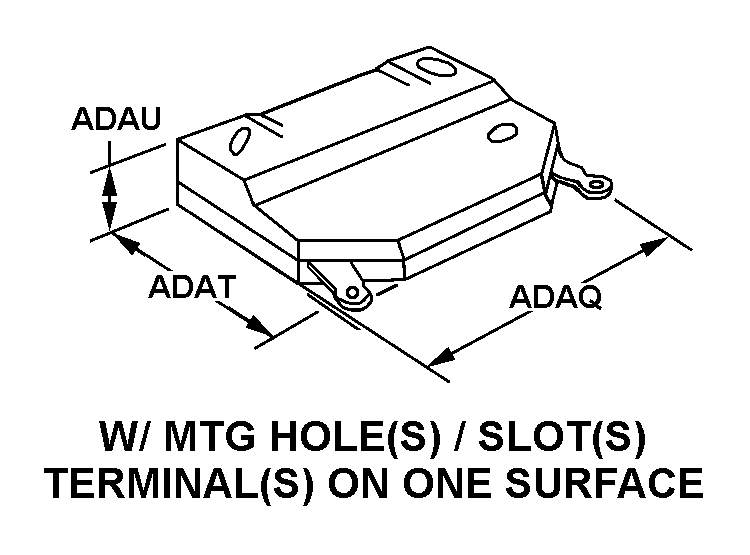

| BODY STYLE | 34A W/MTG HOLE(S)/SLOT(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 1.812 INCHES NOMINAL |
| BODY WIDTH | 1.438 INCHES NOMINAL |
| BODY HEIGHT | 0.562 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 5C TWO COMMON TERMINALS FOR EACH ELECTRODE |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 MOUNTING SLOTS |
| MOUNTING SLOT WIDTH | 0.138 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 1.406 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| (NON-CORE DATA) OVERALL LENGTH | 1.812 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.562 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 1.438 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-128-2560
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-128-2560
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
