NSN 5910-00-128-0414 M7468877P6, BE15210, BE152101000TERM0NSI
Product Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-128-0414 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: M7468877P6, BE15210, BE152101000TERM0NSI, BE15210-1000TERM0NSI, 22G576, 564081, 5910-00-128-0414, 00-128-0414, 5910001280414, 001280414
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-128-0414 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
Drawings & Photos | NSN 5910-00-128-0414
Cross Reference | NSN 5910-00-128-0414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22G576 | 20284 | TARGET CORPORATION DBA TARGET |
| 564081 | 57733 | STEWART-WARNER CORPORATION |
| BE15210 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| BE15210-1000TERM0NSI | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| M7468877P6 | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-128-0414
Related Products | NSN 5910-00-128-0414
Technical Data | NSN 5910-00-128-0414
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 750.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

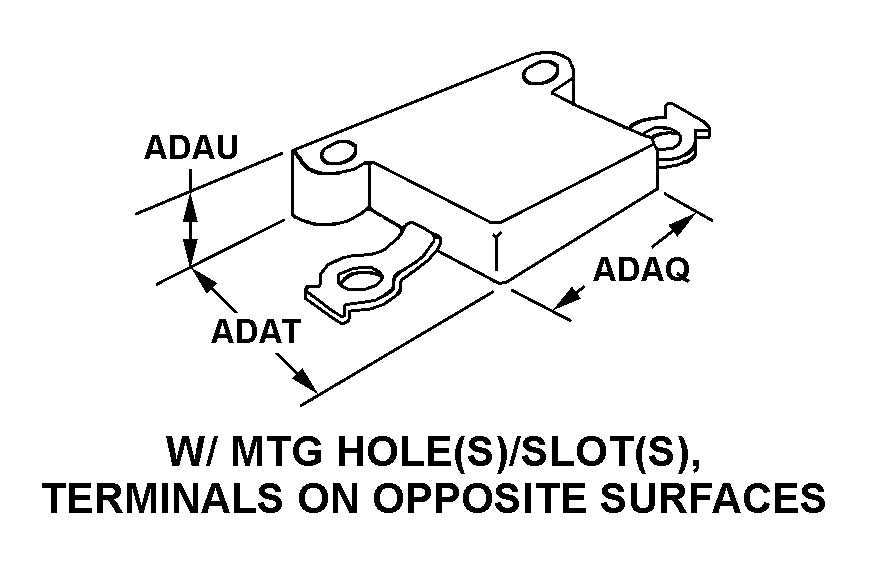

| BODY STYLE | 36A W/MTG HOLE(S)/SLOT(S), TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 1.203 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| BODY HEIGHT | 0.375 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 1.750 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 MOUNTING SLOTS |
| MOUNTING SLOT WIDTH | 0.144 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 0.719 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| (NON-CORE DATA) OVERALL LENGTH | 2.250 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.375 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL WIDTH | 1.000 INCHES NOMINAL |
