NSN 5910-00-113-9883 M39006/03-1380, M39006/03-1429, M39006031380
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-113-9883 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: M39006/03-1380, M39006/03-1429, M39006031380, M39006031429, H5470001500100384Q3, H547-0001-5001003-8-4Q3 , SS8452110239PC142IN, SS845-2110239PC14-2IN , SS8452110239PC142INQ3, SS845-2110239PC14-2INQ3 , MILC390063, MILC39006-3, 002182400010001, 002-18-24-0001-0001 , 002182400010001Q3, 002-18-24-0001-0001Q3 , 10394288004, 10394288-004, 2620926X3PC142IN, 2620-926X3PC14-2IN , 2620926X3PC142INQ3, 2620-926X3PC14-2INQ3 , 262192603PC182IN, 2621-926-03PC18-2IN , 262192603PC182INQ3, 2621-926-03PC18-2INQ3 , 262192603PC18ACLJ2IN, 2621-926-03PC18ACLJ2IN , 262192603PC18ACLJ2INQ3, 2621-926-03PC18ACLJ2INQ3 , 29800140PC8TFN, 298-00-140PC8TFN , 5910-00-113-9883, 00-113-9883, 5910001139883, 001139883
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 JAN 1973 | 00-113-9883 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |

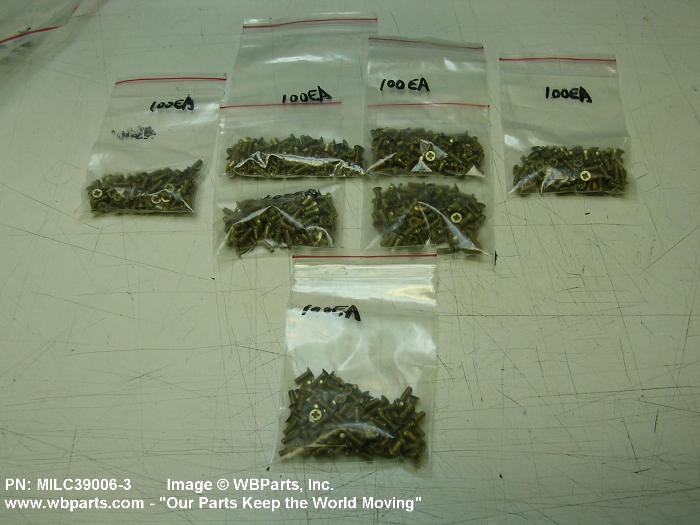

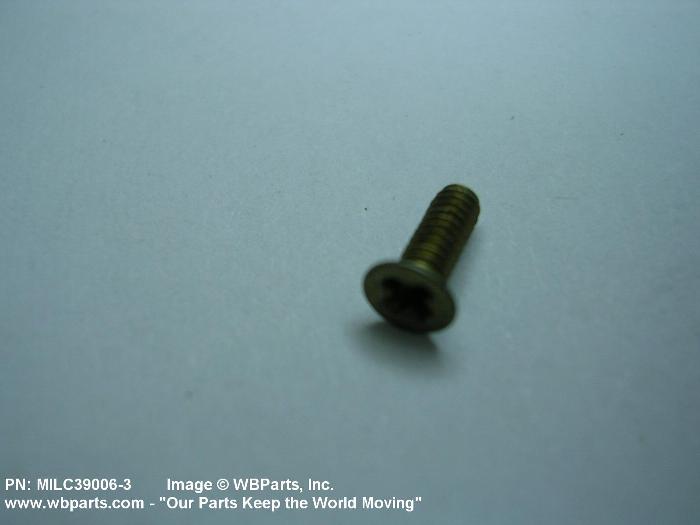

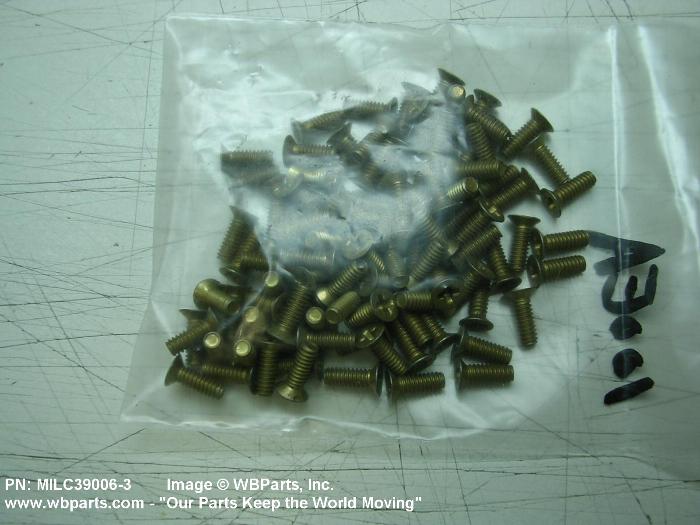

Drawings & Photos | NSN 5910-00-113-9883
Cross Reference | NSN 5910-00-113-9883
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-113-9883
Technical Data | NSN 5910-00-113-9883
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 10.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -15.00 TO 15.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 200.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 26B W/O MTG FACILITIES, AXIAL TERMINALS |
| BODY DIAMETER | 0.406 INCHES MAXIMUM |
| BODY LENGTH | 2.187 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.500 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 10.0000 |
| DC LEAKAGE AT REFERENCE TEMP | 28.000 MICROAMPERES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.1000 |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-C-39006 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39006/3 GOVERNMENT SPECIFICATION |
| III MIL-STD-1276 WIRE LEAD TYPE DESIGNATOR | N-3 |
| III ANODE TYPE | PLAIN FOIL |
| III IMPEDANCE AT MINIMUM OPERATING TEMP IN OHMS | 200.0 |
| (NON-CORE DATA) OVERALL LENGTH | 2.625 INCHES MAXIMUM |
| III DC LEAKAGE AT MAXIMUM OPERATING TEMP | 100.0 MICROAMPERES |
| (NON-CORE DATA) OVERALL HEIGHT | 0.406 INCHES MAXIMUM |
| (NON-CORE DATA) OVERALL WIDTH | 0.406 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC39006-3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39006/03-1429 |
Restrictions/Controls & Freight Information | NSN 5910-00-113-9883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-113-9883
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
