NSN 5905-01-470-2959 87016C2002GC, 01-470-2959, 014702959
Product Details | FILM FIXED RESISTOR NETWORK
5905-01-470-2959 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: 87016C2002GC, 5905-01-470-2959, 01-470-2959, 5905014702959, 014702959
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 1999 | 01-470-2959 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-470-2959
Demand History | NSN 5905-01-470-2959
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-470-2959 | 2012-02-52 | 2 | DIBBS |
| 5905-01-470-2959 | 2011-08-221 | 2 | DIBBS |
| 5905-01-470-2959 | 2011-06-171 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-470-2959
Related Products | NSN 5905-01-470-2959
Technical Data | NSN 5905-01-470-2959
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 20.000 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 10 EACH RESISTOR |
| RESISTANCE TOLERANCE IN PERCENT | -2.000 TO 2.000 |
| POWER DISSIPATION RATING IN WATTS | 1.000 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 70.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 125.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -25.0 TO 25.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 125.0 |
| SCHEMATIC DIAGRAM DESIGNATOR | 1 ISOLATED ARRAY |
| INCLOSURE METHOD | UNINCLOSED |

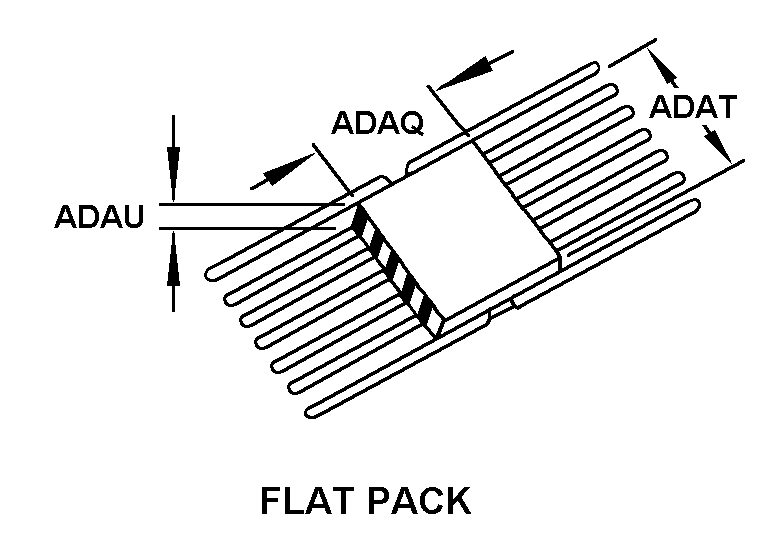

| STYLE DESIGNATOR | 219 FLAT PACK |
| BODY LENGTH | 0.342 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |
| BODY WIDTH | 0.085 INCHES MAXIMUM |
| BODY HEIGHT | 0.342 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |
| TERMINAL TYPE | TERMINAL TYPE PER BODY STYLE |
| TERMINAL QUANTITY | 20 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.085 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-01-470-2959
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5905-01-470-2959
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
