Product Details | FILM FIXED RESISTOR
5905-01-407-0235 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: MIL-PRF-55182/9, MILPRF551829, MIL-R-55182/9, MILR551829, RNC90Y4K6400TR, 5905-01-407-0235, 01-407-0235, 5905014070235, 014070235
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 JAN 1995 | 01-407-0235 | 05311 ( RESISTOR, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-407-0235
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-407-0235
Related Products | NSN 5905-01-407-0235
Technical Data | NSN 5905-01-407-0235
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 4.640 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -0.010 TO 0.010 |
| POWER DISSIPATION RATING IN WATTS | 0.300 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 125.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 175.0 |
| INCLOSURE METHOD | ENCAPSULATED |

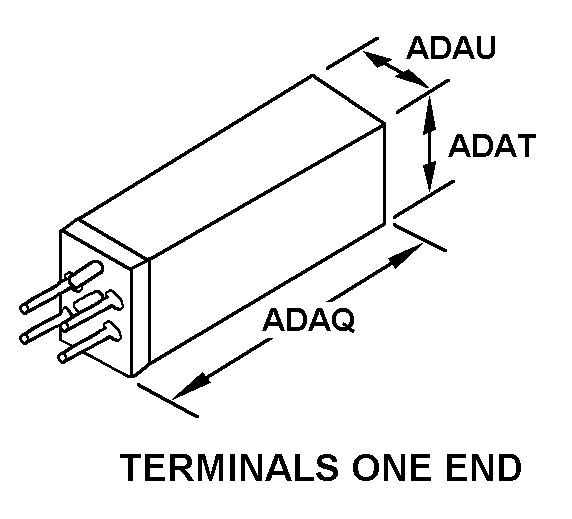

| STYLE DESIGNATOR | 152 TERMINALS ONE END |
| BODY LENGTH | 0.336 INCHES MAXIMUM |
| BODY WIDTH | 0.290 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| BODY HEIGHT | 0.095 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| TERMINAL TYPE | PIN |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.100 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-55182/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RNC90Y4K6400TR |
