NSN 5905-01-234-3056 M8340109K2001GC, MIL-R-83401/9, MILR834019
Product Details | FILM FIXED RESISTOR NETWORK
5905-01-234-3056 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.
Part Alternates: M8340109K2001GC, MIL-R-83401/9, MILR834019, 10129696 , 110A202, 4610X101202, 4610X101-202, 5905-01-234-3056, 01-234-3056, 5905012343056, 012343056
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JUN 1986 | 01-234-3056 | 32068 ( RESISTOR NETWORK, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-234-3056
Demand History | NSN 5905-01-234-3056
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-234-3056 | 2022-11-317 | 625 | DIBBS |
Cross Reference | NSN 5905-01-234-3056
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-234-3056
Related Products | NSN 5905-01-234-3056
Technical Data | NSN 5905-01-234-3056
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 2.000 KILOHMS |
| IDENTICAL VALUE RESISTOR QUANTITY | 16 EACH RESISTOR |
| RESISTANCE TOLERANCE IN PERCENT | -2.000 TO 2.000 |
| POWER DISSIPATION RATING IN WATTS | 1.080 TOTAL NETWORK |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 70.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 125.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -100.0 TO 100.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 125.0 |

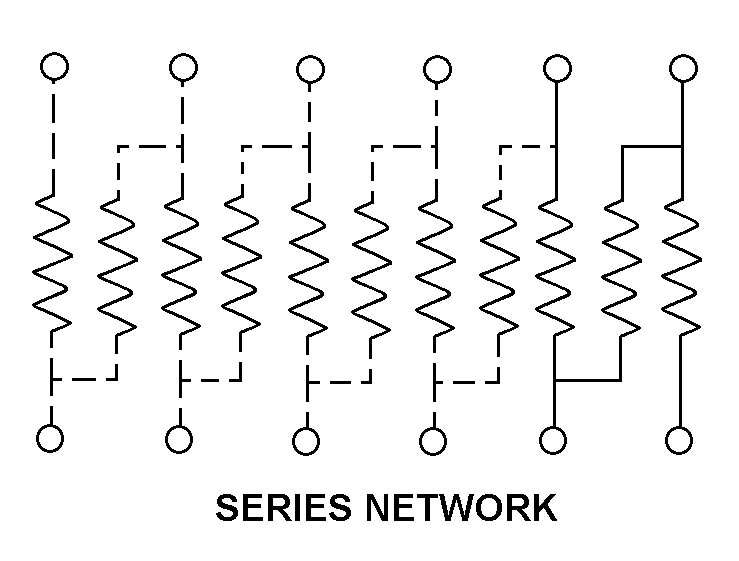

| SCHEMATIC DIAGRAM DESIGNATOR | 5 SERIES NETWORK |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | 218 SINGLE INLINE |
| BODY LENGTH | 0.983 INCHES NOMINAL |
| BODY WIDTH | 0.074 INCHES NOMINAL |
| BODY HEIGHT | 0.187 INCHES NOMINAL |
| TERMINAL TYPE | PIN |
| TERMINAL QUANTITY | 10 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.125 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-R-83401 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-83401/9 GOVERNMENT SPECIFICATION |
| III END ITEM IDENTIFICATION | B1B ACFT OAS |
| III UNPACKAGED UNIT WEIGHT | 1.6 GRAMS |
| (NON-CORE DATA) CUBIC MEASURE | 0.014 CUBIC INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-83401/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M8340109K2001GC |
