Product Details | FILM FIXED RESISTOR

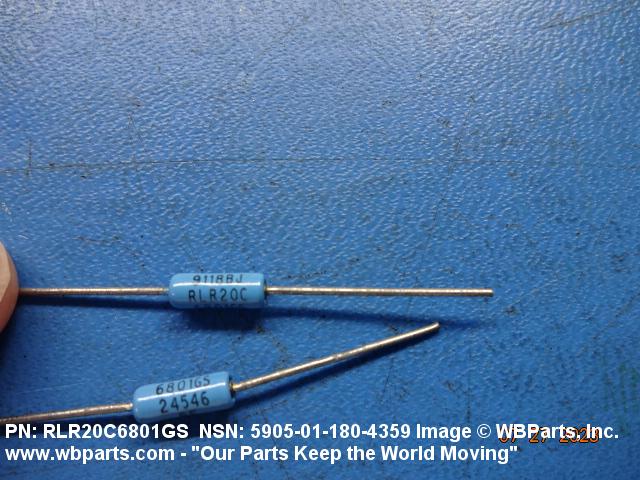

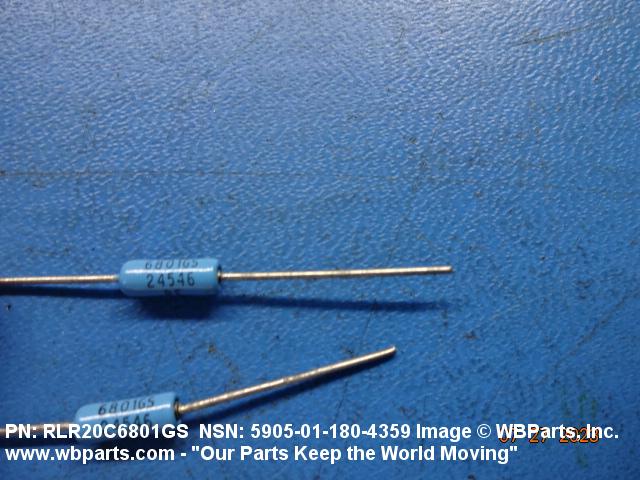

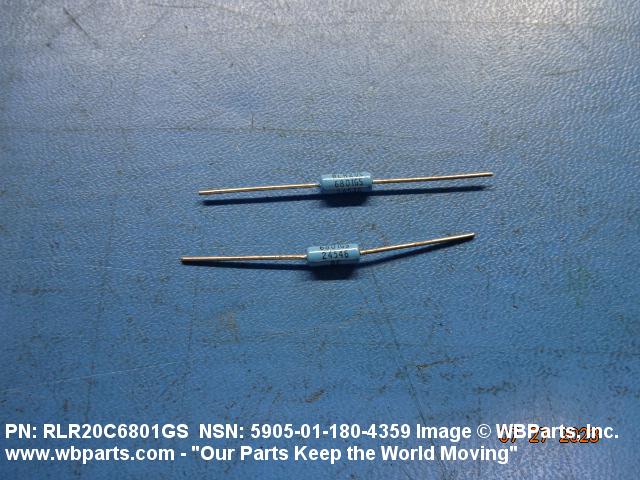

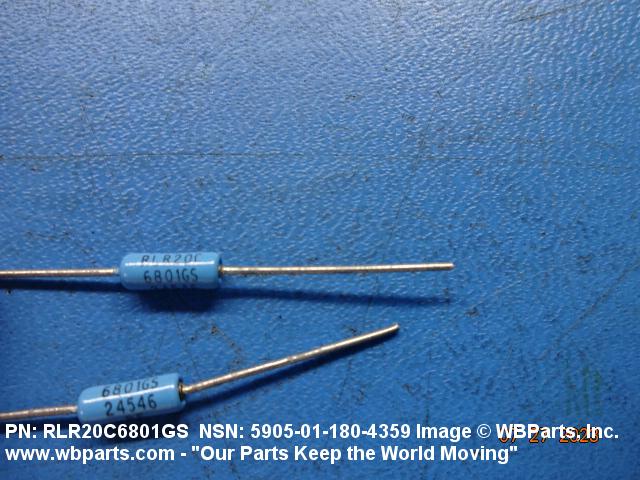

5905-01-180-4359 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: M22684/02-0137, M22684020137, M22684061138, M22684-06-1138, M39017021091, M39017-02-1091, CF126801J, CF1-2-6801J, MILR226846, MILR22684-6, MIL-R-39017/2, MILR390172, MILR39017-2, PC6664198, PC-66641-98, RL20S682JTX, RLR20C6801GM, RLR20C6801GP, RLR20C6801GR, RLR20C6801GS, RLR20C682GM, RLR20C682GR, RLR20C682JM, RLR20C682JR, 24552106, 24552-106, 5905-01-180-4359, 01-180-4359, 5905011804359, 011804359
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 MAY 1984 | 01-180-4359 | 05311 ( RESISTOR, FIXED, FILM ) |

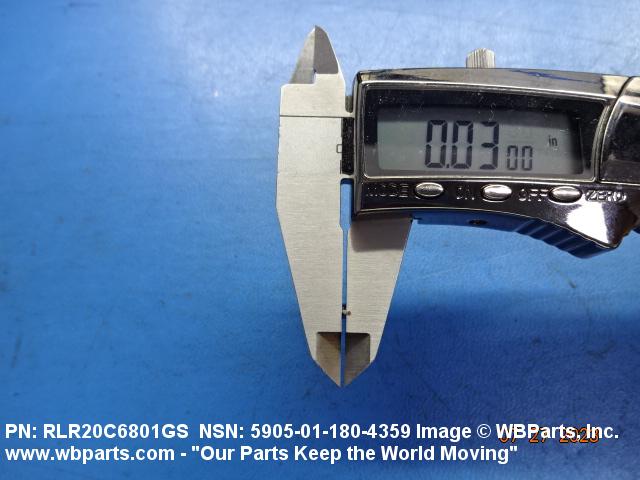

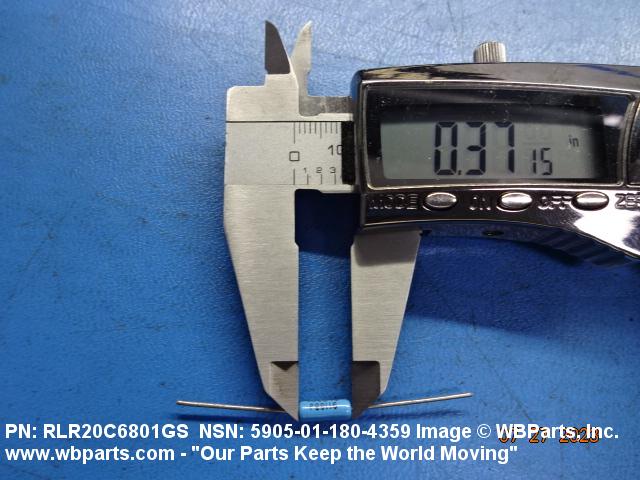

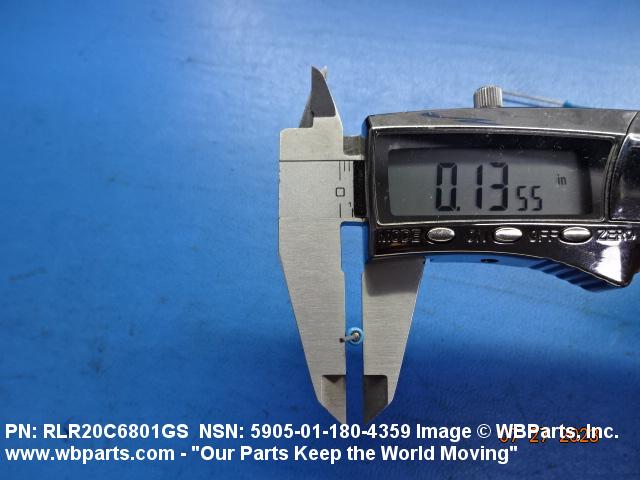

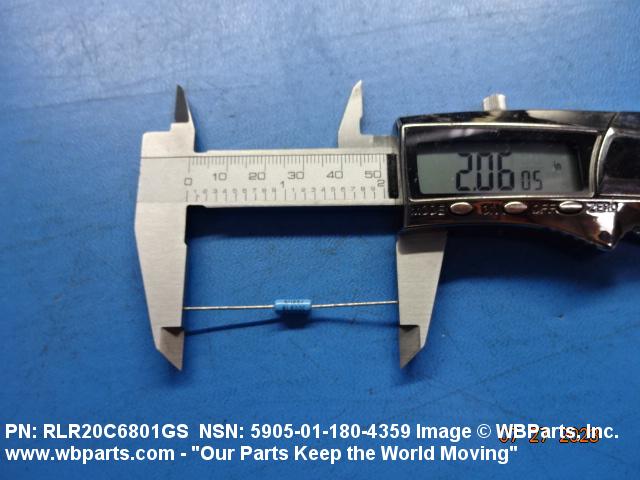

Drawings & Photos | NSN 5905-01-180-4359
Demand History | NSN 5905-01-180-4359
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-180-4359 | 2023-11-334 | 1 | United States |
| 5905-01-180-4359 | 2023-11-307 | 3 | United States |
| 5905-01-180-4359 | 2023-07-202 | 2 | United States |
| 5905-01-180-4359 | 2023-07-199 | 2 | United States |
| 5905-01-180-4359 | 2023-01-26 | 1520 | DIBBS |
| 5905-01-180-4359 | 2022-09-262 | 12 | United States |
| 5905-01-180-4359 | 2022-09-262 | 12 | United States |
| 5905-01-180-4359 | 2020-02-41 | 5 | us |
| 5905-01-180-4359 | 2019-11-328 | 1594 | DIBBS |
| 5905-01-180-4359 | 2018-07-200 | 973 | DIBBS |
| 5905-01-180-4359 | 2017-11-334 | 3 | United States |
| 5905-01-180-4359 | 2017-11-316 | 456 | DIBBS |
| 5905-01-180-4359 | 2017-03-79 | 8 | United States |
| 5905-01-180-4359 | 2016-10-305 | 4 | US |
| 5905-01-180-4359 | 2016-08-221 | 2 | United States |
| 5905-01-180-4359 | 2016-08-221 | 10 | United States |
| 5905-01-180-4359 | 2016-08-221 | 15 | United States |
| 5905-01-180-4359 | 2016-08-221 | 20 | United States |
| 5905-01-180-4359 | 2014-09-251 | 2 | United States |
| 5905-01-180-4359 | 2013-12-345 | 420 | DIBBS |
| 5905-01-180-4359 | 2012-02-40 | 182 | DIBBS |
| MILR390172 | 2011-02-33 | 500 | United States |
Cross Reference | NSN 5905-01-180-4359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24552-106 | 51190 | AEROFLEX WICHITA, INC. DBA IFR SYSTEMS |
| CF1-2-6801J | 09021 | AIRCO INC AIRCO ELECTRONICS |
| M22684-06-1138 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M22684/02-0137 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39017-02-1091 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-39017/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-39017/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR22684-6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR39017-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| PC-66641-98 | U2248 | SELEX ES LTD |
| RL20S682JTX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C6801GM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C6801GP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C6801GR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C6801GS | 3T666 | FUTURE ELECTRONICS CORP. |
| RLR20C6801GS | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C682GM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C682GR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C682JM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RLR20C682JR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
