Product Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-01-167-8138 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Part Alternates: M39002/01-0046, M39002010046, MIL-R-39002/1, MILR390021, RK09SACS352, 5905-01-167-8138, 01-167-8138, 5905011678138, 011678138
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 DEC 1983 | 01-167-8138 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |

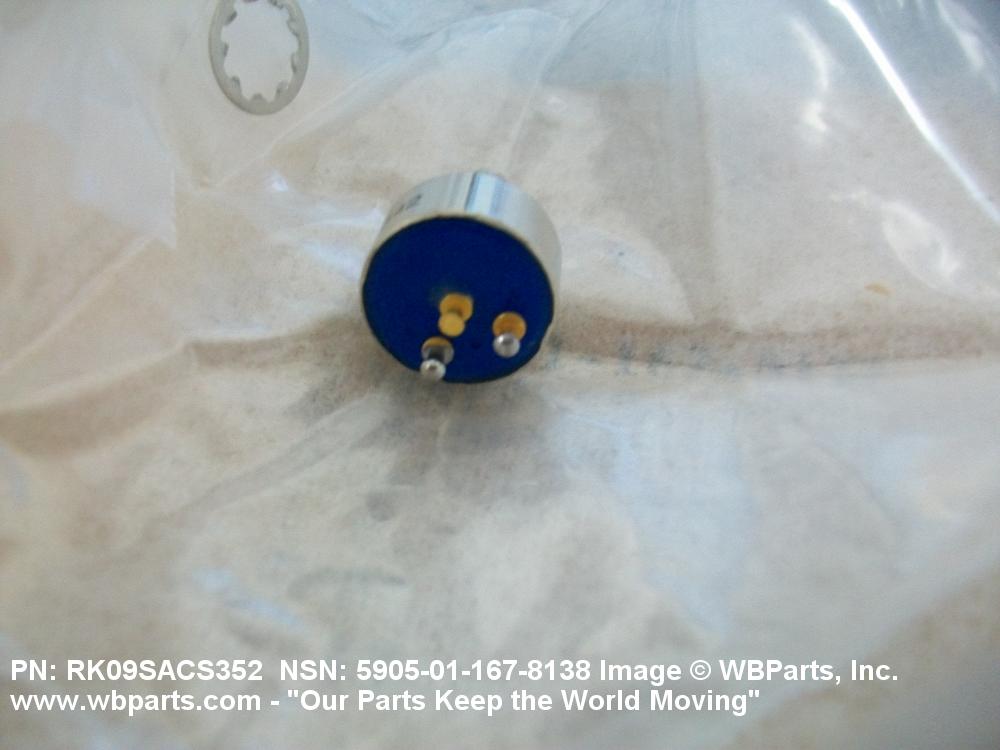

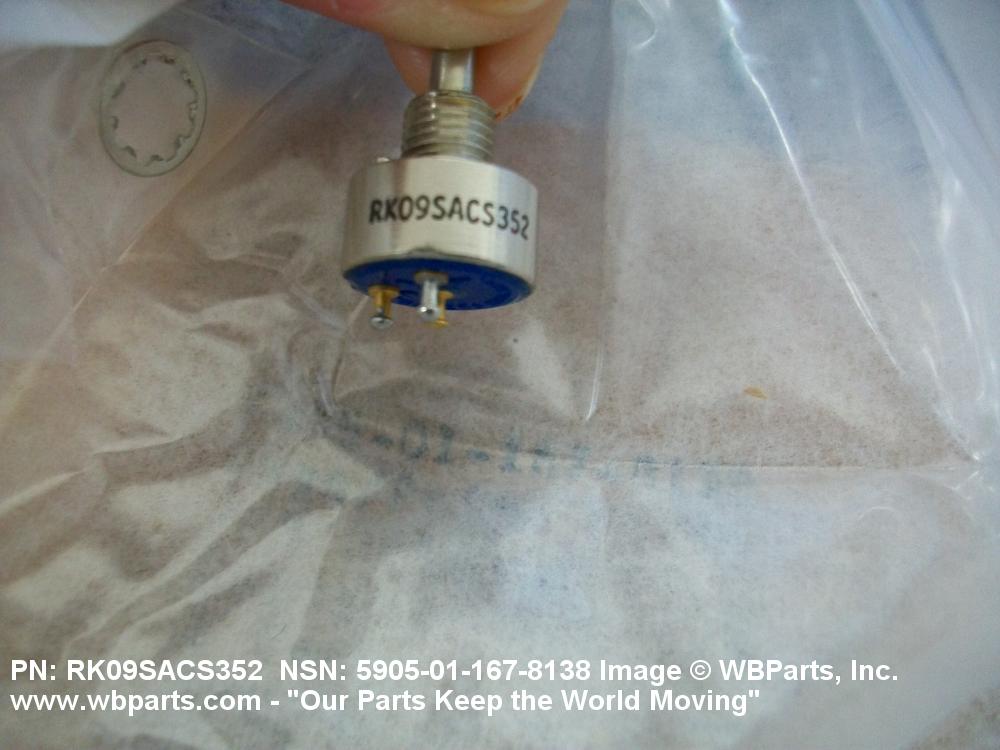

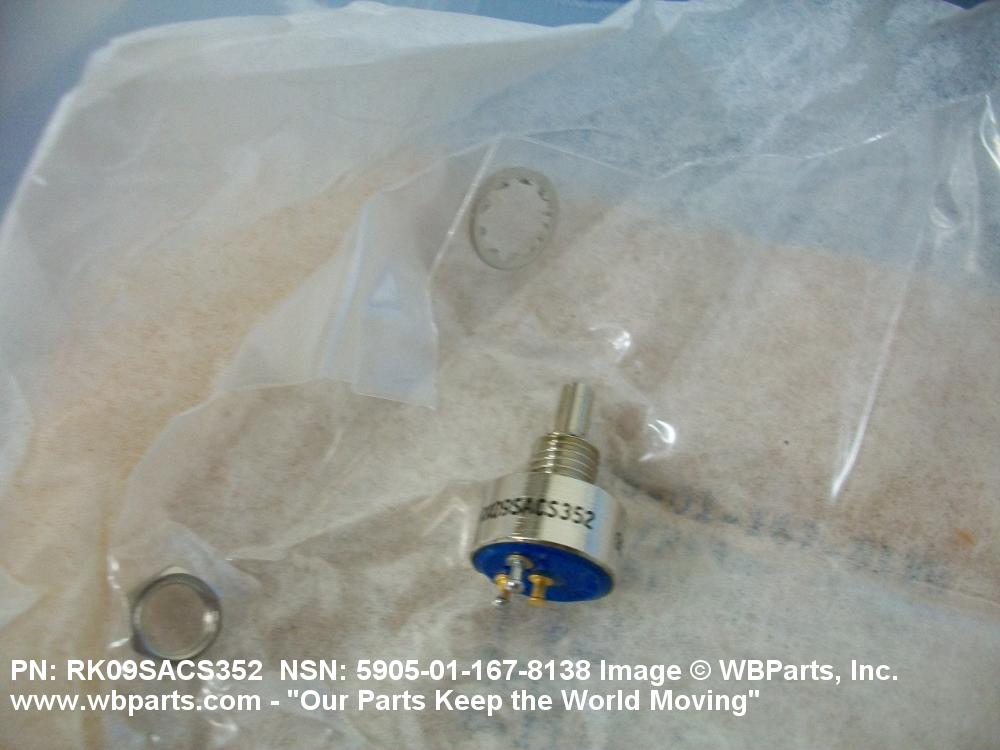

Drawings & Photos | NSN 5905-01-167-8138
Demand History | NSN 5905-01-167-8138
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-167-8138 | 2013-05-128 | 3 | DIBBS |
| M39002010046 | 2011-08-220 | 3 | United States |
| MILR390021 | 2006-02-54 | 83 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-167-8138
Related Products | NSN 5905-01-167-8138
Technical Data | NSN 5905-01-167-8138
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 3.5 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO 5.0 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 6.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 6.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -200.0 TO 200.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 85.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 135.0 SINGLE SECTION |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BODY LENGTH | 0.650 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.250 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.500 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 300.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 300.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 6 OCLOCK |
| NONTURN DEVICE RADIUS | 0.187 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.250 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 81349-MIL-R-39002 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-39002/1 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-39002/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39002/01-0046 |
