Product Details | FILM FIXED RESISTOR

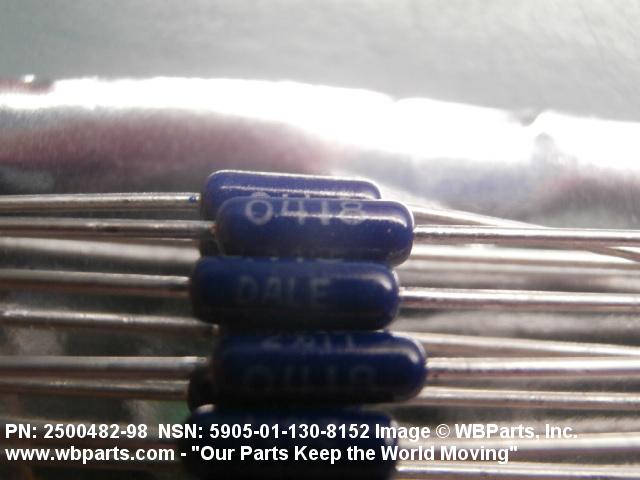

5905-01-130-8152 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.

Part Alternates: GE101005G, GE10-1005G, 2500482-98, 5905-01-130-8152, 01-130-8152, 5905011308152, 250048298, 011308152

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 28 APR 1982 01-130-8152

Drawings & Photos | NSN 5905-01-130-8152


Demand History | NSN 5905-01-130-8152

Part Number Request Date QTY Origin
2500482-98 2024-09-256 15 DIBBS
2500482-98 2023-05-143 511 DIBBS
2500482-98 2023-03-73 511 DIBBS
2500482-98 2023-02-43 511 DIBBS
2500482-98 2022-10-291 511 DIBBS
2500482-98 2022-08-228 511 DIBBS
2500482-98 2021-06-172 511 DIBBS
2500482-98 2021-06-159 511 DIBBS
2500482-98 2021-05-147 2 DIBBS
250048298 2014-01-30 50 Australia
250048298 2014-01-30 50 Australia

Cross Reference | NSN 5905-01-130-8152

Part Number Cage Code Manufacturer
2500482-98 07187 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
GE10-1005G 80031 MEPCO/ELECTRA INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5905-01-130-8152

Technical Data | NSN 5905-01-130-8152

Characteristic Specifications
ELECTRICAL RESISTANCE 10.000 MEGOHMS
RESISTANCE TOLERANCE IN PERCENT -2.000 TO 2.000
POWER DISSIPATION RATING IN WATTS 0.125 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER 125.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 150.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS -200.0 TO 200.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS -65.0 TO 150.0
INCLOSURE METHOD ENCAPSULATED
STYLE DESIGNATOR 14 AXIAL TERMINAL EACH END
BODY DIAMETER 0.100 INCHES MAXIMUM
BODY LENGTH 0.281 INCHES MAXIMUM
TERMINAL TYPE WIRE LEAD
RELIABILITY INDICATOR NOT ESTABLISHED
TERMINAL LENGTH 1.500 INCHES NOMINAL
III UNPACKAGED UNIT WEIGHT 0.300 GRAMS
(NON-CORE DATA) CUBIC MEASURE 0.002 CUBIC INCHES
