Product Details | FILM FIXED RESISTOR
5905-01-130-7914 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: 5905-01-130-7914, 01-130-7914, 5905011307914, 011307914
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-130-7914 | 05311 ( RESISTOR, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-130-7914
Cross Reference | NSN 5905-01-130-7914
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-R-55182/9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RNC90Y7K5000BP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RNC90Y7K5000BR | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| S102-75000HMP0RM | 18612 | VISHAY INTERTECHNOLOGY, INC. DBA VISHAY AMERICAS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-130-7914
Technical Data | NSN 5905-01-130-7914
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 7.500 KILOHMS |
| RESISTANCE TOLERANCE IN PERCENT | -0.100 TO 0.100 |
| POWER DISSIPATION RATING IN WATTS | 0.300 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 125.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 175.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -5.0 TO 5.0 -10.0 TO 10.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 125.0 125.0 TO 175.0 |
| INCLOSURE METHOD | ENCAPSULATED |

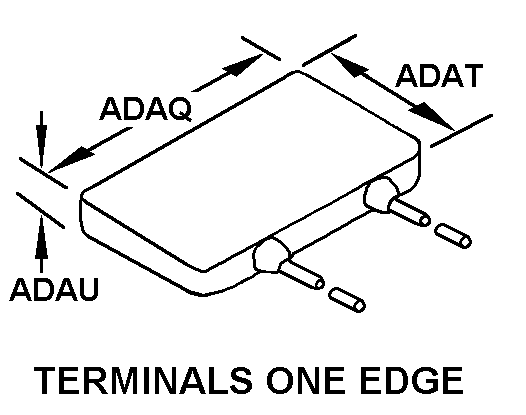

| STYLE DESIGNATOR | 142 TERMINALS ONE EDGE |
| BODY LENGTH | 0.310 INCHES NOMINAL |
| BODY WIDTH | 0.320 INCHES NOMINAL |
| BODY HEIGHT | 0.110 INCHES NOMINAL |
| TERMINAL TYPE | WIRE LEAD |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.100 |
| TERMINAL LENGTH | 1.905 INCHES MAXIMUM |
| TEST DATA DOCUMENT | 81349-MIL-R-55182 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-55182/9 GOVERNMENT SPECIFICATION |
| III UNPACKAGED UNIT WEIGHT | 1.000 GRAMS |
| (NON-CORE DATA) CUBIC MEASURE | 0.011 CUBIC INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-55182/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RNC90Y7K5000BP |
