Product Details | FILM FIXED RESISTOR NETWORK

5905-01-082-0863 An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED.

Part Alternates: MSP10A01682G, MSP10A01-682G, 750-101-R6.8K, 750101R68K, 18100344, 1810-0344, 210A682, 256CK682X2PD, 4310R101682, 4310R-101-682, 4770000016, 4770-00-0016, 5905-01-082-0863, 01-082-0863, 5905010820863, 010820863

Electrical and Electronic Equipment Components | Resistors

Supply Group (FSG) NSN Assign. NIIN
59 01-082-0863

Drawings & Photos | NSN 5905-01-082-0863


Cross Reference | NSN 5905-01-082-0863

Part Number Cage Code Manufacturer
1810-0344 1LQK8 KEYSIGHT TECHNOLOGIES, INC.
1810-0344 28480 HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
210A682 01121 ROCKWELL AUTOMATION, INC.
256CK682X2PD 56289 SPRAGUE ELECTRIC CO WORLD HQS
4310R-101-682 80294 BOURNS INSTRUMENTS INC
4770-00-0016 23338 WAVETEK U S INC DIV OF WAVETEK CORP
750-101-R6.8K 11236 CTS CORP BERNE DIV THICK FILM PRODUCTS GROUP
M8340109K6801GC 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-83401/9 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MSP10A01-682G 91637 VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5905-01-082-0863

Technical Data | NSN 5905-01-082-0863

Characteristic Specifications
ELECTRICAL RESISTANCE 6.800 KILOHMS
IDENTICAL VALUE RESISTOR QUANTITY 9 EACH RESISTOR
RESISTANCE TOLERANCE IN PERCENT -2.000 TO 2.000
POWER DISSIPATION RATING IN WATTS 1.250 TOTAL NETWORK
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER 25.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER 150.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS -250.0 TO 250.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS -55.0 TO 125.0

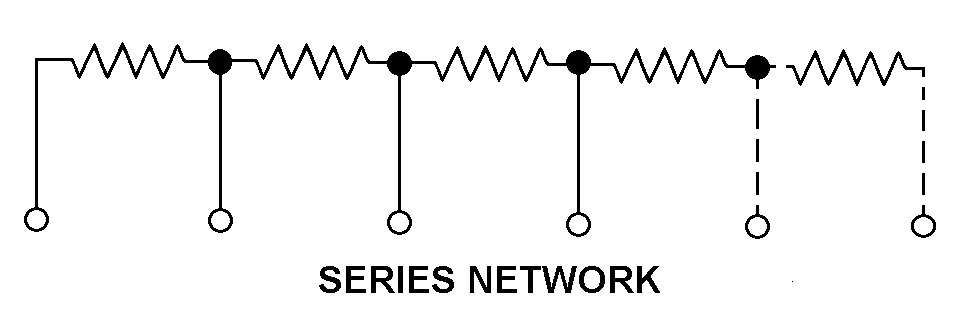

SCHEMATIC DIAGRAM DESIGNATOR 6 SERIES NETWORK
INCLOSURE METHOD ENCAPSULATED
STYLE DESIGNATOR 218 SINGLE INLINE
BODY LENGTH 0.995 INCHES MAXIMUM
BODY WIDTH 0.080 INCHES NOMINAL
BODY HEIGHT 0.190 INCHES MAXIMUM
TERMINAL TYPE PIN
TERMINAL QUANTITY 10
RELIABILITY INDICATOR NOT ESTABLISHED
TERMINAL LENGTH 0.125 INCHES NOMINAL
