Product Details | FILM FIXED RESISTOR
5905-01-014-0697 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: 10280509, 5905-01-014-0697, 01-014-0697, 5905010140697, 010140697
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 1975 | 01-014-0697 | 05311 ( RESISTOR, FIXED, FILM ) |
Drawings & Photos | NSN 5905-01-014-0697
Cross Reference | NSN 5905-01-014-0697
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10280509 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-014-0697
Related Products | NSN 5905-01-014-0697
Technical Data | NSN 5905-01-014-0697
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 100.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -1.000 TO 1.000 |
| POWER DISSIPATION RATING IN WATTS | 0.100 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 46.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 125.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -150.0 TO 150.0 |
| INCLOSURE METHOD | ENCAPSULATED |

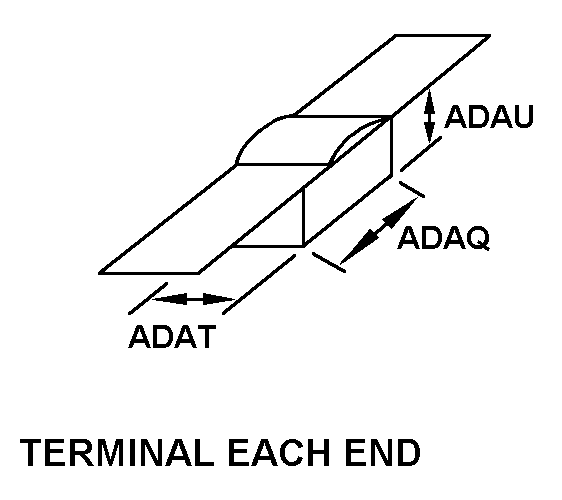

| STYLE DESIGNATOR | 194 TERMINAL EACH END |
| BODY LENGTH | 0.150 INCHES NOMINAL |
| BODY WIDTH | 0.075 INCHES NOMINAL |
| BODY HEIGHT | 0.120 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 10280509 |
