NSN 5905-00-485-8830 MD375076032FG50OHMPORM1PCT, MD375-076-032FG50OHMPORM1PCT, MD37507632FG50OHMPORM1PCT
Product Details | FILM FIXED RESISTOR
5905-00-485-8830 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors.
Part Alternates: MD375076032FG50OHMPORM1PCT, MD375-076-032FG50OHMPORM1PCT, MD37507632FG50OHMPORM1PCT, MD375-076-32FG50OHMPORM1PCT, DRM37750, DRM37-7-50, FD37507650, FD375-076-50, 0029581, 002958-1, 75D37550OHMPORM1PCT, 5905-00-485-8830, 00-485-8830, 5905004858830, 004858830
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 JUN 1969 | 00-485-8830 | 05311 ( RESISTOR, FIXED, FILM ) |
Drawings & Photos | NSN 5905-00-485-8830
Cross Reference | NSN 5905-00-485-8830
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 002958-1 | 19156 | MOOG INC. |
| 75D37550OHMPORM1PCT | 64537 | AEROFLEX CONTROL COMPONENTS, INC. DBA AEROFLEX / KDI |
| DRM37-7-50 | 24602 | SMITHS INTERCONNECT MICROWAVE COMPONENTS, INC. |
| FD375-076-50 | 21845 | SOLITRON DEVICES, INC. |
| MD375-076-032FG50OHMPORM1PCT | 95077 | SV MICROWAVE, INC DIV SV MICROWAVE |
| MD375-076-32FG50OHMPORM1PCT | 95077 | SV MICROWAVE, INC DIV SV MICROWAVE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-485-8830
Technical Data | NSN 5905-00-485-8830
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 50.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -1.000 TO 1.000 |
| POWER DISSIPATION RATING IN WATTS | 0.500 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 80.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 150.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -150.0 TO 150.0 |
| INCLOSURE METHOD | ENCAPSULATED |

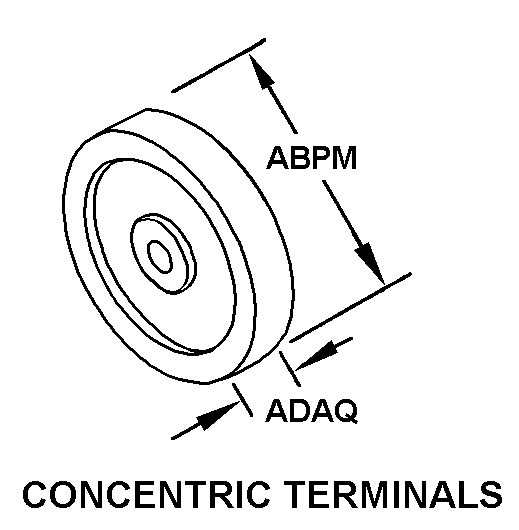

| STYLE DESIGNATOR | 85 CONCENTRIC TERMINALS |
| BODY DIAMETER | 0.375 INCHES NOMINAL |
| BODY LENGTH | 0.032 INCHES NOMINAL |
| TERMINAL TYPE | TERMINAL TYPE PER BODY STYLE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5905-00-485-8830
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
