Product Details | WIRE WOUND FIXED RESISTOR
5905-00-325-7802 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: MILR15109, 14-305-783-00-508, 14305783508, 14-305-783-508, 5905-00-325-7802, 00-325-7802, 1430578300508, 5905003257802, 003257802
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-325-7802 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Drawings & Photos | NSN 5905-00-325-7802
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-325-7802
Technical Data | NSN 5905-00-325-7802
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 3.700 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
| POWER DISSIPATION RATING IN WATTS | 860.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 50.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 425.0 |
| INCLOSURE METHOD | UNINCLOSED |

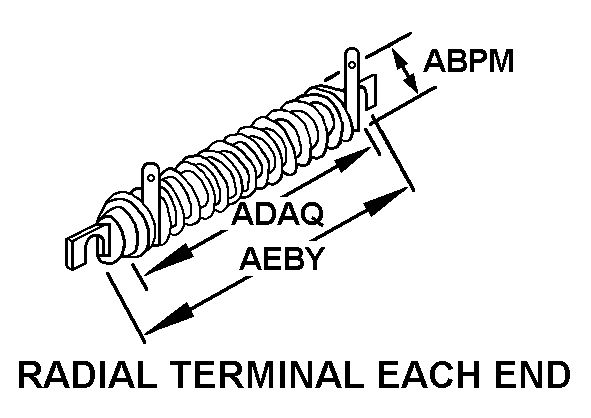

| STYLE DESIGNATOR | 151 RADIAL TERMINAL EACH END |
| BODY DIAMETER | 2.000 INCHES NOMINAL |
| BODY LENGTH | 17.125 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | ANY ACCEPTABLE |
| MOUNTING HOLE SIZE | ANY ACCEPTABLE |
| TERMINAL TYPE | TAB W/SCREW |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
| TERMINAL LENGTH | 1.125 INCHES NOMINAL |
| TERMINAL WIDTH | 0.225 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR15109 |
