NSN 5905-00-325-8285 K48248100, K48248-100, PQ3-1/16-WFC-264-P2
Product Details | NONINDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-325-8285 INC 37404 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The items must have inherent characteristics of inducing little or no self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, INDUCTIVE.
Part Alternates: K48248100, K48248-100, PQ3-1/16-WFC-264-P2, PQ3116WFC264P2, 885C986P0001, 885C986P1, 5905-00-325-8285, 00-325-8285, 5905003258285, 003258285
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 NOV 1973 | 00-325-8285 | 37404 ( RESISTOR, FIXED, WIRE WOUND, NONINDUCTIVE ) |
Drawings & Photos | NSN 5905-00-325-8285
Demand History | NSN 5905-00-325-8285
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-325-8285 | 2011-07-202 | 2 | DIBBS |
Cross Reference | NSN 5905-00-325-8285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 885C986P0001 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| 885C986P1 | 56637 | RCD COMPONENTS, INC. |
| 885C986P1 | 99971 | LOCKHEED MARTIN CORP NAVAL ELECTRONICS & SURVEILLANCE |
| K48248-100 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
| PQ3-1/16-WFC-264-P2 | 16119 | GAMBLE CHARLES T INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-325-8285
Technical Data | NSN 5905-00-325-8285
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 100.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -2.000 TO 2.000 |
| POWER DISSIPATION RATING IN WATTS | 25.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 350.0 |
| TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS | -260.0 TO 260.0 |
| TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS | -55.0 TO 350.0 |
| INCLOSURE METHOD | ENCASED |

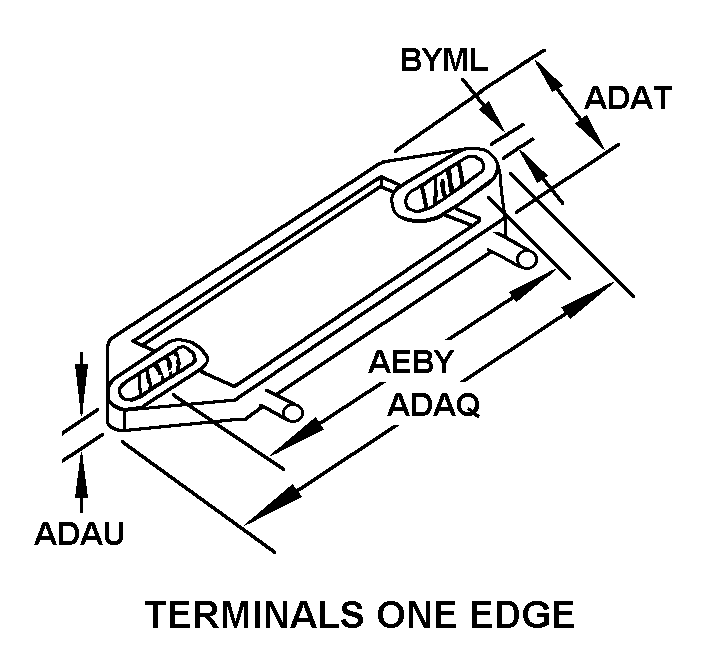

| STYLE DESIGNATOR | 16 TERMINALS ONE EDGE |
| BODY LENGTH | 3.062 INCHES NOMINAL |
| BODY WIDTH | 1.219 INCHES NOMINAL |
| BODY HEIGHT | 0.500 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.312 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.178 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.500 INCHES NOMINAL |
| TERMINAL WIDTH | 0.219 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-325-8285
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-325-8285
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
