NSN 5905-00-272-7889 891SP201J, 00-272-7889, 002727889
Product Details | COMPOSITION FIXED RESISTOR
5905-00-272-7889 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: 891SP201J, 5905-00-272-7889, 00-272-7889, 5905002727889, 002727889
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 JUL 1973 | 00-272-7889 | 00126 ( RESISTOR, FIXED, COMPOSITION ) |
Drawings & Photos | NSN 5905-00-272-7889
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-272-7889
Technical Data | NSN 5905-00-272-7889
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 200.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 500.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 350.0 |
| INCLOSURE METHOD | ENCAPSULATED |

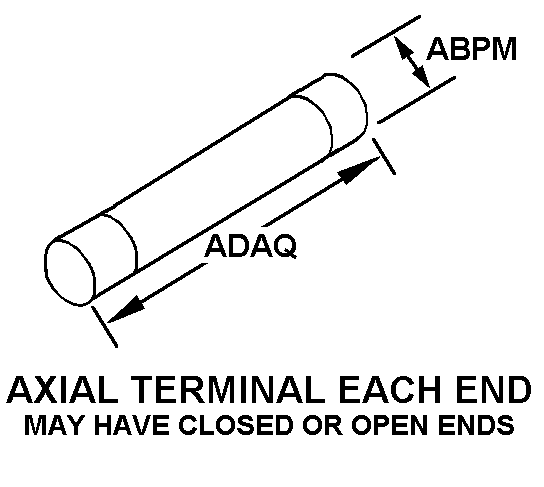

| STYLE DESIGNATOR | 29 AXIAL TERMINAL EACH END |
| BODY DIAMETER | 2.000 INCHES NOMINAL |
| BODY LENGTH | 16.000 INCHES NOMINAL |
| TERMINAL TYPE | FERRULE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 1.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-272-7889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
