NSN 5905-00-272-7933 A11336382A22CN3, A113-36382A22CN3, AS13S5860ITEM13E
Product Details | INDUCTIVE WIRE WOUND FIXED RESISTOR
5905-00-272-7933 INC 37403 REINSTATED ON 010303~A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE.
Part Alternates: A11336382A22CN3, A113-36382A22CN3, AS13S5860ITEM13E, AS13S58-60ITEM13E, N57125ITEM13E, N58244ITEM13E, N61910ITEM13B, N76123ITEM11A, S6100411137ITEM11A, S6100-411137ITEM11A, 17Y837ITEM13E, 5W775ITEM13B, 5905-00-272-7933, 00-272-7933, 5905002727933, 002727933
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-272-7933 | 37403 ( RESISTOR, FIXED, WIRE WOUND, INDUCTIVE ) |
Drawings & Photos | NSN 5905-00-272-7933
Cross Reference | NSN 5905-00-272-7933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17Y837ITEM13E | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5W775ITEM13B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| A113-36382A22CN3 | 61809 | JOSLYN CLARK CONTROLS INC |
| A113-36382A22CN3 | 65788 | CHALLENGER ELECTRICAL EQUIPMENT CORP INDUSTRIAL PRODUCTS OPERATION |
| AS13S58-60ITEM13E | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| N57125ITEM13E | 61809 | JOSLYN CLARK CONTROLS INC |
| N57125ITEM13E | 65788 | CHALLENGER ELECTRICAL EQUIPMENT CORP INDUSTRIAL PRODUCTS OPERATION |
| N58244ITEM13E | 61809 | JOSLYN CLARK CONTROLS INC |
| N58244ITEM13E | 65788 | CHALLENGER ELECTRICAL EQUIPMENT CORP INDUSTRIAL PRODUCTS OPERATION |
| N61910ITEM13B | 61809 | JOSLYN CLARK CONTROLS INC |
| N61910ITEM13B | 65788 | CHALLENGER ELECTRICAL EQUIPMENT CORP INDUSTRIAL PRODUCTS OPERATION |
| N76123ITEM11A | 61809 | JOSLYN CLARK CONTROLS INC |
| N76123ITEM11A | 65788 | CHALLENGER ELECTRICAL EQUIPMENT CORP INDUSTRIAL PRODUCTS OPERATION |
| S6100-411137ITEM11A | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-272-7933
Technical Data | NSN 5905-00-272-7933
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 9.420 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | -5.000 TO 5.000 |
| POWER DISSIPATION RATING IN WATTS | 339.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 50.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 425.0 |
| INCLOSURE METHOD | UNINCLOSED |

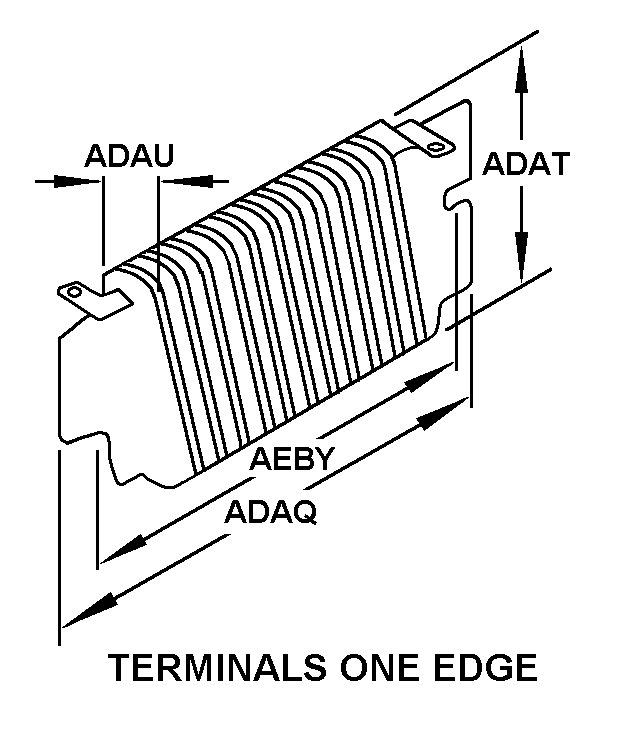

| STYLE DESIGNATOR | 35 TERMINALS ONE EDGE |
| BODY LENGTH | 10.250 INCHES NOMINAL |
| BODY WIDTH | 2.875 INCHES NOMINAL |
| BODY HEIGHT | 0.625 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 9.500 INCHES NOMINAL |
| TERMINAL TYPE | TERMINAL TYPE PER BODY STYLE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| NONDEFINITIVE SPEC/STD DATA | EW FORM |
Restrictions/Controls & Freight Information | NSN 5905-00-272-7933
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062800 | RADIO/TV RECEIVING SET CHASSIS ETC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-272-7933
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
