NSN 5905-00-077-5715 51351, 00-077-5715, 000775715
Product Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-077-5715 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Part Alternates: 51351, 5905-00-077-5715, 00-077-5715, 5905000775715, 000775715
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 AUG 1967 | 00-077-5715 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
Drawings & Photos | NSN 5905-00-077-5715
Cross Reference | NSN 5905-00-077-5715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51351 | 82340 | EDO CORPORATION DIV DEFENSE SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-077-5715
Technical Data | NSN 5905-00-077-5715
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| ELECTRICAL RESISTANCE PER SECTION | 5.000 KILOHMS 1ST SECTION 5.000 KILOHMS 2ND SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -3.0 TO 3.0 ALL SECTIONS |
| FUNCTION CONFORMITY PER SECTION | ALL SECTIONS INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | ALL SECTIONS LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.10 TO 0.10 ALL SECTIONS |
| SHAFT BEARING TYPE | BALL |
| SHAFT END PLAY | 0.00100 INCHES |
| MAXIMUM STOP TORQUE | 100.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 0.50 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 0.40 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO 20.0 ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 3.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 20.0 1ST SECTION 20.0 2ND SECTION |
| BODY STYLE | 5B CYLINDRICAL SERVO MOUNTED |
| PILOT DIAMETER | 0.74950 INCHES MINIMUM AND 0.75000 INCHES MAXIMUM |
| PILOT LENGTH | 0.06200 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.781 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.05700 INCHES NOMINAL |
| BODY DIAMETER | 1.109 INCHES NOMINAL |
| BODY LENGTH | 3.063 INCHES NOMINAL |
| MOUNTING LIP DIAMETER | 0.86500 INCHES MINIMUM AND 0.88000 INCHES MAXIMUM |
| MOUNTING LIP DEPTH | 0.06200 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |

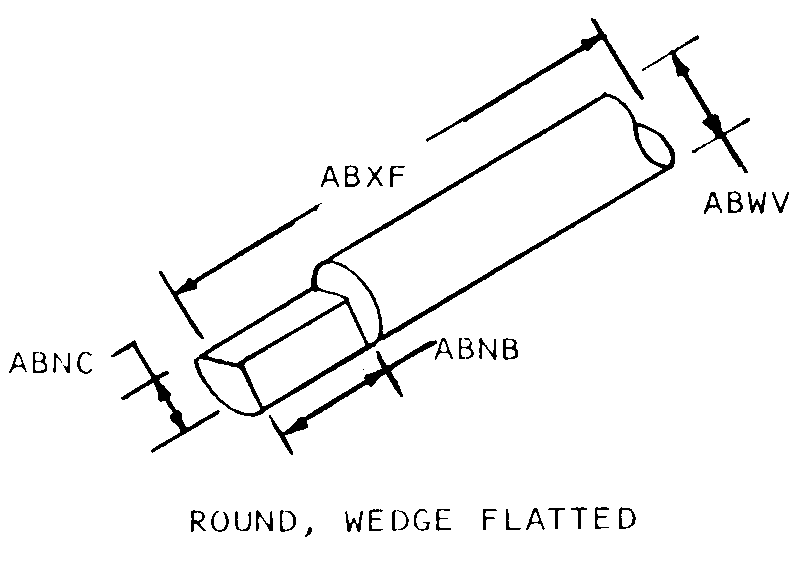

| SHAFT STYLE | 21C ROUND, WEDGE FLATTED |
| FIRST FLAT LENGTH | 0.375 INCHES NOMINAL |
| FLAT HEIGHT | 0.115 INCHES MINIMUM AND 0.117 INCHES MAXIMUM |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.563 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 3760.0 MINIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 3600.0 MINIMUM AND 3610.0 MAXIMUM |
| MOUNTING METHOD | CLAMP RING |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.172 INCHES NOMINAL |
| TERMINAL LOCATION | LONGITUDINALLY POSITIONED ON THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | AMBIENT TEMP 50 DEG C AT 2.5 WATTS BOTH SECTIONS |
| III OVERALL LENGTH | 3.688 INCHES NOMINAL |
| III OVERALL DIAMETER | 1.281 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-077-5715
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-077-5715
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
