NSN 5905-00-077-8499 IC9033A4D17AJ, 00-077-8499, 000778499
Product Details | WIRE WOUND FIXED RESISTOR
5905-00-077-8499 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Part Alternates: IC9033A4D17AJ, 5905-00-077-8499, 00-077-8499, 5905000778499, 000778499
Electrical and Electronic Equipment Components | Resistors
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-077-8499 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
Cross Reference | NSN 5905-00-077-8499
Part Number | Cage Code | Manufacturer |
---|---|---|
IC9033A4D17AJ | 24446 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-077-8499
Related Products | NSN 5905-00-077-8499
Technical Data | NSN 5905-00-077-8499
Characteristic | Specifications |
---|---|
ELECTRICAL RESISTANCE | 17.000 OHMS |
RESISTANCE TOLERANCE IN PERCENT | -10.000 TO 10.000 |
POWER DISSIPATION RATING IN WATTS | 600.000 FREE AIR |
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 375.0 |
INCLOSURE METHOD | ENCAPSULATED |

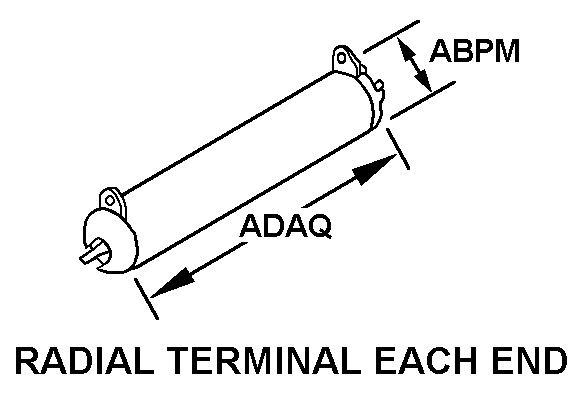

STYLE DESIGNATOR | 59 RADIAL TERMINAL EACH END |
BODY DIAMETER | 2.062 INCHES NOMINAL |
BODY LENGTH | 12.000 INCHES NOMINAL |
TERMINAL TYPE | TAB, SOLDER LUG |
RELIABILITY INDICATOR | NOT ESTABLISHED |
REACTANCE CHARACTERISTIC | INDUCTIVE |
TERMINAL LENGTH | 0.593 INCHES NOMINAL |
TERMINAL WIDTH | 0.750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5905-00-077-8499
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
