NSN 5895-01-481-5879 MD1551, MD-1551, SM1893
Product Details | FREQUENCY MIXER STAGE
5895-01-481-5879 An electronic device which mixes two or more input frequencies which are usually adjustable, combines them linearly in desired proportions to produce a common output signal which is a resultant of the input frequencies. Excludes items having integral oscillators. See also CONVERTER, FREQUENCY, ELECTRONIC and MIXER, CRYSTAL, WAVEGUIDE.20258950037Miscellaneous Communication Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: MD1551, MD-1551, SM1893, SM-1893, 9273263B, 927326-3B, 5895-01-481-5879, 01-481-5879, 5895014815879, 014815879
Communication, Detection, and Coherent Radiation Equipment | Miscellaneous Communication Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 16 JAN 2001 | 01-481-5879 | 00334 ( MIXER STAGE, FREQUENCY ) |

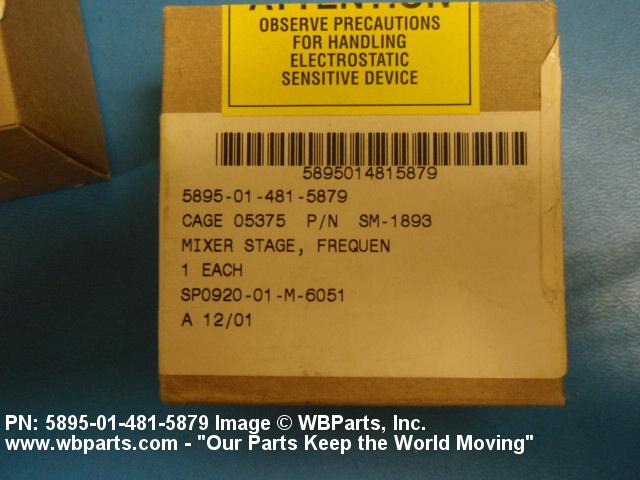

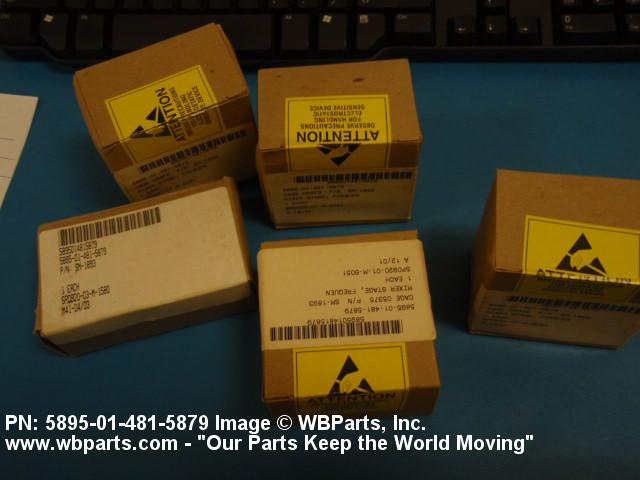

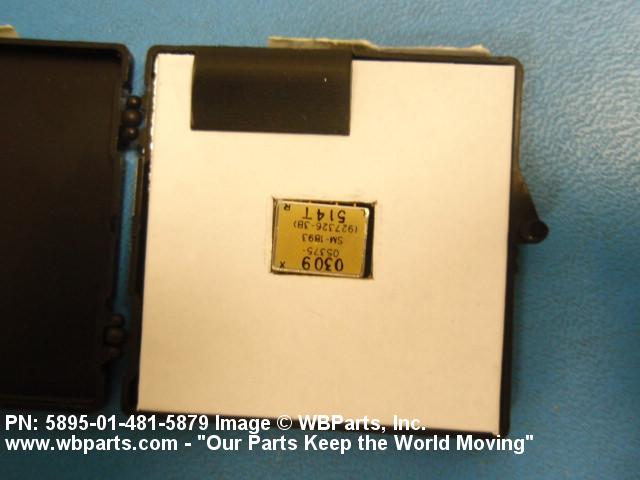

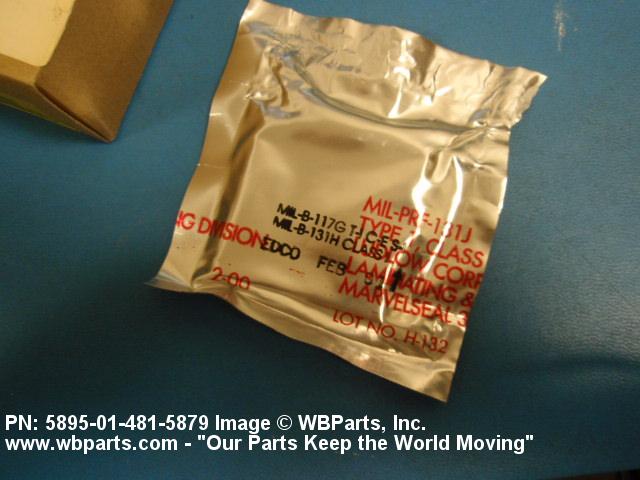

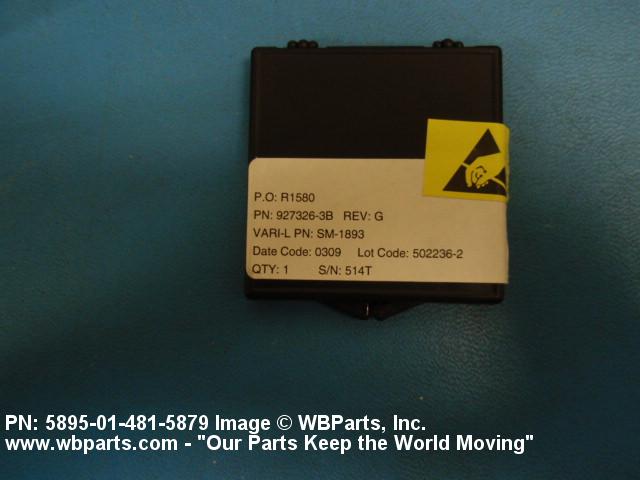

Drawings & Photos | NSN 5895-01-481-5879
Demand History | NSN 5895-01-481-5879
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MD-1551 | 2020-10-281 | 5 | DIBBS |
| SM-1893 | 2020-10-281 | 5 | DIBBS |
| MD-1551 | 2020-08-241 | 18 | DIBBS |
| SM-1893 | 2020-08-241 | 18 | DIBBS |
| MD-1551 | 2020-08-231 | 18 | DIBBS |
| SM-1893 | 2020-08-231 | 18 | DIBBS |
| MD-1551 | 2020-07-211 | 18 | DIBBS |
| SM-1893 | 2020-07-211 | 18 | DIBBS |
| MD-1551 | 2020-07-202 | 1 | DIBBS |
| SM-1893 | 2020-07-202 | 1 | DIBBS |
| MD-1551 | 2020-02-49 | 6 | DIBBS |
| SM-1893 | 2020-02-49 | 6 | DIBBS |
| MD-1551 | 2019-11-317 | 3 | DIBBS |
| SM-1893 | 2019-11-317 | 3 | DIBBS |
| MD-1551 | 2019-10-283 | 3 | DIBBS |
| SM-1893 | 2019-10-283 | 3 | DIBBS |
| MD-1551 | 2019-07-191 | 3 | DIBBS |
| SM-1893 | 2019-07-191 | 3 | DIBBS |
| MD-1551 | 2019-05-135 | 1 | DIBBS |
| SM-1893 | 2019-05-135 | 1 | DIBBS |
| MD-1551 | 2019-02-36 | 1 | DIBBS |
| SM-1893 | 2019-02-36 | 1 | DIBBS |
| 5895-01-481-5879 | 2018-12-338 | 1 | DIBBS |
| 5895-01-481-5879 | 2018-09-247 | 2 | DIBBS |
| 5895-01-481-5879 | 2018-07-185 | 2 | DIBBS |
| 5895-01-481-5879 | 2018-06-155 | 1 | DIBBS |
| 5895-01-481-5879 | 2018-04-120 | 2 | DIBBS |
| 5895-01-481-5879 | 2018-04-93 | 1 | DIBBS |
| 5895-01-481-5879 | 2018-02-59 | 2 | DIBBS |
| 5895-01-481-5879 | 2015-02-38 | 1 | DIBBS |
| 5895-01-481-5879 | 2012-07-198 | 4 | DIBBS |
| 5895-01-481-5879 | 2010-12-340 | 11 | DIBBS |
| 9273263B | 2010-11-333 | 10 | United States |
| 5895-01-481-5879 | 2010-11-326 | 10 | United States |
| 5895-01-481-5879 | 2010-11-323 | 11 | DIBBS |
| 5895-01-481-5879 | 2010-08-236 | 10 | DIBBS |
| 5895-01-481-5879 | 2009-10-296 | 8 | United States |
| 5895-01-481-5879 | 2009-10-296 | 11 | DIBBS |
| 5895-01-481-5879 | 2009-10-288 | 8 | DIBBS |
| 5895-01-481-5879 | 2009-08-237 | 3 | DIBBS |
| 5895-01-481-5879 | 2009-07-198 | 11 | DIBBS |
| 5895-01-481-5879 | 2009-06-161 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5895-01-481-5879
Related Products | NSN 5895-01-481-5879
Technical Data | NSN 5895-01-481-5879
| Characteristic | Specifications |
|---|---|
| CIRCUIT CONSTRUCTION TYPE | SOLID STATE |
| AVERAGE LIFE MEASUREMENT | NOT RATED |
| INCLOSURE TYPE | ENCASED |
| OVERALL LENGTH | 0.530 INCHES NOMINAL |
| OVERALL HEIGHT | 0.150 INCHES NOMINAL |
| OVERALL WIDTH | 0.405 INCHES NOMINAL |
| SPECIAL FEATURES | ENCASING IS NICU; HI TEMP 99 DEG C; WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III END ITEM IDENTIFICATION | WEAPON SYSTEM-AIRCRAFT, HORNET F/A-18 |
Restrictions/Controls & Freight Information | NSN 5895-01-481-5879
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5895-01-481-5879
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
